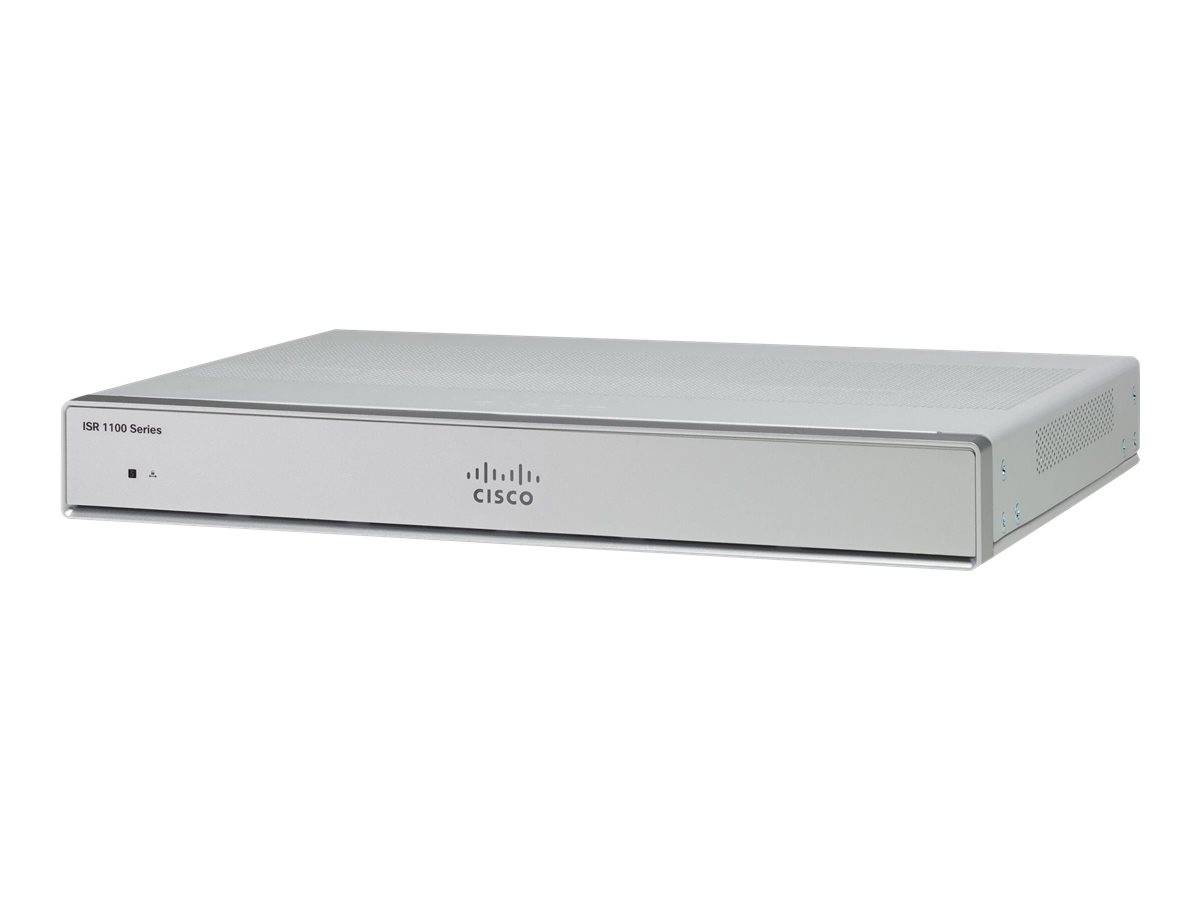

Cisco Integrated Services Router 1117 / Router / DSL modem / 4-port switch / GigE / WAN ports: 2 | C1117-4PM
Please sign in so that we can notify you about a reply
Product Features
- Lightweight, compact size with low power consumption
Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors. - High performance to run concurrent services
High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services. - Consistent, high application performance levels
The router can run multiple services simultaneously with minimal performance degradation. - Unified control of wired and wireless networks from a common console
Simplifies and centralizes configuration and management of wireless devices. Supports WLAN services without requiring a wireless LAN controller.
Special Features
- Lightweight, compact size with low power consumption
- High performance to run concurrent services
- Consistent, high application performance levels
- Unified control of wired and wireless networks from a common console
Product Specification
| Device Type | Router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Encryption throughput: 250 Mbps |
| Network / Transport Protocol | IPSec, PPPoE, DHCP, DNS, L2TPv3 |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP |
| Remote Management Protocol | SNMP, RMON, CLI, TR-069 |
| Encryption Algorithm | DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA |
| Authentication Method | RADIUS |
| Features | Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), 2T2R MIMO technology, NetFlow, Maximum Ratio Combining (MRC), IPFIX, cyclic shift diversity (CSD), Location ID Separation Protocol (LISP), packet aggregation A-MPDU, packet aggregation A-MSDU, Management Information Base (MIB) II, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM) |
| Compliant Standards | IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13 |
| RAM | 4 GB |
| Flash Memory | 4 GB |
| Status Indicators | Status |
| Communications | Communications |
| Type | DSL modem |
| Digital Signaling Protocol | ADSL2, VDSL2+ |
| Protocols & Specifications | ITU G.992.5 Annex M, ITU G.993.2, ITU G.992.3 Annex M |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP ¦ LAN: 2 x 1000Base-T - RJ-45 ¦ LAN: 1 x 1000Base-T (PoE+) - RJ-45 ¦ LAN: 1 x 1000Base-T (PoE) - RJ-45 ¦ USB 3.0: 1 x console ¦ WAN: 1 x VDSL2 / ADSL2+ |
| Power | Power |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 32.3 cm |
| Depth | 23 cm |
| Height | 4.2 cm |
| Weight | 2.59 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 65 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Cisco - C1117-4PM
More Details
Product Code
677NS91
EAN Code
0889728058933
Manufacturer
Cisco
