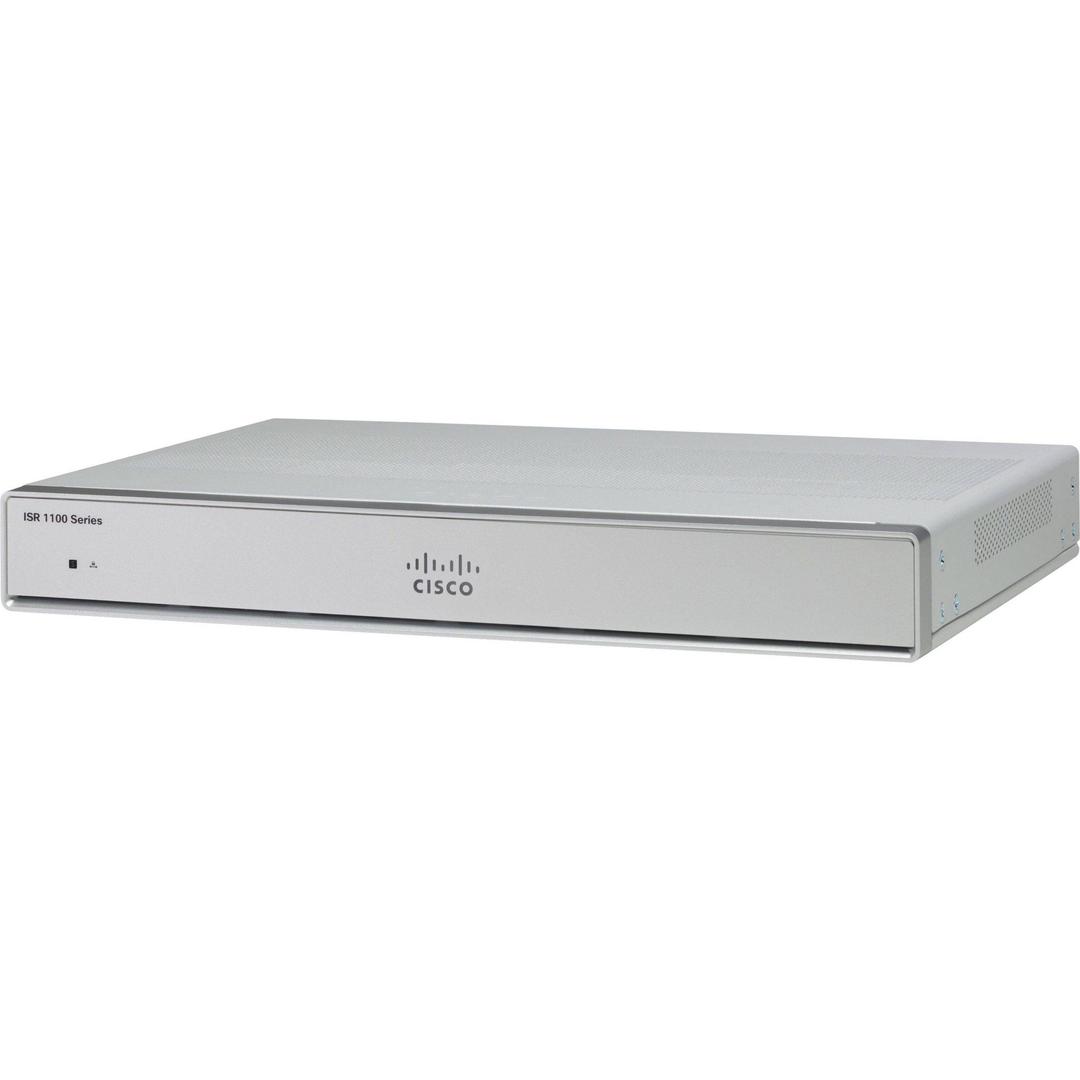

Cisco Integrated Services Router 1121X / Router / 8-port switch / GigE / WAN ports: 2 | C1121X-8PLTEP
Please sign in so that we can notify you about a reply
Product Features
- PORT COUNT
8-port managed Gigabit Ethernet switch (4 ports PoE-capable with 2 ports PoE+) - CONNECTIVITY
LTE Advanced (CAT6) with pluggable technology, Gigabit WAN and WAN/SFP combo ports with integrated USB 3.0 AUX/console - SECURITY
Multi-layer, robust security and high-performance VPNs encrypt all data from the WAN edge to the cloud - PERFORMANCE
Business router designed for broadband network speeds while running secure, concurrent data, voice, video and wireless services, with 4 GB of built-in Flash and DRAM memory - PEACE OF MIND
1-year limited hardware warranty with 10-day advanced replacement
Special Features
- Next-generation connectivity
- Intent-based networking
- Integrated enterprise-class security
- Easy management and deployment
Product Specification
| Device Type | Router - 8-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | IPSec, PPPoE, DHCP, DNS, L2TPv3 |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP |
| Remote Management Protocol | SNMP, RMON, CLI, TR-069 |
| Encryption Algorithm | DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA |
| Authentication Method | RADIUS |
| Features | Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), 2T2R MIMO technology, NetFlow, Maximum Ratio Combining (MRC), IPFIX, cyclic shift diversity (CSD), Location ID Separation Protocol (LISP), packet aggregation A-MPDU, packet aggregation A-MSDU, Management Information Base (MIB) II, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM) |
| Compliant Standards | IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13 |
| RAM | 8 GB |
| Flash Memory | 8 GB |
| Status Indicators | Status |
| Communications | Communications |
| Mobile Communication Protocol | LTE |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP ¦ LAN: 4 x 1000Base-T - RJ-45 ¦ LAN: 2 x 1000Base-T (PoE) - RJ-45 ¦ LAN: 2 x 1000Base-T (PoE+) - RJ-45 ¦ USB 3.0: 1 x console |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
