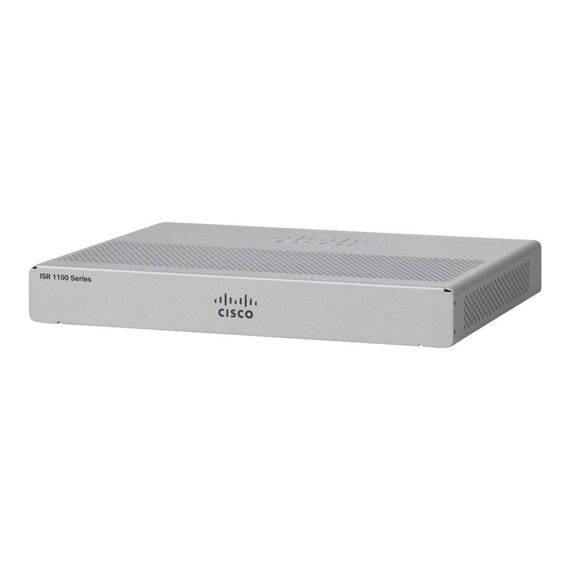

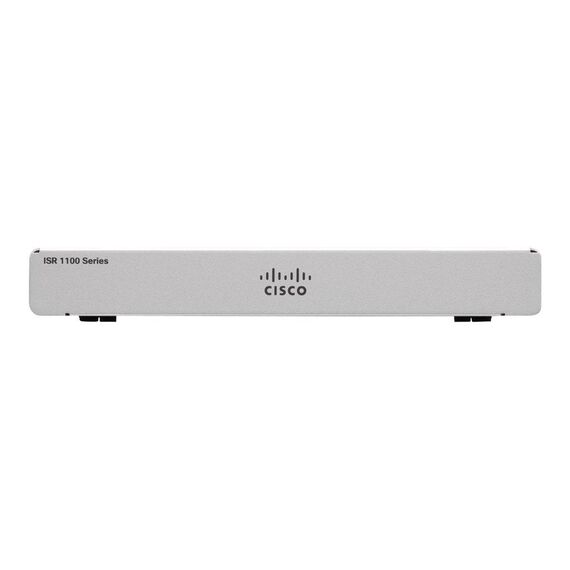

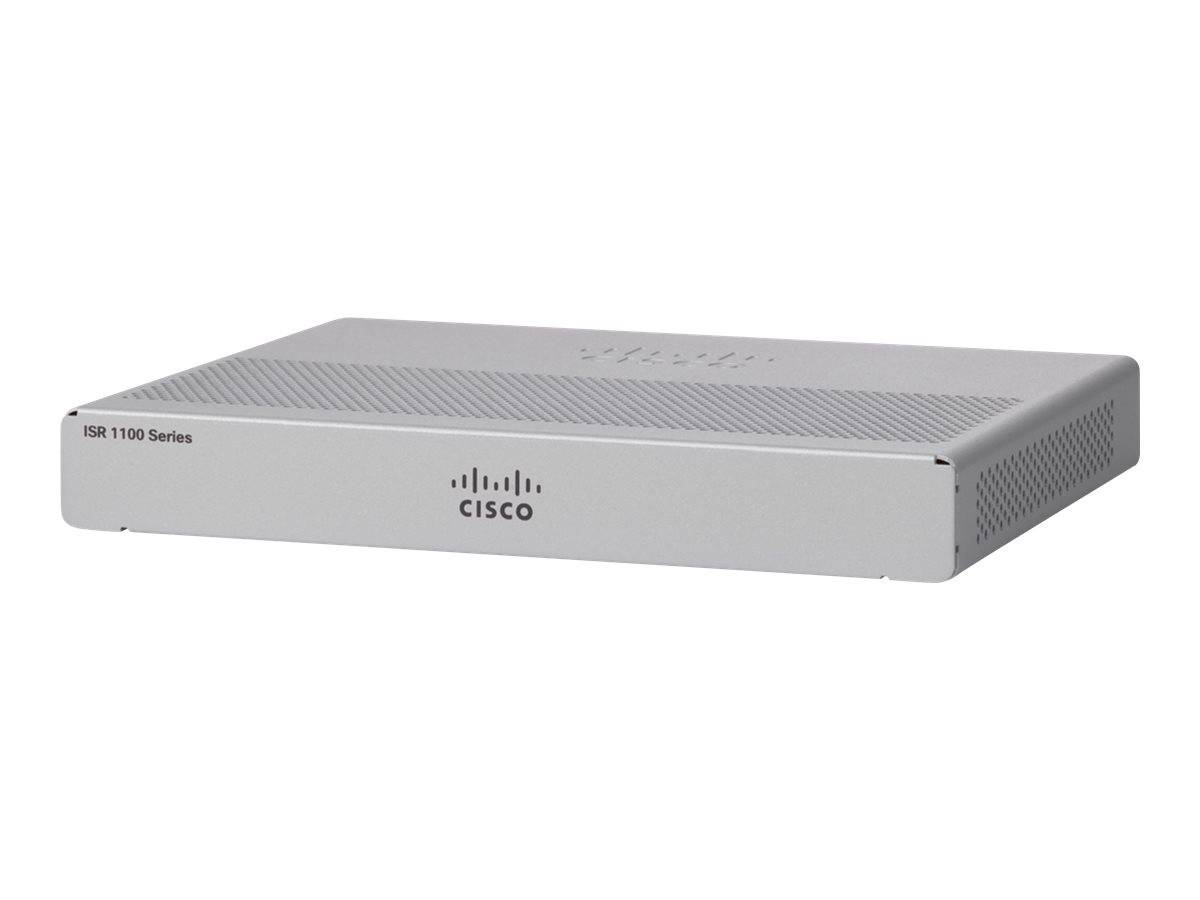

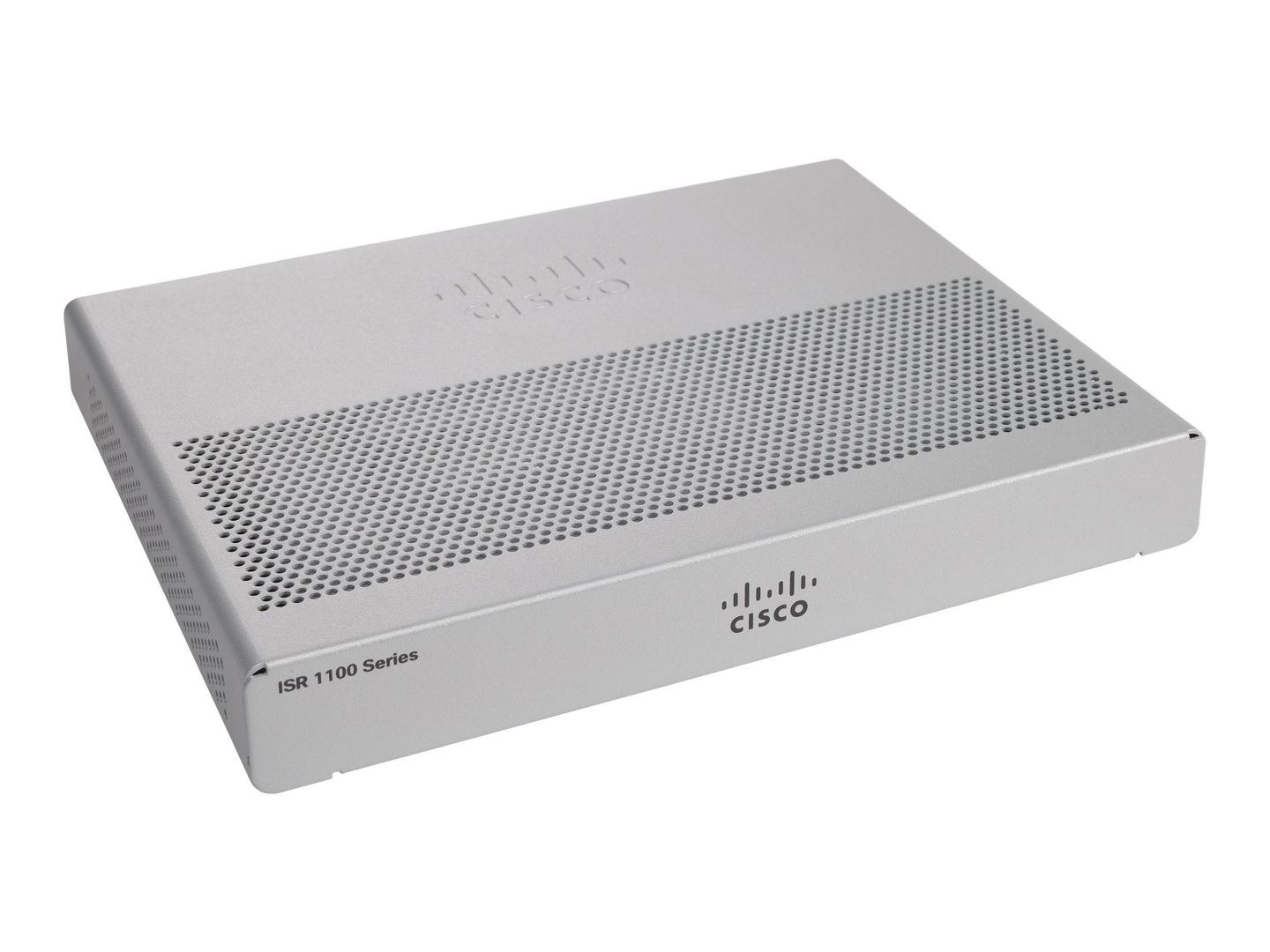

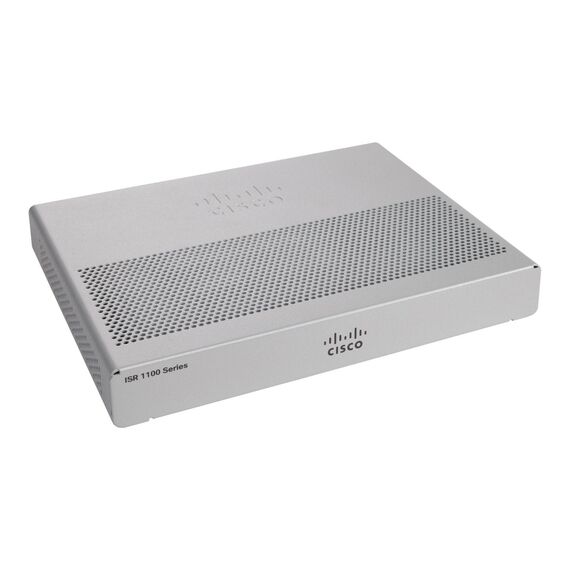

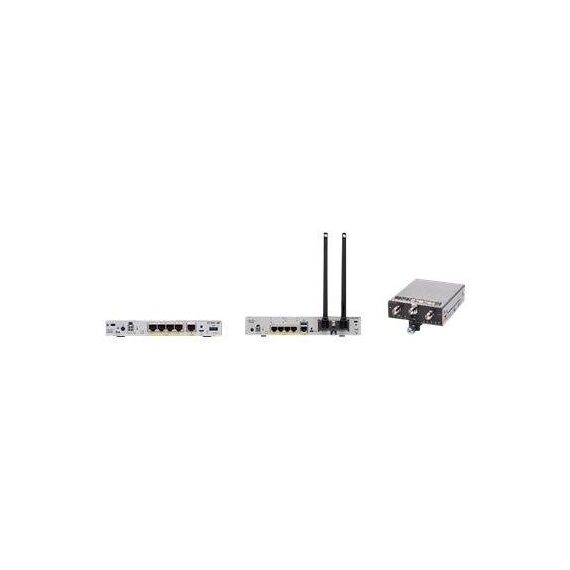

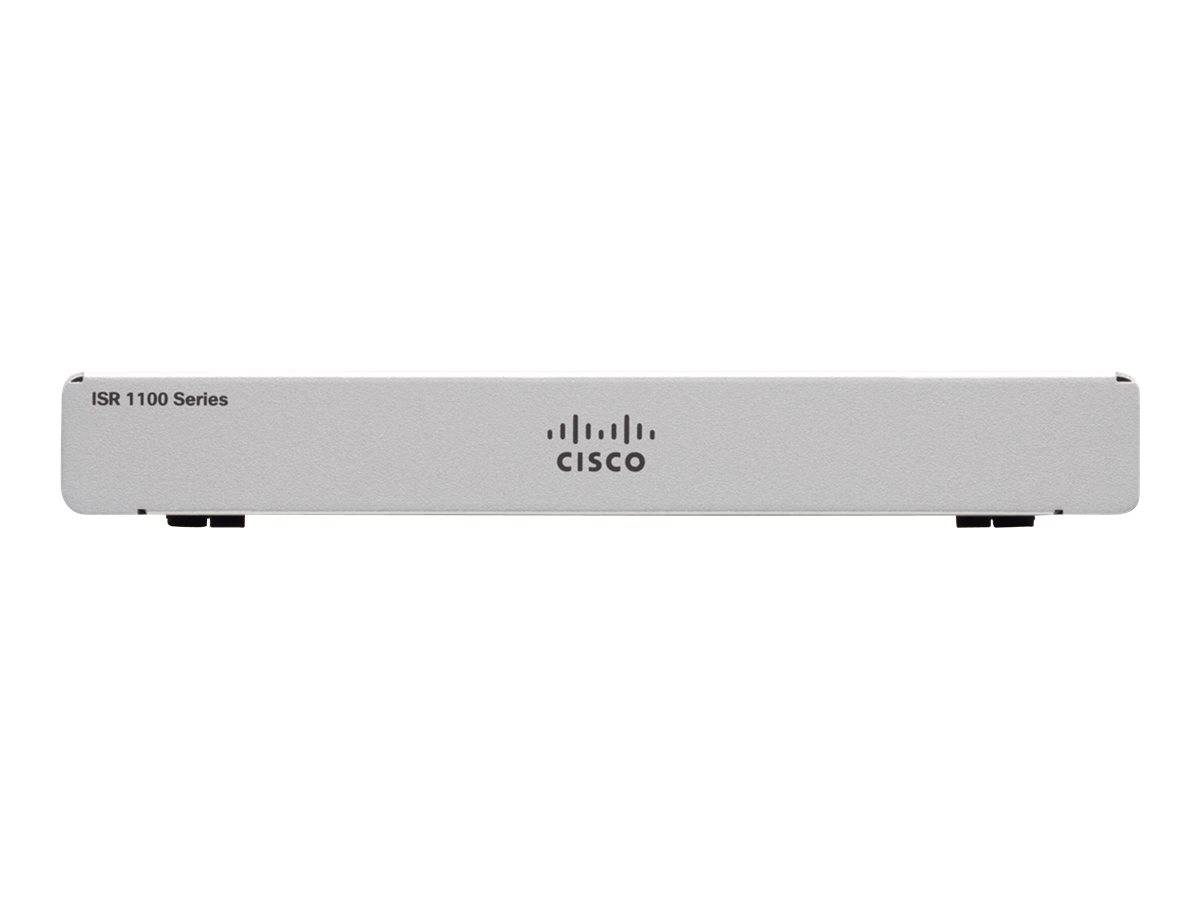

Cisco Integrated Services Router 1101 / Router / 4-port switch / GigE / rack-mountable | C1101-4P
Please sign in so that we can notify you about a reply
Product Features
- Perfect connectivity
Access Ethernet, DSL, 4G LTE Advanced, and 802.11ac Wi-Fi. The 1000 Series is ideal for use as customer premises equipment. - Increased performance
Meet the demand for more bandwidth without more budget. The router's multicore architecture leverages higher data-plane performance, enabling high availability for network services. - Integrated enterprise-class security
Gain enterprise-class security and a highly secure WAN. Cisco Umbrella, Encrypted Traffic Analytics, and advanced threat defense provide high-performance encryption, VPN, firewall, and URL filtering. - Advanced wireless LAN
Enjoy wireless LAN capability at the branch, in a single box, that can run with or without a controller. The 1000 Series integrates 802.11ac Wave 2 wireless with Cisco Mobility Express as an access point in every router.
Special Features
- Perfect connectivity
- Increased performance
- Integrated enterprise-class security
- Advanced wireless LAN
Product Specification
| Device Type | Router - 4-port switch (integrated) |
| Enclosure Type | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Encryption throughput: 350 Mbps |
| Network / Transport Protocol | IPSec, PPPoE, DHCP, DNS, L2TPv3 |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP |
| Remote Management Protocol | SNMP, RMON, CLI, TR-069 |
| Encryption Algorithm | DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA |
| Authentication Method | RADIUS |
| Features | Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), NetFlow, Maximum Ratio Combining (MRC), IPFIX, cyclic shift diversity (CSD), Location ID Separation Protocol (LISP), packet aggregation A-MPDU, packet aggregation A-MSDU, Management Information Base (MIB) II, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.11r, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1, EN 60950-1, VCCI V-3, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, EN 300 386, IEC 60950-1 First Edition, CAN/CSA-C22.2 No. 60950-1, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13 |
| RAM | 4 GB |
| Flash Memory | 4 GB |
| Expansion / Connectivity | Expansion / Connectivity |

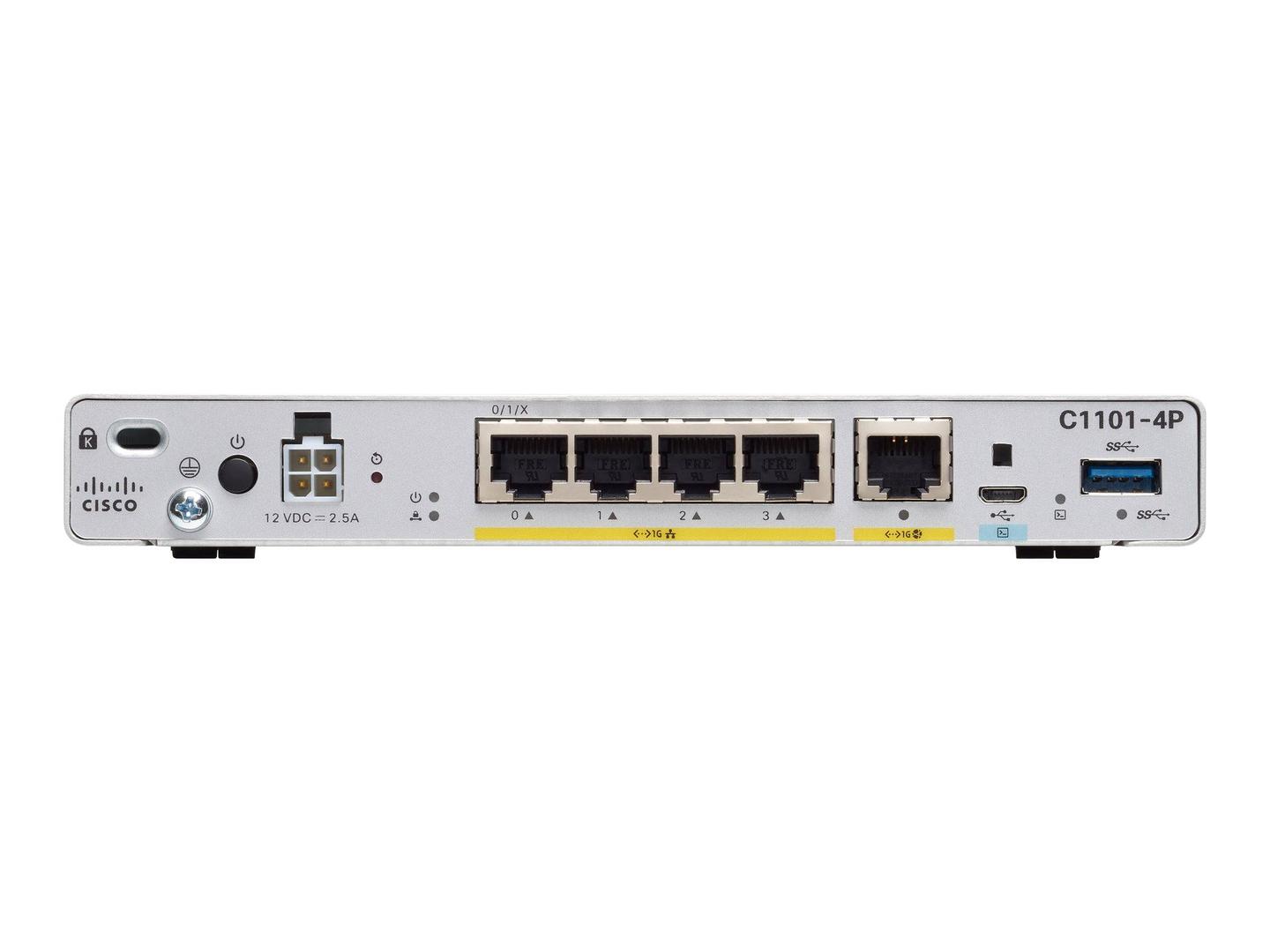

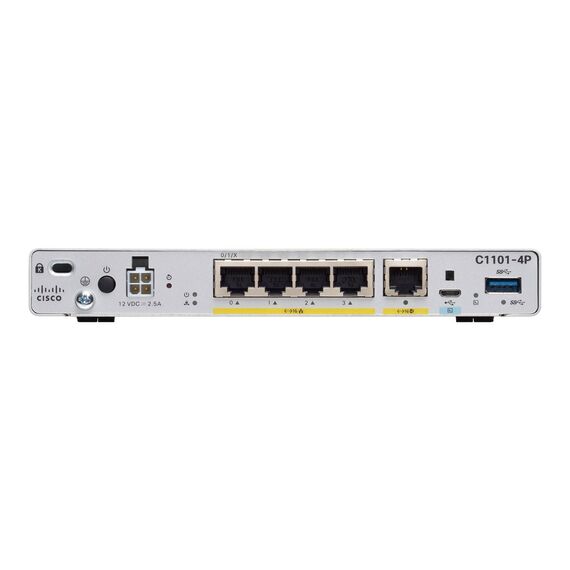

| Interfaces | WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP ¦ LAN: 4 x 1000Base-T - RJ-45 ¦ USB 3.0: 1 x |
| Power | Power |
| Power Device | External power adapter - 30 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 30 Watt |
| Miscellaneous | Miscellaneous |
| Rack Mounting Kit | Optional |
| Dimensions & Weight | Dimensions & Weight |
| Width | 19.05 cm |
| Depth | 15.24 cm |
| Height | 2.79 cm |
| Weight | 1.76 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 85% (non-condensing) |
Features - Cisco - C1101-4P
More Details
Product Code
677PW03
EAN Code
0889728131049
Manufacturer
Cisco
