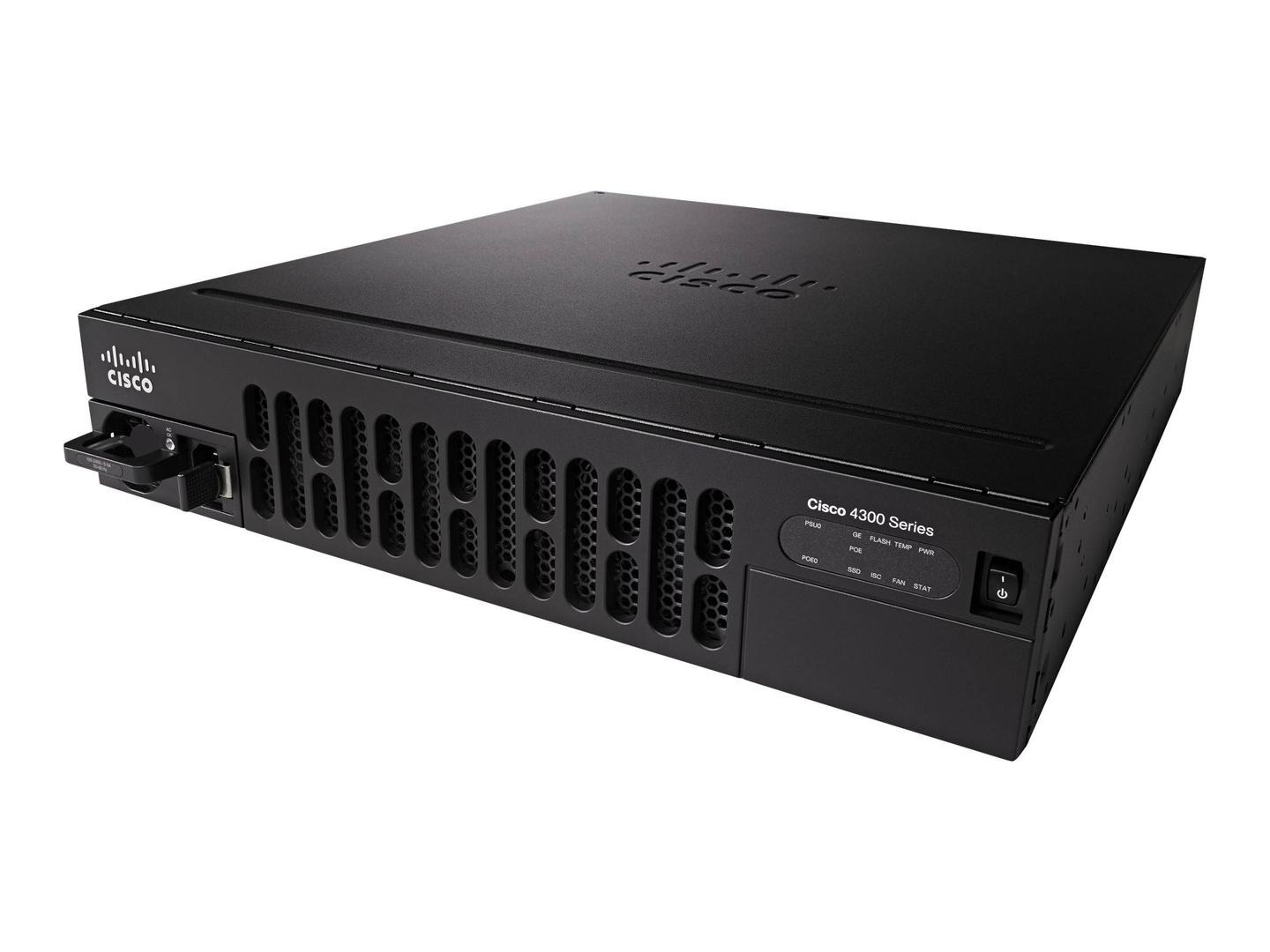

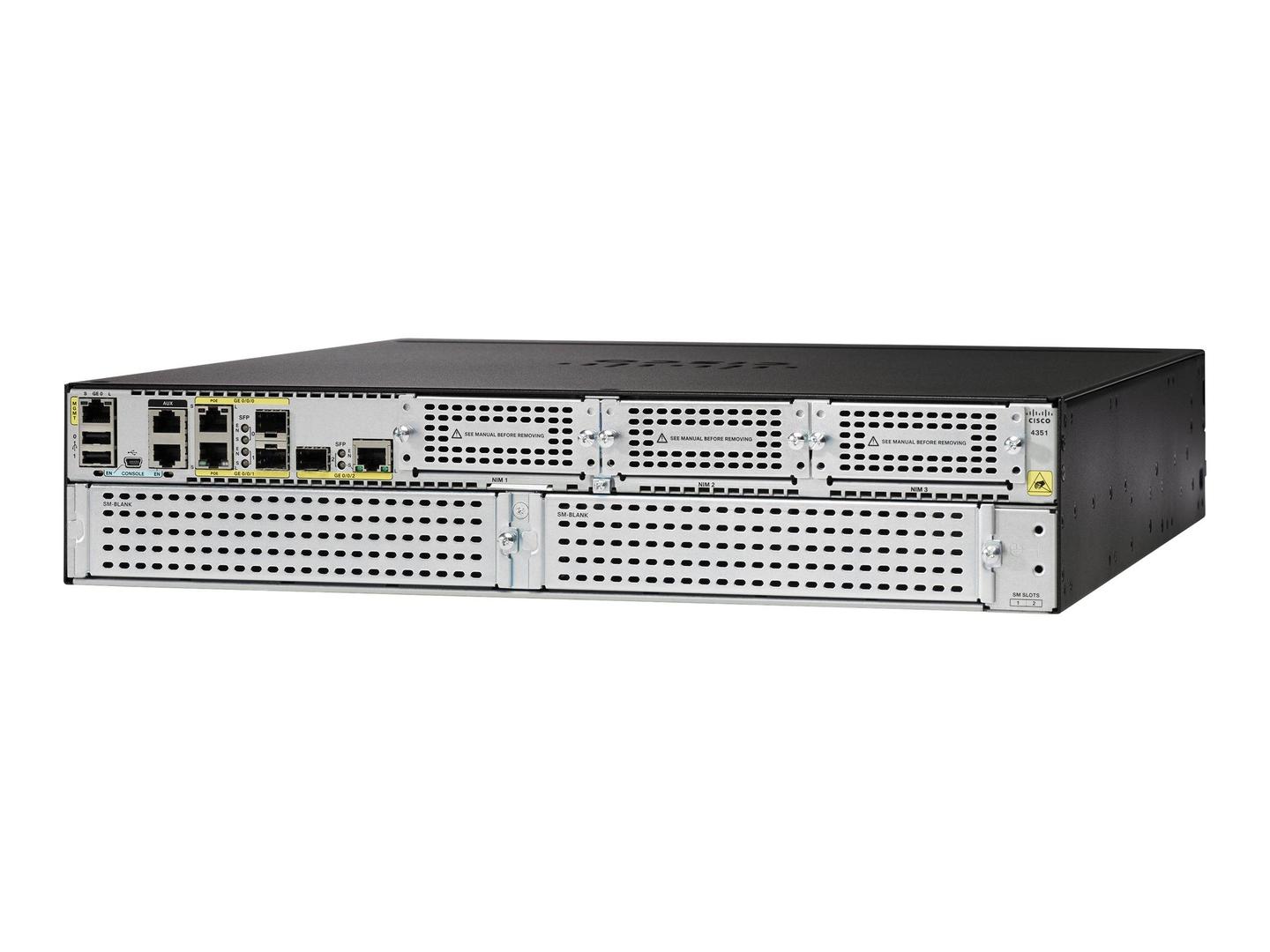

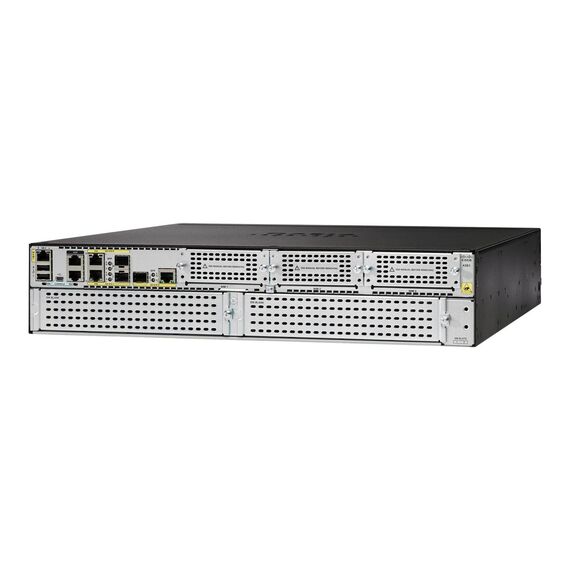

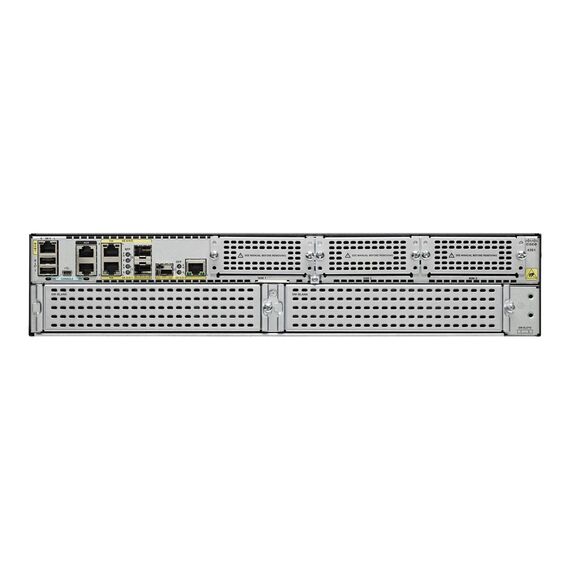

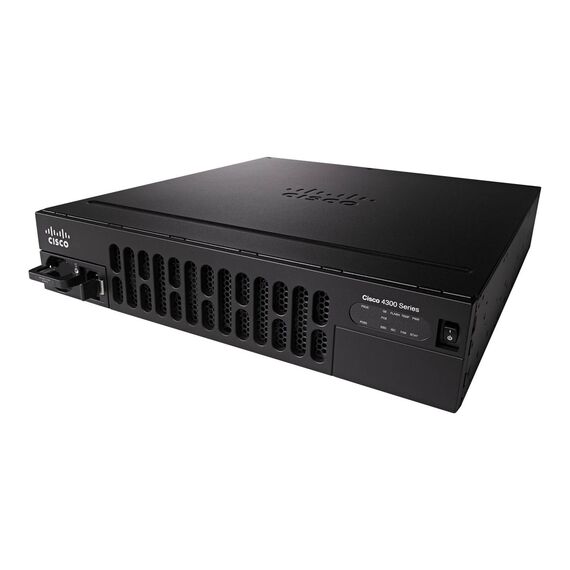

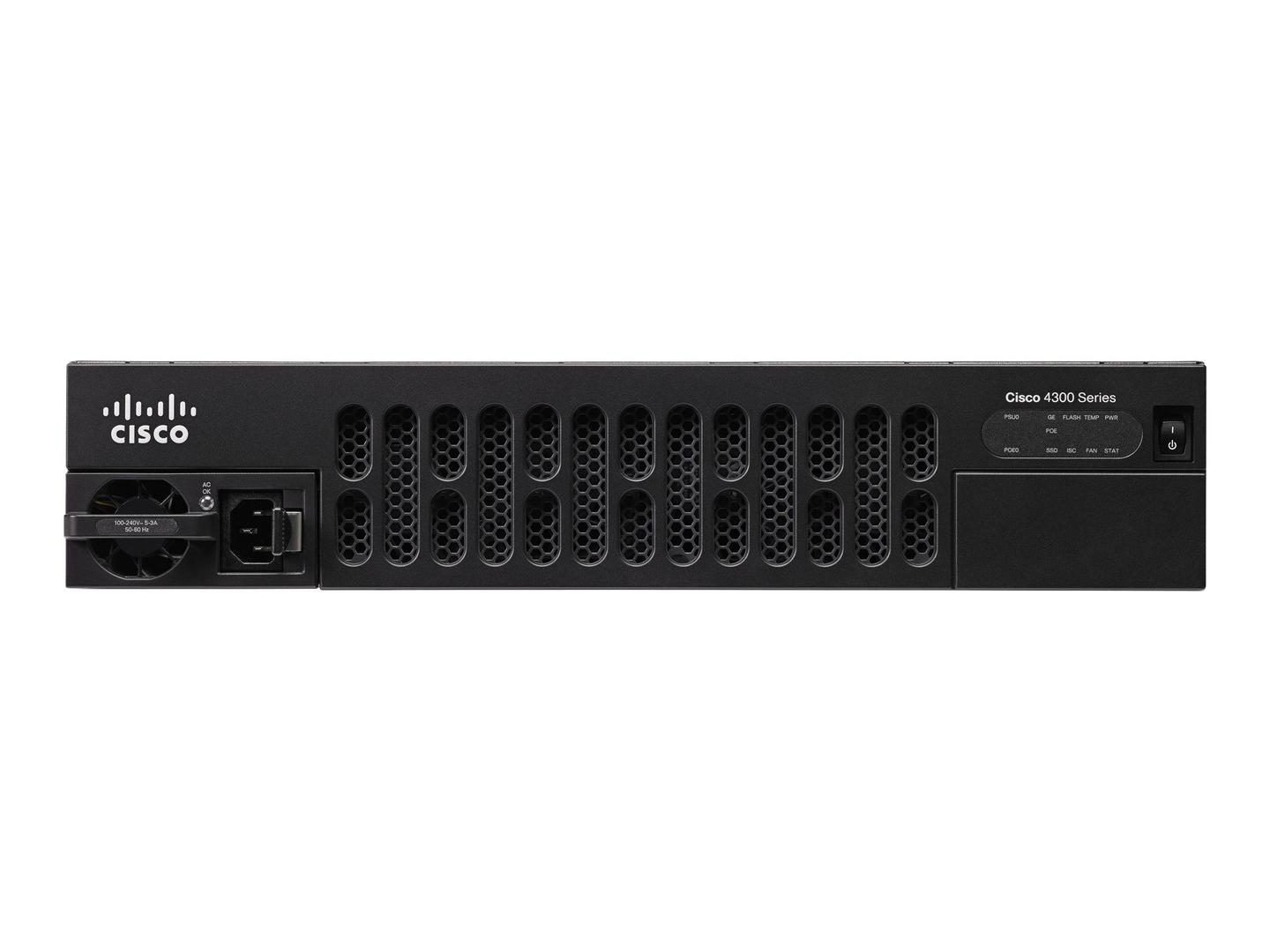

Cisco Integrated Services Router 4351 / Router / GigE / WAN ports: 3 / rack-mountable | ISR4351/K9
Please sign in so that we can notify you about a reply
Product Features
- High-quality user experience
During peak loads, the multi-core CPU architecture running Cisco IOS-XE can enable resiliency by using separate control and data services planes. - Faster response to business and user needs
The pay-as-grow performance services allows IT increase throughput and expand across a rich portfolio of on-demand network and application services with no truck rolls.
Special Features
- Load balance traffic and lower costs with intelligent path selection using real time analytics
- Visibility into 1000+ applications for capacity planning and prioritization
- Improve application performance and offload WAN with L4-7 optimization and intelligent caching
- Pay-as-you-grow: buy what you need today and upgrade anytime without truck rolls
- Predictable OpEx spend, license portability, investment protection
- Automated provisioning for Faster deployment
- Consistent IOS-XE operating system across branch, data center and cloud
- Industry leading advanced threat defense
- Scale secure direct Internet access across branch sites with consistent policy enforcement
- High performance next generation encryption for secure WAN
- 4-10 times performance increase for the same price as the ISR G2
- Minimal performance impact as network services and throughput increases
- Local compute resources for applications, data back up and analytics
Product Specification
| Device Type | Router |
| Enclosure Type | Rack-mountable - modular - 2U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Aggregate throughput: 200 Mbps |
| Network / Transport Protocol | IPSec, PPPoE, DHCP |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast |
| Remote Management Protocol | SNMP, RMON |
| Features | VPN support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), wall mountable, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, NetFlow, IPFIX |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, GB 4943, VCCI V-3, EN 61000, KN22, KN24, CNS 13438, EN 55022 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1 |
| RAM | 4 GB (installed) / 16 GB (max) - DDR3 SDRAM |
| Flash Memory | 4 GB (installed) / 16 GB (max) |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | WAN / LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Serial: 1 x console - RJ-45 ¦ Management: 1 x console - mini-USB Type B ¦ Serial: 1 x auxiliary - RJ-45 ¦ USB 2.0: 2 x 4 pin USB Type A ¦ 3 x SFP (mini-GBIC) ¦ Management: 1 x RJ-45 |
| Expansion Slots | 3 (total) / 3 (free) x NIM ¦ 1 (total) / 1 (free) x ISC ¦ 2 (total) / 2 (free) x Enhanced Service Module (SM-X) ¦ 2 (total) / 0 (free) x DIMM 240-pin |
| Power | Power |
| Power Device | Internal power supply - 430 Watt |
| Installed Qty | 1 (installed) / 1 (max) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | Miscellaneous |
| Rack Mounting Kit | Included |
| Software / System Requirements | Software / System Requirements |
| OS Provided | Cisco IOS IP Base |
| Dimensions & Weight | Dimensions & Weight |
| Width | 43.815 cm |
| Depth | 46.99 cm |
| Height | 8.89 cm |
| Weight | 13.1 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - advance parts replacement - 90 days - response time: 10 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 85% |
Features - Cisco - ISR4351/K9
More Details
Product Code
6779C09
EAN Code
0882658698835
Manufacturer
Cisco
