Cisco Integrated Services Router 1100-4G / Router / GigE | ISR1100-4G
Please sign in so that we can notify you about a reply
Product Features
- Lightweight, compact size
Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors. - High performance to run concurrent services
High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services. - High availability and business continuity
Redundant WAN connections for failover protection and load balancing.
Special Features
- Lightweight, compact size
- High performance to run concurrent services
- High availability and business continuity
Product Specification
| Device Type | Router |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | IPSec, PPPoE, DHCP, DNS, L2TPv3 |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP |
| Remote Management Protocol | SNMP, RMON, CLI |
| Authentication Method | RADIUS |
| Features | Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), NetFlow, Maximum Ratio Combining (MRC), IPFIX, cyclic shift diversity (CSD), Location ID Separation Protocol (LISP), packet aggregation A-MPDU, packet aggregation A-MSDU, Management Information Base (MIB) II, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM) |
| Compliant Standards | IEEE 802.1Q, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1, EN 60950-1, VCCI V-3, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, EN 300 386, IEC 60950-1 First Edition, CAN/CSA-C22.2 No. 60950-1, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13 |
| Processor | Intel 2.2 GHz |
| RAM | 4 GB DDR4 SDRAM |
| Status Indicators | Status |
| Expansion / Connectivity | Expansion / Connectivity |

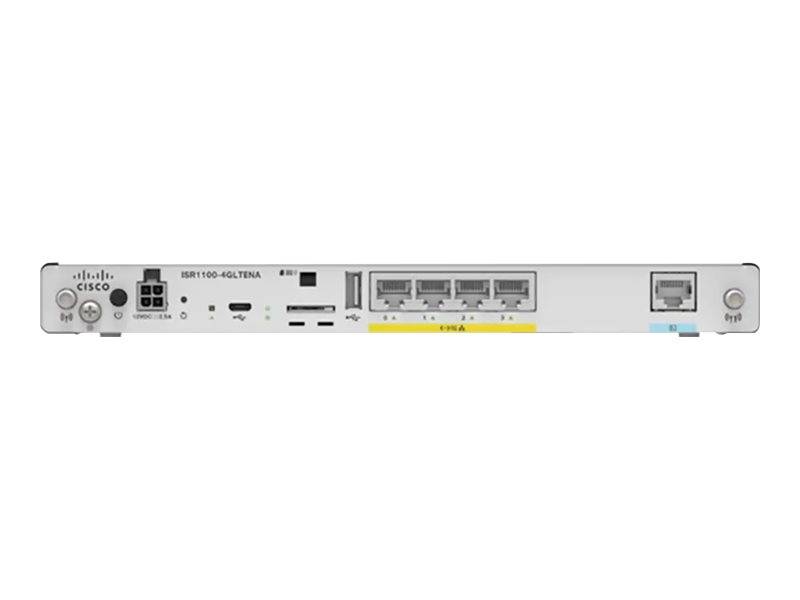

| Interfaces | LAN: 5 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 3.0: 1 x |
| Power | Power |
| Power Device | External power adapter - 30 Watt |
| Voltage Required | AC 120/230 V / DC 12 V (50/60 Hz) |
| Power Consumption Operational | 30 Watt |
| Miscellaneous | Miscellaneous |
| MTBF | 592,000 hours |
| Dimensions & Weight | Dimensions & Weight |
| Width | 25.9 cm |
| Depth | 17.8 cm |
| Height | 2.79 cm |
| Weight | 1.08 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 5 - 95% |
Features - Cisco - ISR1100-4G
More Details
Product Code
677TA06
EAN Code
0889728256087
Manufacturer
Cisco
