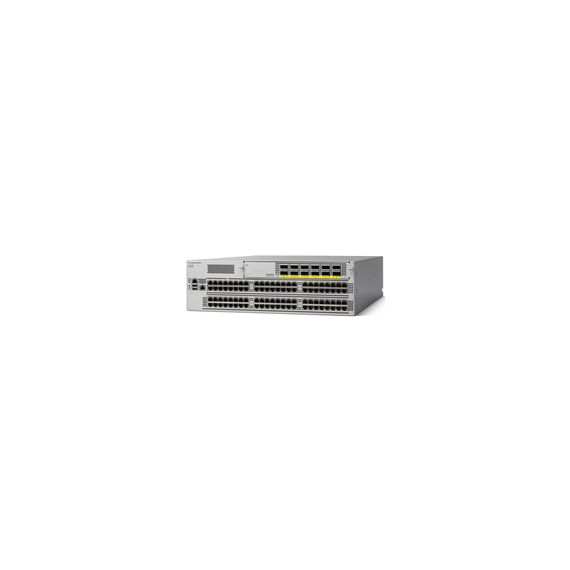

Cisco NEXUS 9300 WITH 96P 1/10G-T AN (N9K-C93128TX)

N9K-C93128TX
Contact us for a price
Out of stock
Product Code6773U16 EAN Code0882658692925 ManufacturerCisco
Find similar
Delivery
Payment options

Cisco N9K-C93128TX Cisco NEXUS 9300 WITH 96P 1/10G-T AN (N9K-C93128TX)

Organizations everywhere recognize that changing application environments are creating new demands for the IT infrastructure that supports them. Application workloads are deployed across a mix of virtualized and nonvirtualized server and storage infrastructure, requiring a network infrastructure that provides consistent connectivity, security, and visibility across a range of bare-metal, virtualized, and cloud computing environments:

- Application instances are created dynamically. As a result, the provisioning, modification, and removal of application network connectivity needs to be dynamic as well.
- Business units’ demand accelerated application deployments. IT departments have to provide shared IT infrastructure to address time-to-market needs and to increase their return on investment ROI.
- With organizations deploying a mix of custom, open source, and off-the-shelf commercial applications, IT departments must manage both security and quality of service QoS for environments that support multitenancy.
- Applications have been transitioning over time to a less monolithic, scale-out, multinode model. IT infrastructure that supports this model must scale with the speed of business and support both 10 and 40 Gigabit Ethernet connectivity.

The Cisco Nexus 9000 Series Switches include both modular and fixed-port switches that are designed to overcome these challenges with a flexible, agile, low-cost, application centric infrastructure ACI.

The Cisco Nexus 9300 Series Switches comprises of fixed-port switches designed for top-of-rack ToR and middle-of-row MoR deployment in data centers that support enterprise applications, service provider hosting, and cloud computing environments. Cisco Nexus 9300 Series Switches are Layer 2 and 3 nonblocking 10 and 40 Gigabit Ethernet and Fibre Channel over Ethernet FCoE-capable switches with up to 2.56 terabits per second Tbps of internal bandwidth.

The 40-Gbps ports for Cisco Nexus 9396PX, 9396TX and 93128TX are provided on an uplink module that can be serviced and replaced by the user. The uplink module is the same for all switches; If used with the Cisco Nexus 93128TX, 8 out of the 12x40Gbps QSFP ports will be available.

With the Cisco Nexus 9000 Series, organizations can quickly and easily upgrade existing data centers to carry 40 Gigabit Ethernet to the aggregation layer or to the spine in a leaf-and-spine configuration through advanced and cost effective optics that enable the use of existing 10 Gigabit Ethernet fiber a pair of multimode fiber strands. Please visit Cisco 40G BASE QSFP Modules data sheet for more details.

Cisco provides two modes of operation for the Cisco Nexus 9000 Series. Organizations can use Cisco® NX-OS Software to deploy the Cisco Nexus 9000 Series in standard Cisco Nexus switch environments. Organizations also can use the ACI-ready hardware infrastructure to take full advantage of an automated, policy-based, systems management approach.

Feature list

Switch layer: L3
Switch type: Managed
Quality of Service QoS support: Y
Multicast support: Y
Web-based management: Y
System event log: Y
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet 10/100/1000
SFP ports quantity: 48
DC-in jack: Y
IGMP snooping: Y
Spanning tree protocol: Y
10G support: Y
VLAN support: Y
MAC address table: 96000 entries
Throughput: 256 Mpps
Number of VLANs: 4096
Rack mounting: Y
Colour of product: Grey
Form factor: 3U
LED indicators: Y
Ventilation fans: 3
Safety: UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943
Certification: 47CFR, AS/NZS CISPR22, CISPR22, EN55022, ICES003, VCCI, EN61000-3-2, EN61000-3-3, KN22, CNS13438, EN55024, CISPR24, EN300386, KN 61000
Internal memory: 50 MB
AC input voltage: 100-240 V
AC input frequency: 47/63 Hz
Power consumption typical: 568 W
Operating temperature T-T: 0 - 40 °C
Storage temperature T-T: -40 - 70 °C
Operating relative humidity H-H: 5 - 95 %
Operating altitude: 0 - 4000 m
Width: 445 mm
Depth: 571 mm
Height: 133 mm
