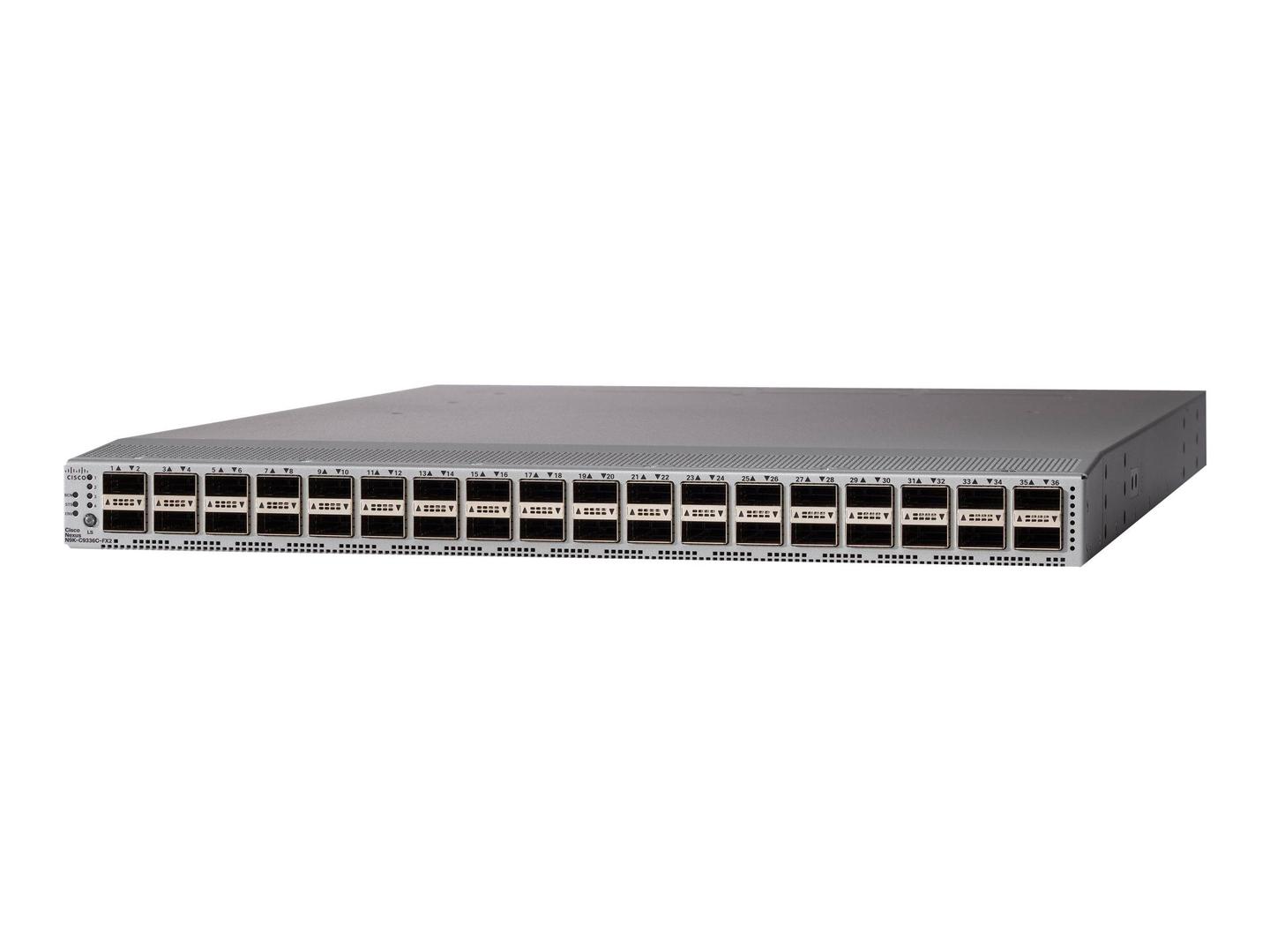

Cisco Nexus 9336C-FX2 / Switch / L3 / Managed / 36 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28 / front and side to back / rack-mountable | N9K-C9336C-FX2
Please sign in so that we can notify you about a reply
Special Features
- Automated, policy-based systems management
- Real-time buffer utilization per port and per queue
- Highly available and efficient design
Product Specification
| Device Type | Switch - 36 ports - L3 - Managed |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Ports | 36 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28 |
| Performance | Bandwidth: 7.2 Tbps ¦ Bandwidth: 2.8 bpps |
| Capacity | Multiple Spanning Tree Protocol instances: 64 ¦ HSRP groups: 490 ¦ ACL entries (ingress): 5000 ¦ Maximum number of links in a port channel: 32 ¦ Maximum number of port channels: 512 ¦ ECMP paths: 64 ¦ Virtual Routing and Forwarding (VRF) instances: 16000 ¦ VLANs supported: 3967 ¦ ACL entries (egress): 2000 ¦ IGMP snooping groups: 32000 ¦ Multicast routes: 32000 ¦ NAT entries: 1023 |
| Routing Protocol | OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS |
| Features | Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, port exhaust, Virtual PortChannel (vPC) technology, MACsec support, Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), Ethernet Virtual Private Network (EVPN), 40MB system buffer, 3 fan trays, Power On Auto Provisioning (POAP) |
| RAM | 24 GB |
| Built-in Devices | 128 GB SSD |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 36 x 100Gbit/40Gbit LAN QSFP28 ¦ 1 x management RJ-45 ¦ 1 x management SFP+ ¦ 1 x USB ¦ 1 x serial (RS-232) |
| Power | Power |
| Power Device | Internal power supply |
| Installed Qty | 0 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 777 Watt |
| Miscellaneous | Miscellaneous |
| MTBF | 352,590 hours |
| Compliant Standards | RoHS |
| Dimensions & Weight | Dimensions & Weight |
| Width | 43.9 cm |
| Depth | 62.3 cm |
| Height | 4.4 cm |
| Weight | 8.5 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
Features - Cisco - N9K-C9336C-FX2
More Details
Product Code
677PK93
EAN Code
0889728116374
Manufacturer
Cisco
