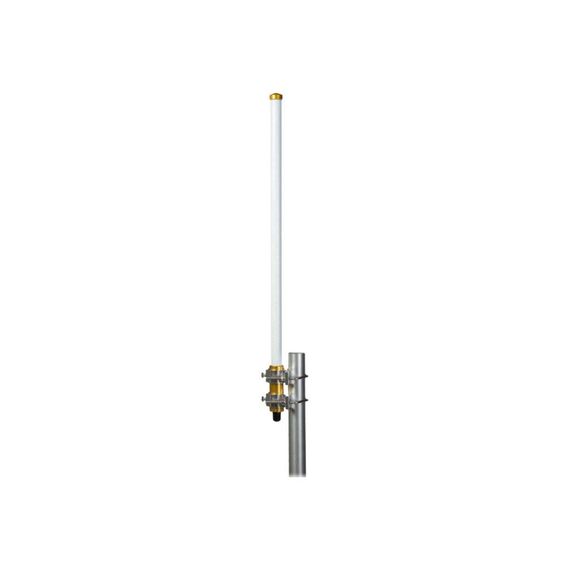

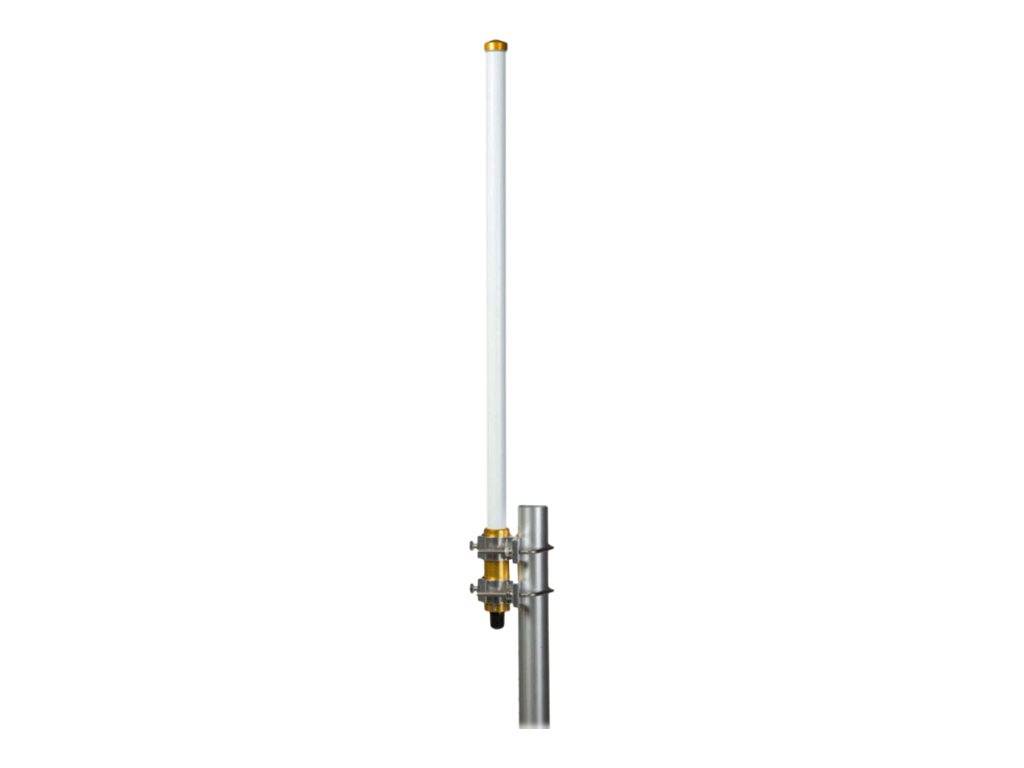

Cisco / Antenna / 5 dBi / omni-directional / outdoor, wall-mountable, pole mount / white | ANT-LPWA-DB-O-N-5=
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Antenna |
| Package Content | 2 mounting brackets, 4 x hex nuts, 4 x split lock washers, 4 flat washers, UV-resistant fibreglass radome, hold anodised sleeve, top cap with N (female) connector, 2 x V-bolt clamps, 2 x hex bolts |
| Width | 3.33 cm |
| Depth | 3.33 cm |
| Height | 69.2 cm |
| Weight | 790 g |
| Enclosure Colour | White |
| Aerial | Aerial |
| Aerial Placing / Mounting | Outdoor, wall-mountable, pole mount |
| Compatibility | ISM, WPAN, LoRaWan |
| Frequency Range | 863 - 928 MHz |
| Gain | 5 dBi |
| Directivity | Omni-directional |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1, 1.65:1 Max |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 30° |
| Impedance | 50 Ohm |
| Cabling & Wiring | Cabling & Wiring |
| Compliant Standards | IP67 |
| Connector Provided | 1 x N connector female |
| Miscellaneous | Miscellaneous |
| Features | Lightning-resistant, IP67 protection, vertical polarisation, DC-grounded for ESD protection |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
Features - Cisco - ANT-LPWA-DB-O-N-5=
More Details
Product Code
677QJ50
EAN Code
0889728031936
Manufacturer
Cisco
