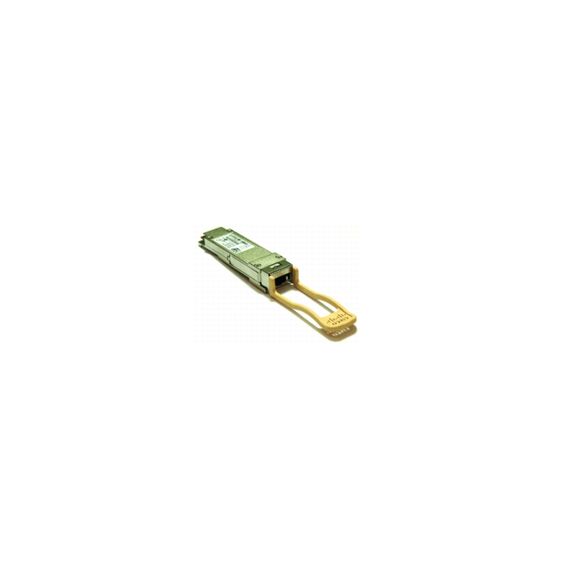

Cisco QSFP-40G-LR4= Cisco QSFP 40GBASE-LR4 OTN TRANSCEIV (QSFP-40G-LR4=)
The Cisco® 40GBASE QSFP Quad Small Form-Factor Pluggable portfolio offers customers a wide variety of high-density and low-power 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications.Features and Benefits of Cisco QSFP Modules
- Hot-swappable input/output device that plugs into a 40 Gigabit Ethernet Cisco QSFP port
- Flexibility of interface choice for different reach requirements and fiber types
- Interoperable with other IEEE-compliant 40GBASE interfaces where applicable
- Certified and tested on Cisco QSFP 40G ports for superior performance, quality, and reliability
- High-speed electrical interface compliant to IEEE 802.3ba
- QSFP Form factor, 2-wire I2C communication interface and other low-speed electrical interface compliant to SFF 8436 and QSFP Multisource Agreement MSA
Feature list
| Interface type: | QSFP |
| Data transfer rate max: | 40000 Mbit/s |
| Fiber optic connector: | LC |
| Networking standards: | IEEE 802.3ba |
| SFP transceiver type: | LR |
| Hot-Plug support: | Y |
| Auto MDI/MDI-X: | Y |
| Maximum transfer distance: | 10000 m |
| Wavelength: | 1310 nm |
| Cable type: | Single-mode |
| Power consumption typical: | 3.5 W |
| Operating temperature T-T: | 0 - 70 °C |
| Storage temperature T-T: | -40 - 85 °C |
| Operating relative humidity H-H: | 10 - 80 % |
| Storage relative humidity H-H: | 10 - 85 % |
| Certification: | MSA |
| Number of products included: | 1 pcs |
Features - Cisco - QSFP-40G-LR4=
More Details
Product Code
6778D08
EAN Code
0882658537523
Manufacturer
Cisco
