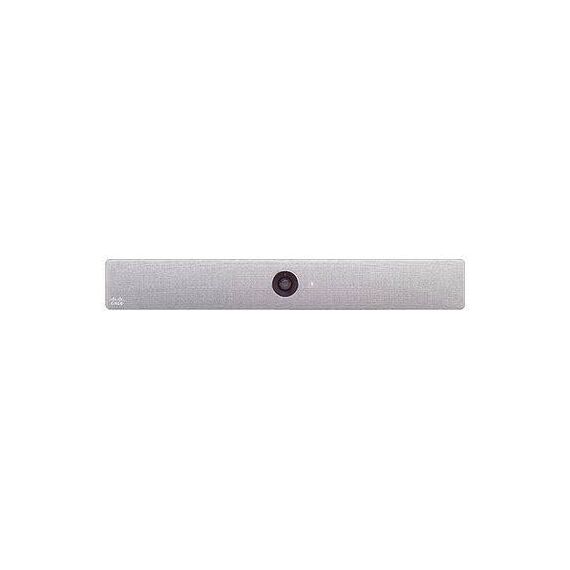

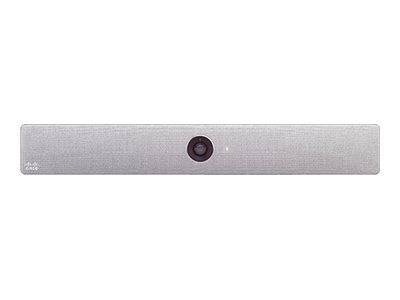

Cisco Spark Room Kit / Video conferencing kit / with Touch10 | CS-KIT-K9
Please sign in so that we can notify you about a reply
Special Features
- Brings intelligent views to smaller rooms with discreet, integrated cameras
- Best overview: automatically detects meeting participants and provides ideal framing
- Speaker tracking: detects and switches between active speakers and provides ideal framing
- Great audio experience with integrated microphones and speakers; supports room elegance with no wires or microphones on the table
- Automatic wake-up: system "wakes up" when someone walks into the room, and recognizes them through their mobile device
- End-to-end security
Product Specification
| Device Type | Video conferencing kit |
| VoIP Protocols | H.323, SIP |
| Voice Codecs | G.711, G.722, G.729, G.722.1, AAC-LD, Opus |
| Quality of Service | IEEE 802.1Q (VLAN), IEEE 802.1p |
| IP Address Assignment | DHCP |
| Security | IEEE 802.1X, H.235 v3 |
| Built-in Devices | Microphone, stereo speakers, camera |
| Bundled with | Touch10 |
| Modem | Modem |
| Digital Signaling Protocol | H.323, SIP, H.239, BFCP |
| Data Compression Protocol | H.264 |
| Features | DTMF decoding |
| Video Input | Video Input |
| Digital Video Capture Resolution | 3840 x 2160, 1080p |
| Video Output | Video Output |
| Supported Display Graphics | HDTV (1920x1080), UHD (3840 x 2160) |
| Networking | Networking |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac |
| Features | IPv6 support, wall mountable, Quality of Service (QoS), reset button, 4K resolution support, automatic gain control (AGC), AES encryption, Network Timing Protocol (NTP) |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x display / video - HDMI output - 19 pin HDMI Type A ¦ 1 x display / video - HDMI input - 19 pin HDMI Type A ¦ 2 x network - RJ-45 ¦ 1 x USB - 5 pin Micro-USB Type A ¦ 1 x USB - 4 pin USB Type A ¦ 2 x microphone - input ¦ 1 x audio - output |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x HDMI cable ¦ 2 x network cable - 5 m ¦ 1 x network cable - 8 m |
| Mounting Kit | Included |
| Compliant Standards | AES, RoHS, WEEE, Directive 53/2014/EU, Directive 2014/35/EU, Directive 2014/30/EU |
| Power | Power |
| Power Device | Power supply - external |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 90 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% |
Features - Cisco - CS-KIT-K9
More Details
Product Code
677KK52
EAN Code
0889728021524
Manufacturer
Cisco
