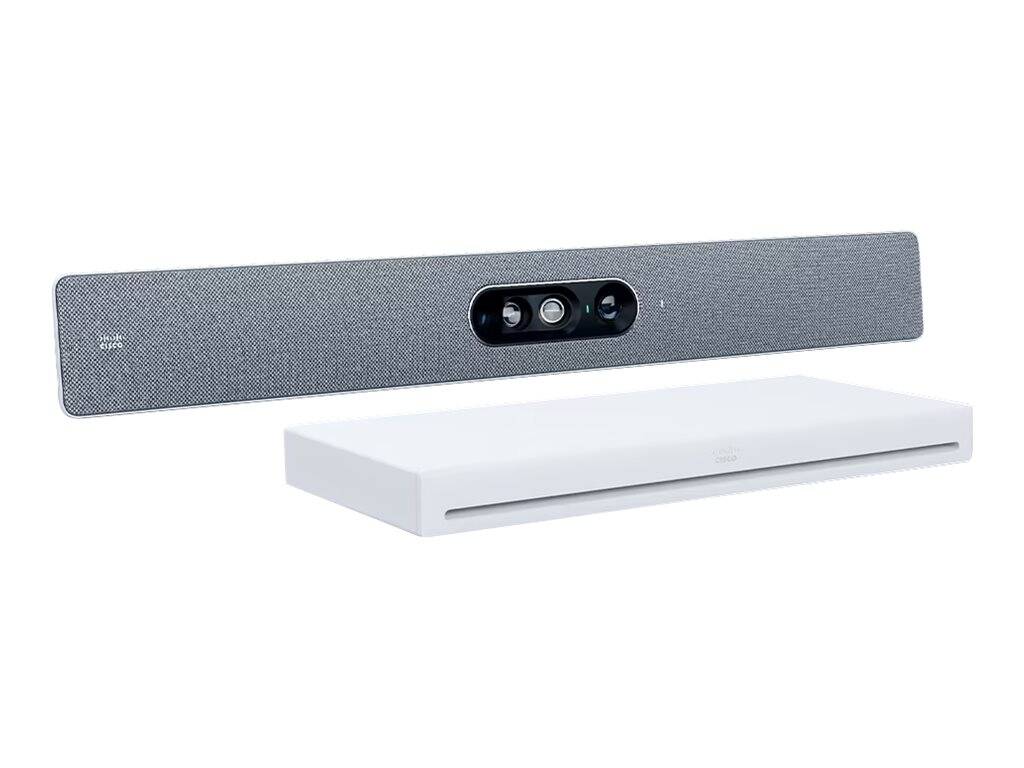

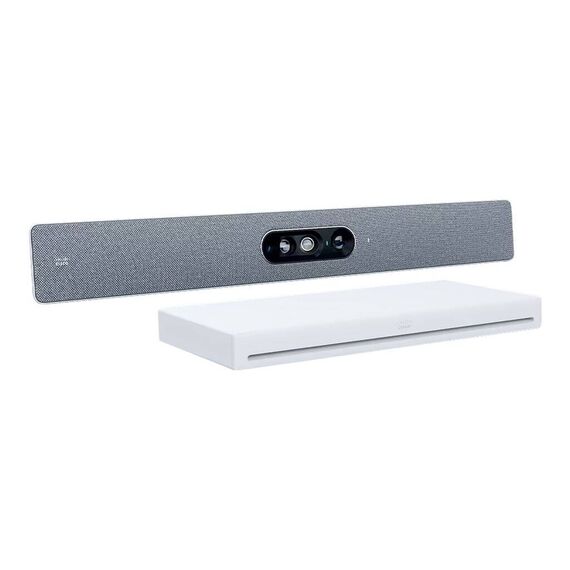

Cisco Webex Room Kit EQ - Video conferencing kit (Cisco Webex Quad Camera, Cisco Webex Codec EQ) - Certified for Microsoft Teams Rooms - carbon black | CS-KIT-EQ-C-K9
Product Features
- Equitable meetings
Powerful, multi-lens camera delivers intelligent camera views and optimized layout composition, such as people Frames for equal view across meeting participants displayed (available in Webex and third-party platforms) and People Focus for intelligent layout composition (available in Webex meetings); automatic, ML-based noise removal reduces unwanted background noises while flexible microphone input and speaker output options help create a more natural meeting experience both for people in the room and remote participants. - Stunning presentations
Triple screen support, dual content sources, single-cable USB passthrough for instant BYOD, software client-based video meetings and content sharing; 4K wireless sharing on Webex, Miracast, and Apple AirPlay; smart presenter tracking when Room Kit EQ is combined with the Cisco PTZ 4K Camera. - Multi-platform video conferencing
The device can be configured to run on RoomOS for native Webex meetings and powerful third-party interoperability with Microsoft Teams, Zoom, and Google Meet; or deployed as a native Microsoft Teams Rooms system with the ability to still join full-featured Webex meetings. - Intelligent workspaces
Presence detection for automatic "wake-up" when someone enters the room; people count for usage metrics and resource allocation; intuitive touch and voice controls for a better workspace experience; built-in environmental sensors in Room Navigator to promote safety and well-being; APIs and macros allow meeting personalization. - Flexible integration
The Codec EQ allows for integrating with multiple cameras, third-party audio systems and intelligent microphones, touch controller, and scheduling display; tight integrations with leading displays to enhance user experience and drive energy savings. - Cloud first but not cloud-only
Built for both cloud and on-premises deployment, protecting your investment. Room Kit EQ can be deployed as a fully managed solution in Control Hub offering a seamless cloud admin, monitoring, troubleshooting, and analytics experience.
Special Fetures
- Equitable meetings
- Stunning presentations
- Multi-platform video conferencing
- Intelligent workspaces
- Flexible integration
- Cloud first but not cloud-only
Product Specification
Device Type | Video conferencing kit |
Kit Content | Cisco Webex Quad Camera, Cisco Webex Codec EQ |
VoIP Protocols | H.323, SIP |
Voice Codecs | G.711, G.722, G.729, G.722.1, AAC-LD, Opus |
Video Codecs | H.263, H.264, H.265 |
Quality of Service | IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p |
IP Address Assignment | DHCP |
Security | IEEE 802.1X, H.235 v3 |
Network Protocols | HTTP, DNS, HTTPS, NTP |
Dimensions & Weight Details | Camera - Width 95 cm Depth 10.3 cm Height 12 cm Weight 4.8 kg ¦ Codec - Width 47.3 cm Depth 20.2 cm Height 4.4 cm Weight 2.33 kg |
Enclosure Colour | Carbon black |
Modem | |
Digital Signaling Protocol | H.323, SIP, H.460.18, H.460.19, BFCP |
Data Compression Protocol | G.729, G.711, G.722, H.263, H.264, G.722.1 |
Features | DTMF decoding |
Video Input | |
Type | Digital video camera (colour) - external |
Interface Type | HDMI |
Digital Video Capture Resolution | 1920 x 1080, 5056 x 3888 |
Video Modes | 5K/60p |
Digital Zoom | 5 |
Features | Automatic brightness adjustment, auto white balance, Auto Focus, Acoustic Echo Cancellation (AEC), Miracast connectivity, automatic group framing, speaker tracking, automatic people framing, 60 frame per second, F 2.0 lens aperture, AI-powered, 1/1.7 CMOS image sensor type, focus distance 1 m to infinity, 83° horizontal field of view (wide), 50° horizontal field of view (tele), group view mode, speaker view mode, frames mode, 4 x 20 megapixels image sensor |
Audio Input | |
Type | 8-microphone array - integrated |
Audio Output | |
Type | Speaker(s) |
Frequency Response | 100 - 20000 Hz |
Networking | |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
Network / Transport Protocol | NTP, DHCP, DNS |
Features | Quality of Service (QoS), Class of Service (CoS), URI Dialing, Network Timing Protocol (NTP), 2x2 MIMO technology, security slot (Kensington security lock compatible), DNS support, Wireless Screen Sharing, Cisco Expressway technology, Certificate Authority Proxy Function (CAPF), Manufacturer-Installed Certificates (MIC), Locally Significant Certificates (LSC) |
Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, X.509, IEEE 802.3bt |
Expansion / Connectivity | |
Interfaces | 1 x USB-C - 24 pin USB-C ¦ 3 x display / video - HDMI input - 19 pin HDMI Type A ¦ 3 x display / video - HDMI output - 19 pin HDMI Type A ¦ 1 x audio - output - mini-phone stereo 3.5 mm ¦ 1 x audio - output - RCA ¦ 4 x SuperSpeed USB 3.0 - 4 pin USB Type A ¦ 1 x USB - 5 pin Micro-USB Type A ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 4 x network - Ethernet 10Base-T/100Base-TX/1000Base-T (PoE++) - RJ-45 |
Miscellaneous | |
Cables Included | 1 x network cable |
Mounting Kit | Included |
Included Accessories | Wall mount |
Software Certification | Certified for Microsoft Teams Rooms |
Compliant Standards | FCC, RoHS, WEEE, FCC CFR47 Part 15 C, NRTL, Directive 2011/65/EU, Directive 2002/96/EU, EDID compatible, Directive 2014/35/EU, Directive 2014/30/EU, FCC CFR47 Part 15 E, Directive 2014/53/EU, CEC 2.0, FCC 47 CFR Part 15 B Class A |
Power | |
Power Device | Power adapter - external |
Voltage Required | AC 100-240 V (50/60 Hz) |
Manufacturer Warranty | |
Service & Support | Limited hardware warranty - advanced replacement - 90 days ¦ Limited warranty - advance hardware replacement - 10 days |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 35 °C |
Humidity Range Operating | 10 - 90% RH |
