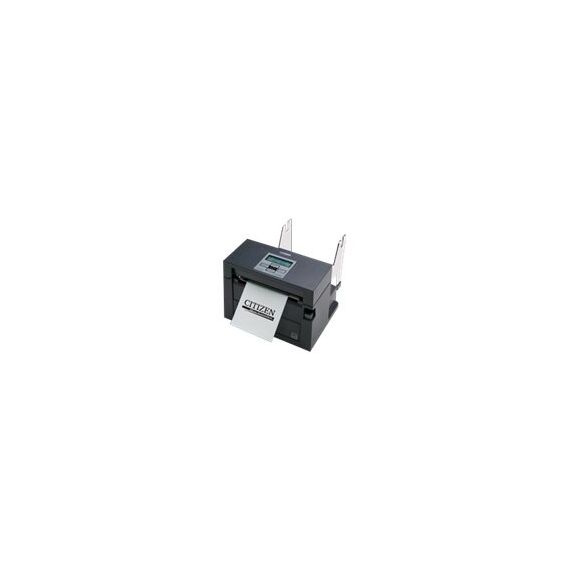

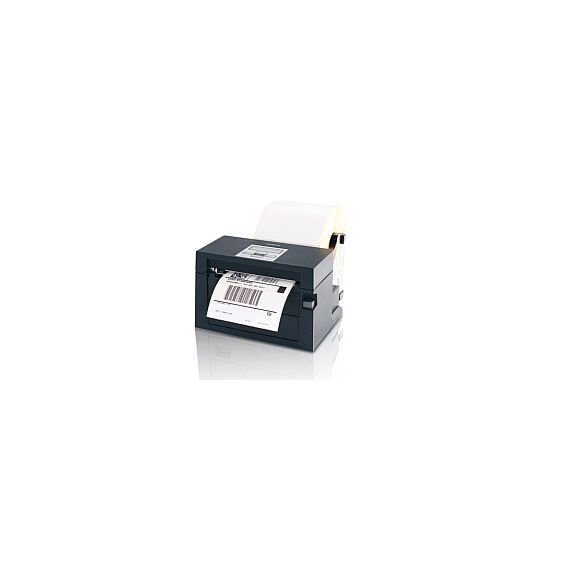

Citizen CL-S400DT - Label printer - direct thermal - Roll (11.8 cm) - 203 dpi - up to 150 mm/sec - USB 2.0, serial | 1000835
Please sign in so that we can notify you about a reply
Special Fetures
- Hi-Lift mechanism for easy media loading
- Energy Star compliant
- Self-contained metal mechanism for durable operation
- Internal power supply for reliability, 220v and 110v switchable
- Both Zebra and Datamax emulations as installed as standard
- Basic interpreter for code conversion and support for other ticketing emulations
- Adjustable media sensors for tags with unusual cut-outs or black marks
- Standard tear-bar for perforated tags
- Internal USB, serial, parallel and network interfaces configurations
- Media roll holder or fanfold stacked media
Product Specification
| Printer Type | Label printer - direct thermal - monochrome |
| Printer | |
| Print Speed | Up to 150 mm/sec - max speed |

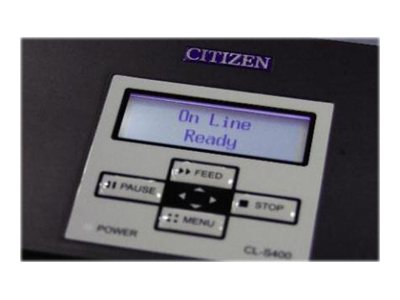

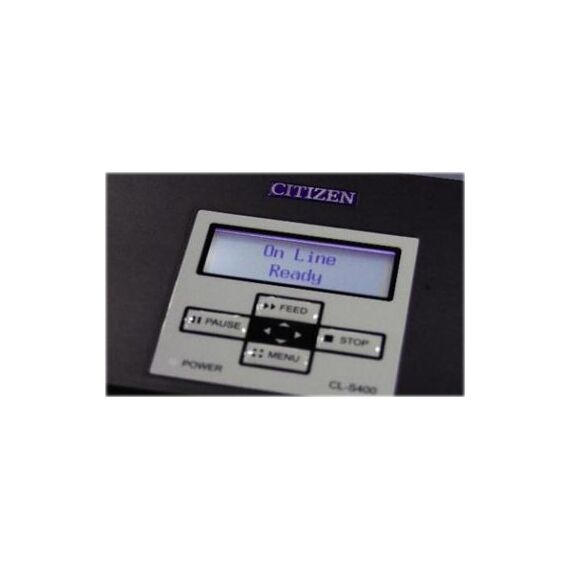

| Built-in Devices | Status LCD |
| Connectivity Technology | Wired |
| Interface | USB 2.0, serial |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | ZPL II, DPL |
| Fonts | CG Triumvirate Condensed, CG Triumvirate, CG Triumvirate Bold, OCR-A, OCR-B |
| Features | Adjustable gap sensor |
| Display Resolution | 2 lines x 16 characters |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, UCC/EAN-128, Code 49, CODABLOCK, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, HIBCC, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Code 3 of 9, UPC, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, FIM, PLANET, TLC39, Plessey, ZIP, Standard 2 of 5 |
| Printer Features | Adjustable Media Sensor (AMS), Hi-Lift metal mechanism |
| RAM | |
| RAM Installed (Max) | 16 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | |
| Flash Memory | 8 MB |
| Media Handling | |
| Media Type | Labels, tickets |
| Max Media Size | Roll (11.8 cm) |
| Min Media Size (Custom) | 19.5 mm x 6.35 mm |
| Max Media Size (Custom) | 118 mm x 812.8 mm |
| Media Sizes | Roll (1.95 - 11.8 cm) |
| Max Printing Width | 104.1 mm |
| Max Printing Length | 812.8 mm |
| Media Thickness Range | 0.0635 mm - 0.254 mm |
| Roll Maximum Outer Diameter | 125 mm |
| Roll Core Diameter | 25 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.8 cm) |
| Expansion / Connectivity | |
| Connections | 1 x RS-232 ¦ 1 x USB 2.0 - 4 pin USB Type B |
| Miscellaneous | |
| Included Accessories | Paper roll holder |
| Compliant Standards | EN 61000-3-2, GS, ICES-003, EN 61000-3-3, EN55024, EN55022 Class A, FCC Part 15, EN 60950-1 |
| Power | |
| Power Device | Power supply - internal |
| Frequency Required | 50/60 Hz |
| Software / System Requirements | |
| OS Required | Microsoft Windows 2003, Microsoft Windows Server 2008, Microsoft Windows Vista / XP / 7 / 8 |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years ¦ Limited warranty - printhead - 6 months |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 30 - 80% (non-condensing) |
| Dimensions & Weight | |
| Width | 20.6 cm |
| Depth | 14.9 cm |
| Height | 15 cm |
| Weight | 2.68 kg |
