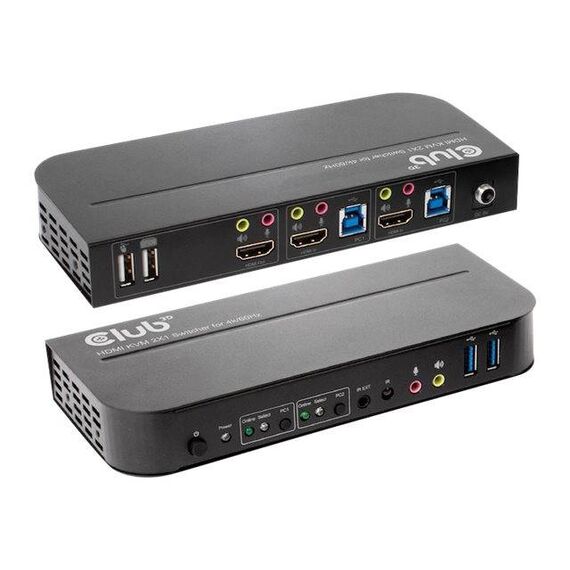

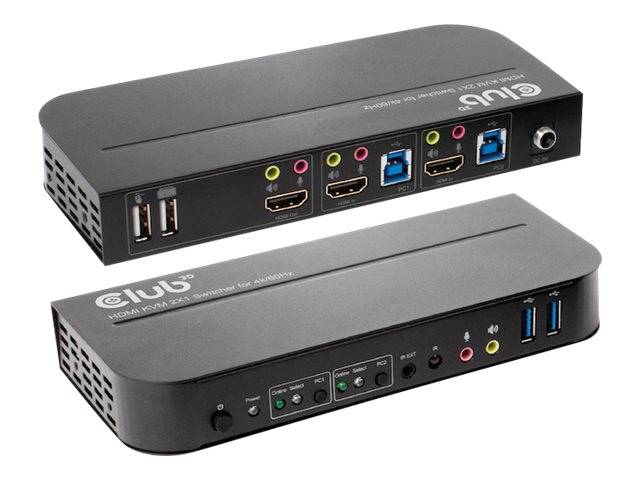

Club 3D CSV-1382 / KVM / audio switch / 2 x KVM / audio / 1 local user / desktop / AC | CSV-1382
CSV-1382
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | KVM / audio switch - 2 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Ports | 2 x KVM / audio |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Performance | Bandwidth per channel: 6 Gbps ¦ Bandwidth: 18 Gbps |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Features | HDCP compliant, 3D support, 4K resolution support, 2K resolution support, metal housing, 12-bit Deep Colour support, 36-bit Deep Color support, HDR support, 4:4:4 chroma subsampling support, 4:4:2 chroma subsampling support |
| Compliant Standards | HDCP 1.4, HDCP 2.2 |
| Status Indicators | Power, select, online |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x remote control (IrDA) mini-jack ¦ 2 x microphone output mini-jack ¦ 2 x audio input mini-jack ¦ 2 x microphone input mini-jack ¦ 2 x audio output mini-jack ¦ 2 x HDMI input ¦ 1 x HDMI output ¦ 1 x mouse (USB) Type A ¦ 1 x keyboard (USB) Type A ¦ 2 x USB Type B ¦ 2 x USB Type A |
| Power | Power |
| Power Device | External power adapter |
| Power Provided | DC 5 V |
| Voltage Required | AC |
| Power Consumption Operational | 12 Watt |
| Miscellaneous | Miscellaneous |
| Included Accessories | Remote control, IR extender |
| Cables Included | 2 x USB-A to USB-B cable |
| Compliant Standards | FCC, RoHS, EMI, HDCP 2.2, HDCP 1.4 |
| Software / System Requirements | Software / System Requirements |
| OS Required | Apple MacOS, Linux, Microsoft Windows |
| Dimensions & Weight | Dimensions & Weight |
| Width | 17.8 cm |
| Depth | 7.5 cm |
| Height | 2.6 cm |
| Weight | 365 g |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 23 cm |
| Shipping Depth | 21 cm |
| Shipping Height | 6.5 cm |
| Shipping Weight | 783 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
| Min Storage Temperature | -10 °C |
| Max Storage Temperature | 80 °C |
| Humidity Range Storage | 5 - 90% RH (non-condensing) |
