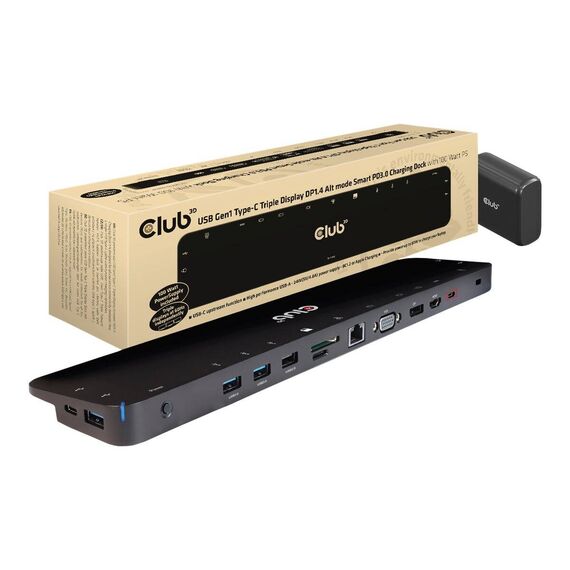

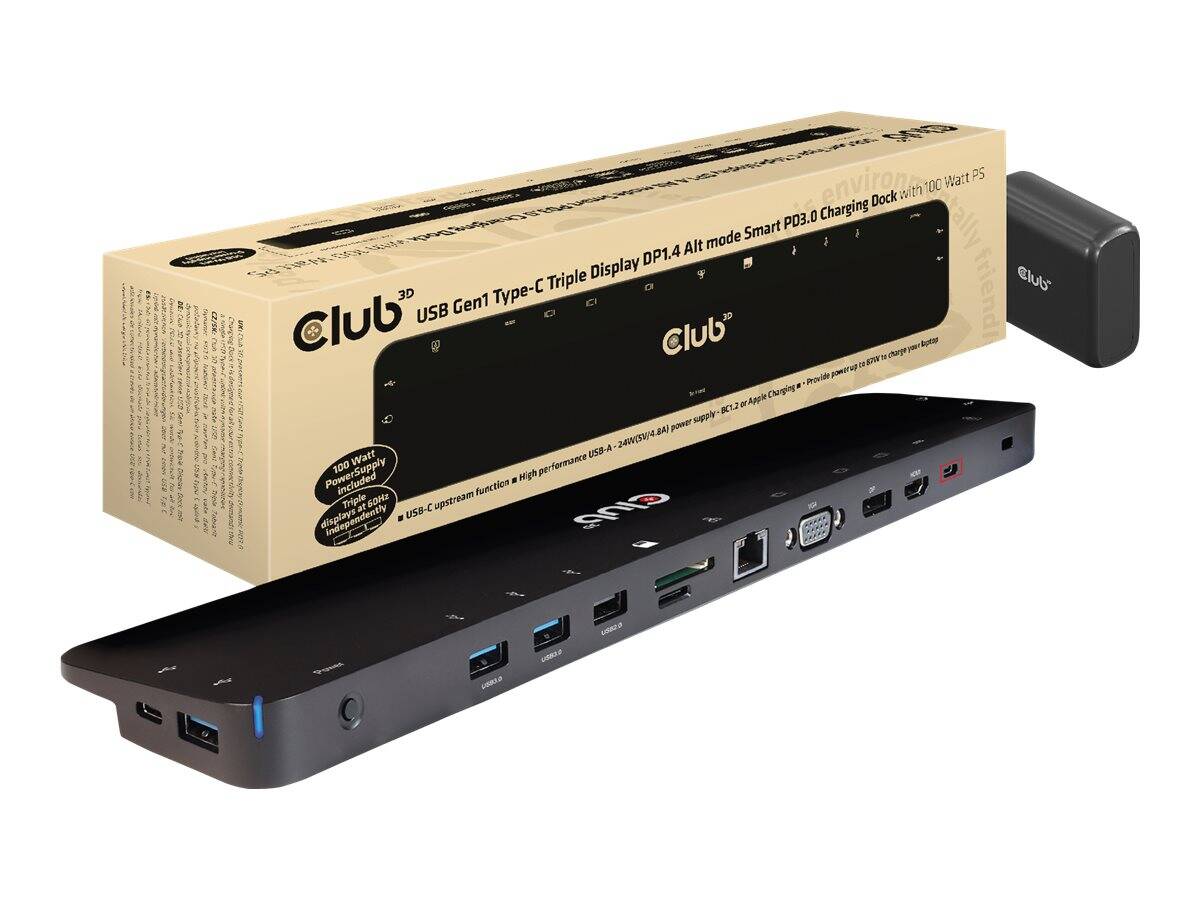

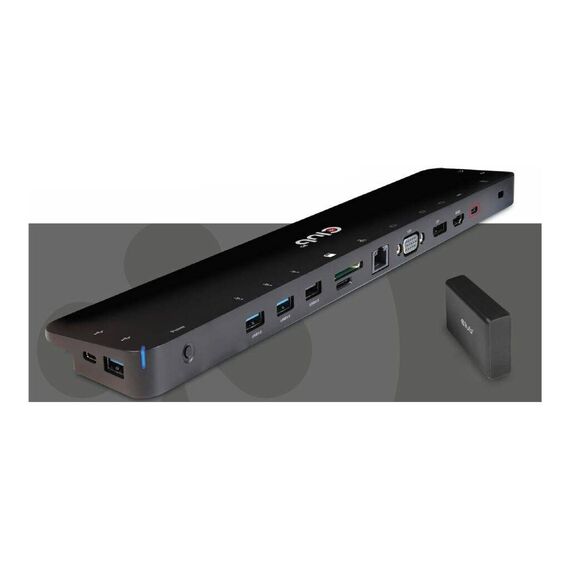

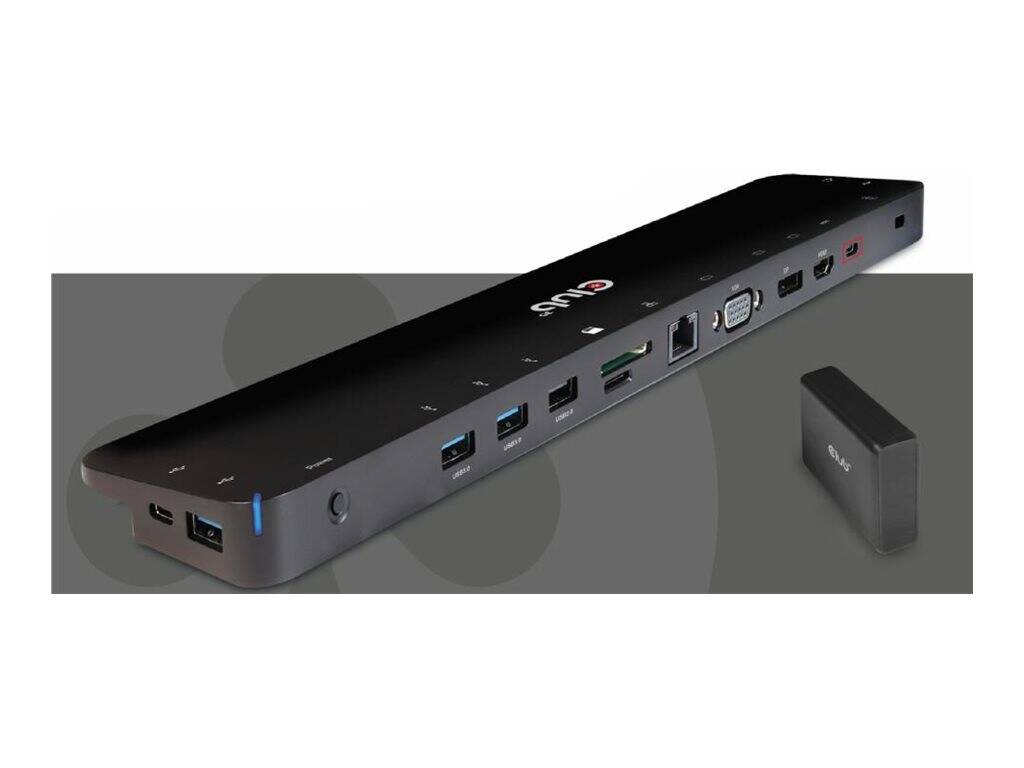

Club 3D CSV-1565 - Docking station - USB-C - VGA, HDMI, DP - GigE - 100 Watt | CSV-1565
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Docking station |
| Width | 35 cm |
| Depth | 7.5 cm |
| Height | 2 cm |
| Weight | 250 g |
| Video | |
| Max Resolution Details | 4K - 60 Hz (Single Display (DisplayPort 1.4 / HDMI)) ¦ 1080P - 60 Hz (Single Display (VGA)) |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card ¦ 1 (total) / 1 (free) x microSD |
| Interfaces | 1 x network - 10Base-T/100Base-TX/1000Base-TX - RJ-45 ¦ 1 x microphone / audio - 3.5mm audio jack ¦ 1 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x display / video - DisplayPort - 20 pin DisplayPort ¦ 1 x video - VGA - 15 pin HD D-Sub (HD-15) ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 3 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x USB-C 3.2 Gen 1 (data only) - 24 pin USB-C ¦ 1 x USB-C 3.2 Gen 2 with Power Delivery (100 W) - 24 pin USB-C |
| Miscellaneous | |

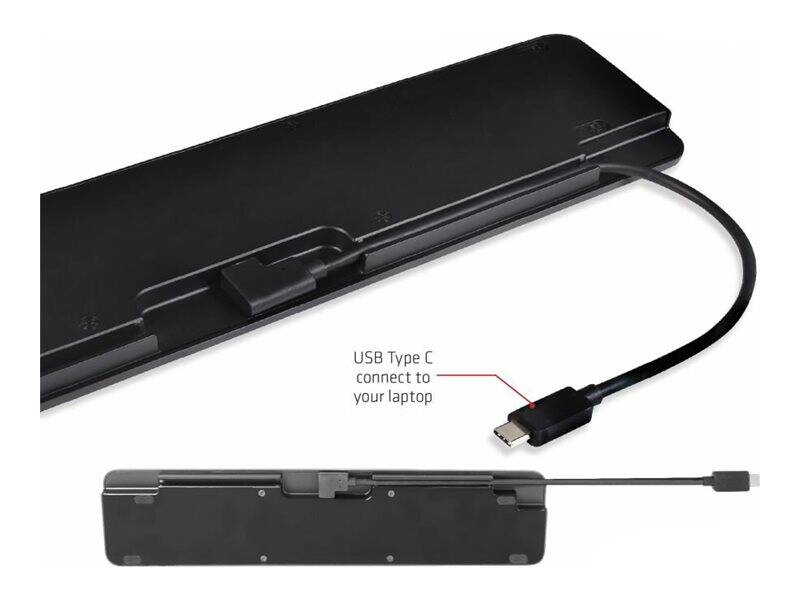

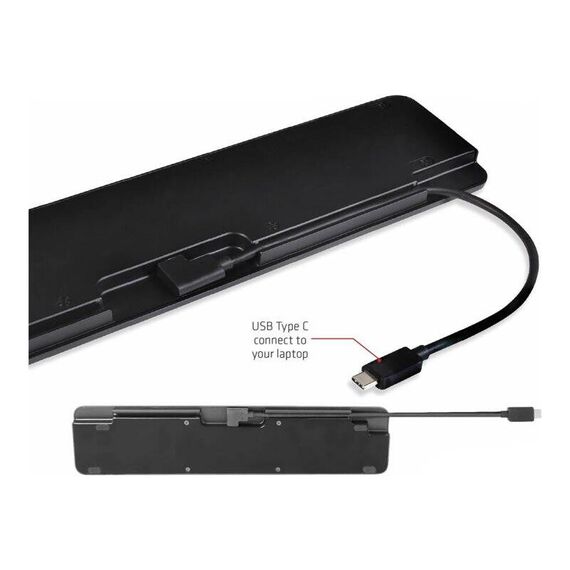

| Cables Included | 1 x USB-C cable - external - 27 cm |
| Included Accessories | USB-C charging cable |
| Features | Security lock slot (cable lock sold separately), LED indicator, MST (multi-stream transport), DisplayPort Alt Mode, SST (single-stream transport) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FCC, RoHS, EMI, DisplayPort 1.4, USB Power Delivery 3.0, DSC 1.2 |
| Power | |
| Power Device | Power adapter |
| Voltage Required | AC 100-240 V |
| Power Provided | 100 Watt |
| System Requirements | |
| OS Required | Apple MacOS X, Microsoft Windows |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 36.7 cm |
| Shipping Depth | 7.9 cm |
| Shipping Height | 10.9 cm |
| Shipping Weight | 949 g |
Features - Club 3D - CSV-1565
More Details
Product Code
04:429729
EAN Code
8719214472702
Manufacturer
Club 3D
