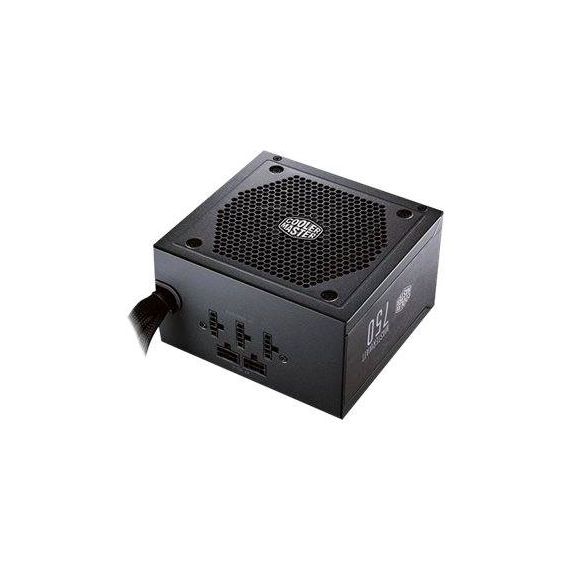

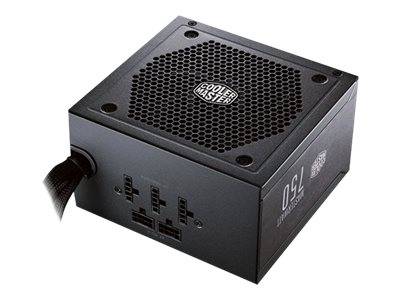

Cooler Master MasterWatt 750 / Power supply (internal) / ATX12V 2.4 / 80 PLUS Bronze / AC 100-240 V / 750 Watt / active PFC / Europe | MPX-7501-AMAAB-EU

Μάρκα: Cooler Master

ΚΩΔΙΚΟΣ (SKU):

MPX-7501-AMAAB-EU

€94.28

(€112.19 με Φ.Π.Α.)

Μη Διαθέσιμο

Κάνε μια ερώτηση

Find similar

Delivery

Payment options

Product Code04:239097 EAN Code4719512062432 ManufacturerCooler Master

Προδιαγραφές
Χαρακτηριστικά

Cooler Master MasterWatt 750 / Power supply (internal) / ATX12V 2.4 / 80 PLUS Bronze / AC 100-240 V / 750 Watt / active PFC / Europe | MPX-7501-AMAAB-EU

Description

The MasterWatt is a power supply with an innovative semi-fanless mode. When demand for power increases, a gradual fan curve provides measured cooling with little to no noise at any output level. Dual forward/DC-to-DC topology is employed to keep the voltage stable in all conditions. For increased performance, MasterWatt is equipped with power cables, which reduces resistance, thereby increasing efficiency.

Cooler Master MasterWatt 750 / Power supply | MPX-7501-AMAAB-EU

Special Features

Durable LDB bearing
Dual forward and DC-to-DC circuit design
More conductive PCI-e cables

Product features

Durable LDB bearing
Cooler Master Silencio FP fan combines sealed LDB bearings with quiet fan blades offering a long lifetime of quiet cooling.
Dual forward and DC-to-DC circuit design
The dual forward and DC-to-DC circuit design offers reliability and stability.
More conductive PCI-e cables
The MasterWatt uses 16 AWG cables for PCI-e cables. Less resistance and better efficiency, providing you a safer user environment.

Product Specification

Device Type	Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance	ATX12V 2.4
Localisation	Europe
Input Voltage	AC 100-240 V
Frequency Required	50 - 60 Hz
Power Output Connectors Details	1 x power 24 pin ATX ¦ 9 x 15 pin Serial ATA power ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 3 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector ¦ 4 x 8 pin PCI Express power with detachable 2 pin section
Output Voltage	+3.3, +5, ±12 V
Power Capacity	750 Watt
Output Current	+3.3V - 22 A ¦ +5V - 22 A ¦ +12V - 62.5 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Efficiency	85%
80 PLUS Certification	80 PLUS Bronze
MTBF	100,000 hours
Cooling System	120 mm fan
Features	Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, LDB bearing cooling fan
Compliant Standards	BSMI, CB, CCC, FCC, TUV Rh, cTUVus, KC, EAC, RCM, ErP Lot 6 2013 Ready
Service & Support	Limited warranty - 5 years
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Width	15 cm
Depth	14 cm
Height	8.6 cm
Weight	2.027 kg
Shipping Width	27.6 cm
Shipping Depth	11.2 cm
Shipping Height	19.4 cm
Shipping Weight	2.389 kg
