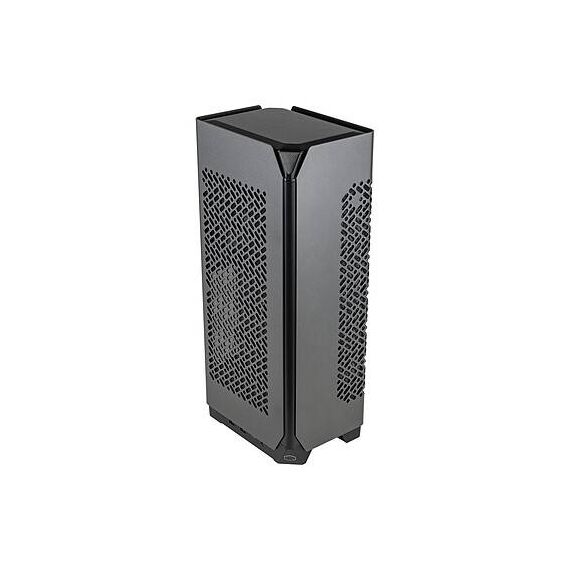

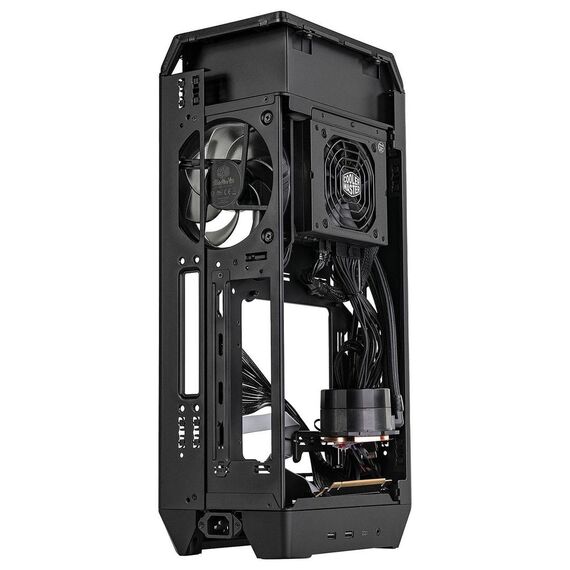

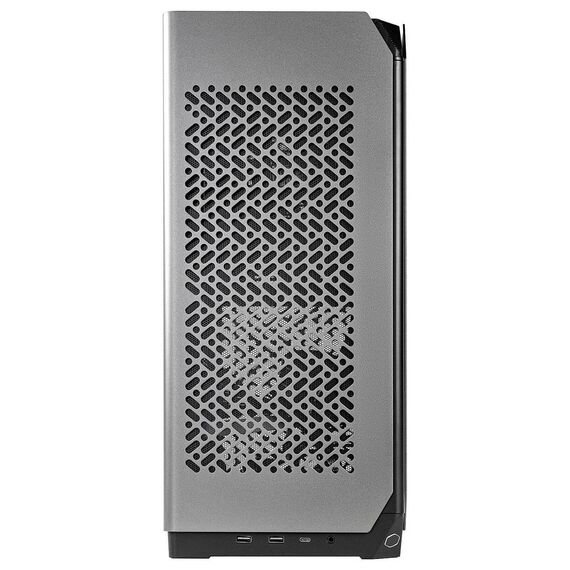

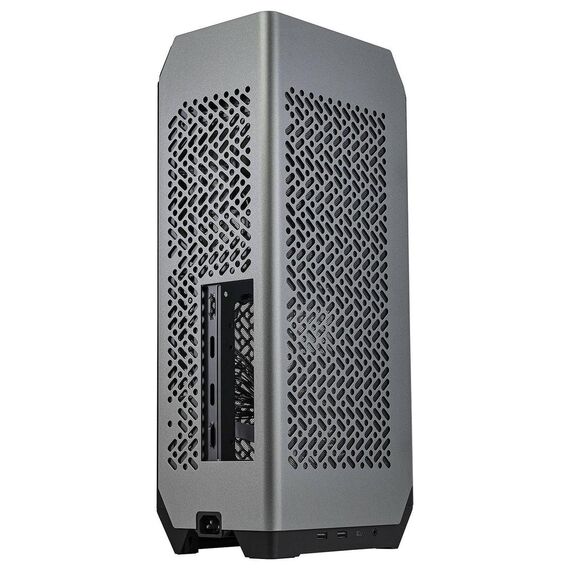

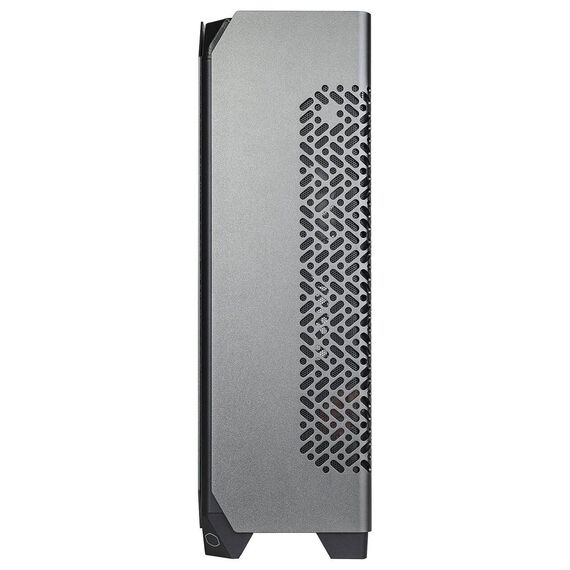

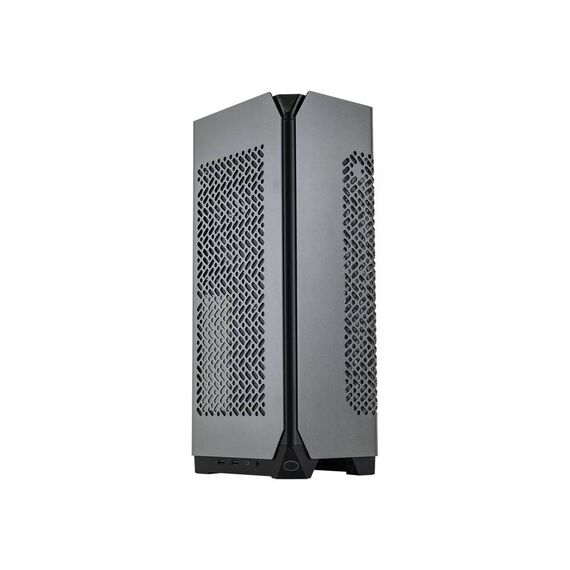

Cooler Master NCORE 100 MAX / USFF / ITX 850 Watt (ATX12V 3.0/ EPS12V/ SFX12V 3.42) / dark grey / USB/Audio | NR100-MNNN85-SL0
Please sign in so that we can notify you about a reply
Product Specification
| Form Factor | Ultra small form factor |
| Max Mainboard Size | ITX |
| Supported Motherboards | ITX |
| Motherboard Power Connectors | 24(20) pin power connector with detachable 4 pin section, 8-pin ATX12V connector |
| Internal Bays Qty | 1 |
| Product Material | Plastic, aluminium, steel |
| Colour | Dark grey |
| Cooling System | Rear: 120 mm fan x 1 / 1800 rpm |
| CPU Cooler Max Height | 48 mm |
| Video Card Max Length | 357 mm |
| Power Supply Max Length | 100 mm |
| System Cabinet Features | Toolless design, Open Frame design, 38 mm customed radiator, CryoFuze thermal paste |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Bays | 1 (total) / 1 (free) x internal - 2.5" |
| Expansion Slots | 3 |
| Interfaces | 2 x USB 3.2 Gen 1 ¦ 1 x USB 3.2 Gen 2x2 ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out - mini-jack |
| Miscellaneous | Miscellaneous |
| Included Accessories | PCIe x16 Gen 4 riser cable |
| Compliant Standards | TUV, BSMI, CB, CCC, FCC, cTUVus, EAC, RCM, UKCA |
| Power | Power |
| Power Device | Power supply |
| Specification Compliance | ATX12V 3.0/ EPS12V/ SFX12V 3.42 |
| Installed Qty | 1 |
| Max Supported Qty | 1 |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Power Provided | 850 Watt |
| Power Supply Features | Active Power Factor Correction (PFC), short circuit protection, overcurrent protection, overpower protection, undervoltage protection, overtemperature protection |
| 80 PLUS Certification | 80 PLUS Gold |
| Dimensions & Weight | Dimensions & Weight |
| Width | 21.2 cm |
| Depth | 15.5 cm |
| Height | 45.7 cm |
| Weight | 6.3 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 29.8 cm |
| Shipping Depth | 57 cm |
| Shipping Height | 27.5 cm |
| Shipping Weight | 8.4 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
Features - Cooler Master - NR100-MNNN85-SL0
More Details
Product Code
04:463786
EAN Code
4719512143582
Manufacturer
Cooler Master
