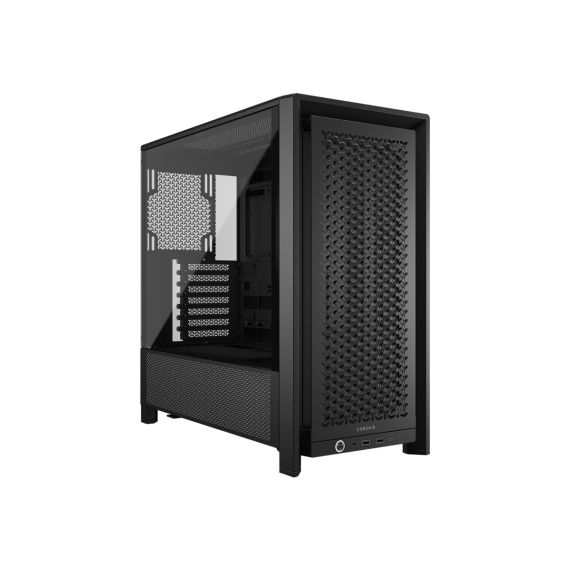

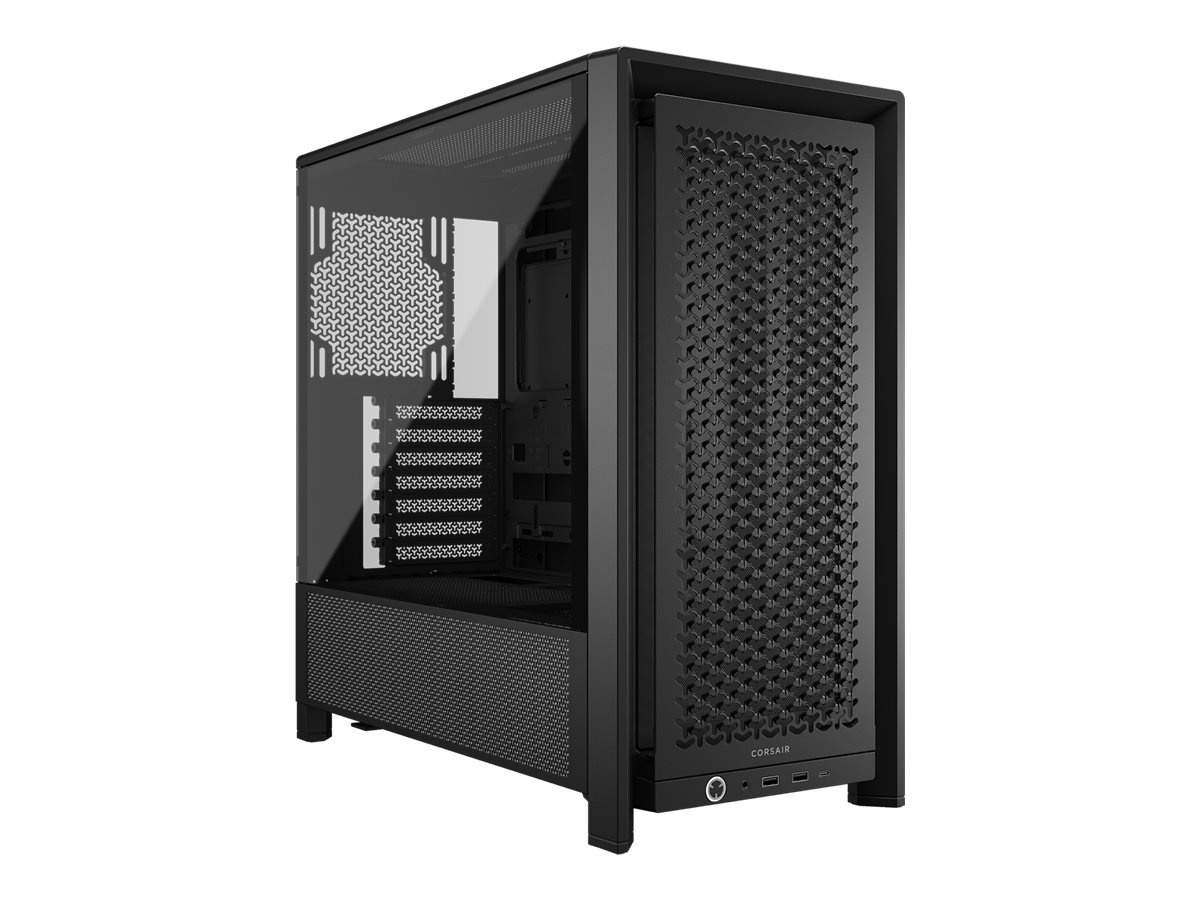

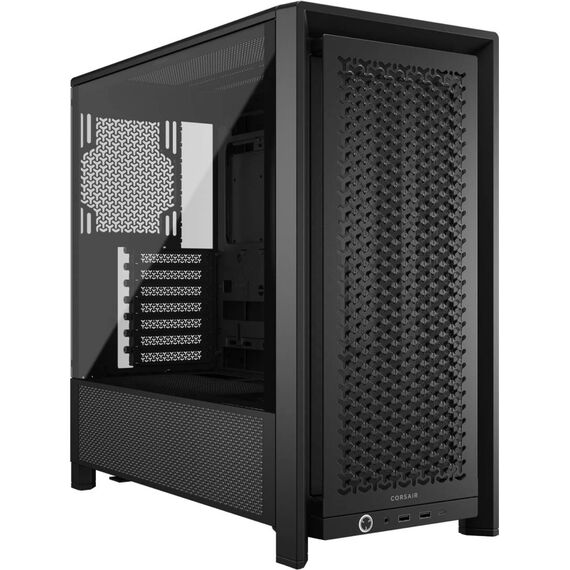

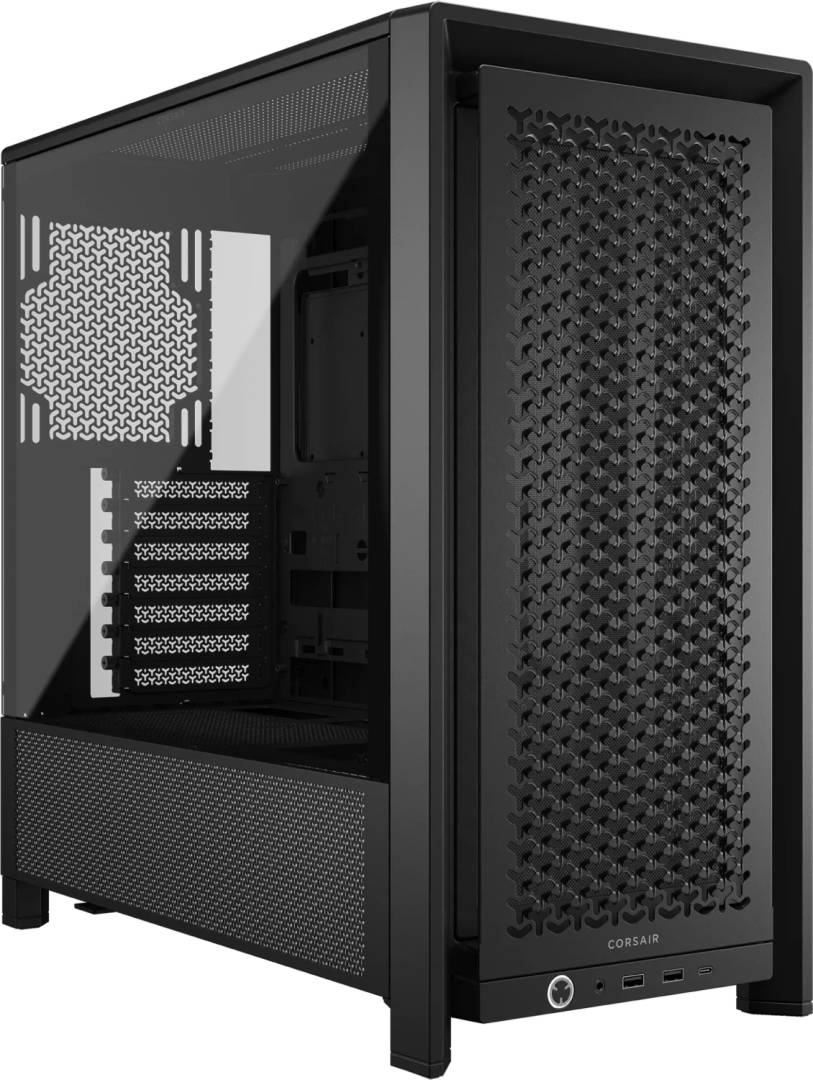

CORSAIR FRAME 4000D - Mid tower - extended ATX - windowed side panel (tempered glass) - no power supply (ATX) - black - USB/Audio | CC-9011290-WW
Please sign in so that we can notify you about a reply
Product Features
- Spacious internal design
The chassis supports 4 internal bays, accommodating a variety of storage options and allowing for flexible build configurations. - Versatile cooling support
Designed to support 2 x 140 mm fans or multiple sizes of radiators, maximizing airflow while ensuring thermal performance. - User-friendly connectivity
Front panel connectors include USB 3.2 Gen 1 and USB-C 3.2 Gen 2, providing fast access for peripherals and devices. - Robust construction
Crafted from a combination of plastic, steel, and tempered-glass materials, this chassis offers durability and a sleek look. - Flexible motherboard support
Compatible with various motherboard sizes including Extended ATX, ATX, microATX, and Mini-ITX, catering to a range of builds.
Special Fetures
- Modular tower design allows for easy customization
- 3D Y-pattern airflow front panel for cooling
- Tempered-glass windowed side panels for visibility
- Supports multiple fan and radiator configurations
- Front panel connectivity options including USB-C
Product Specification
| Form Factor | Mid tower |
| Windowed Side Panel | Yes |
| Windowed Side Panel Material | Tempered glass |
| Max Mainboard Size | Extended ATX |
| Supported Motherboards | Extended ATX, ATX, microATX, Mini-ITX |
| Internal Bays Qty | 4 |
| Product Material | Steel, tempered glass, plastic |
| Colour | Black |
| Cooling System | Front: 120 mm fan mount x 3 / 2 x 140/200 mm fan or 120/140/240/280/360 mm radiator supported <br /> Top: 120 mm fan mount x 3 / 2 x 140 mm fan or 120/140/240/280/360mm radiator supported <br /> Side: 120 mm fan mount x 3 / 2 x 140 mm fan or 120/140/240/280/360mm radiator supported <br /> PSU shroud: 120 mm fan mount x 2 <br /> Rear: 120/140 mm fan mount x 1 / 120/140 mm radiator supported |
| CPU Cooler Max Height | 170 mm |
| Video Card Max Length | 370 mm |
| Power Supply Max Length | 220 mm |
| System Cabinet Features | InfiniRail fan mounting system, support back-connect motherboard, 3D Y-parttern airflow front panel, fully modular, graphics card holder, integrated cable management, cable management system (30 mm clearance), vertical/horizontal graphic card orientation, top panel dust filter, side magnetic dust filter, bottom dust filter |
| Expansion / Connectivity | |
| Expansion Bays | Internal - 2x2.5" / 1x3.5" shared <br /> Internal - 2x2.5" / 1x3.5" shared |
| Expansion Slots | 7 x horizontal <br /> 3 x vertical |
| Interfaces | 1 x USB-C 3.2 Gen 2 <br /> 2 x USB 3.2 Gen 1 <br /> 1 x headphone/microphone - mini-jack |
| Miscellaneous | |
| Included Accessories | Side fan mounting bracket, side panel blank-out, graphic card holder, front I/O adapter, cable ties, screws |
| Power | |
| Power Device | No power supply |
| Specification Compliance | ATX |
| Max Supported Qty | 1 |
| Dimensions & Weight | |
| Width | 23.9 cm |
| Depth | 49 cm |
| Height | 48.6 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
