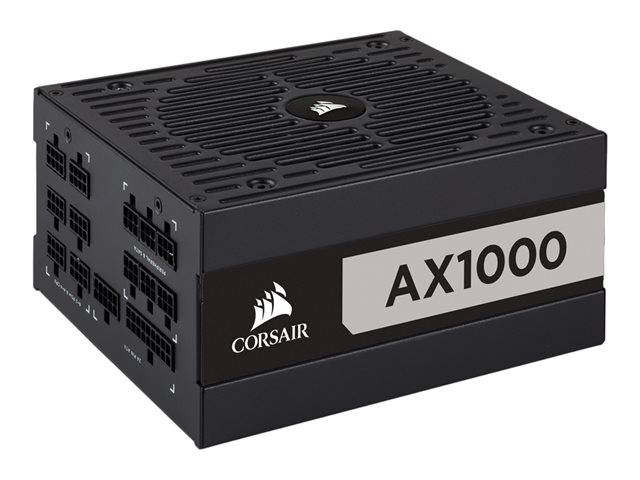

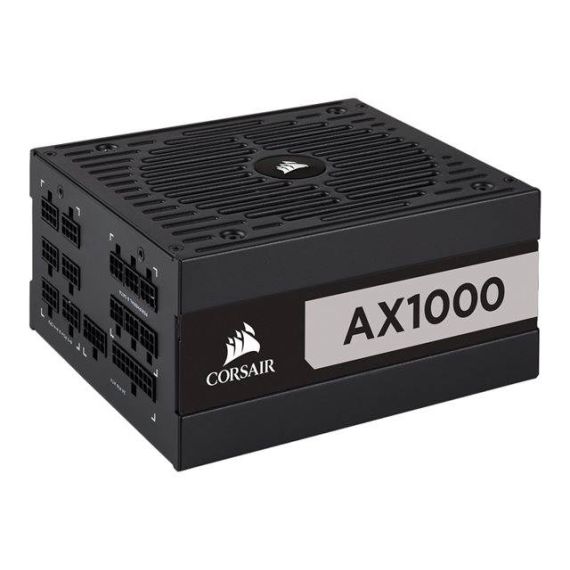

CORSAIR AX Series AX1000 / Power supply (internal) / ATX12V 2.4/ EPS12V / 80 PLUS Titanium / AC 100-240 V / 1000 Watt / Europe | CP-9020152-EU
|
Description CORSAIR AX Series fully modular power supplies deliver efficient power and ultra-low noise operation to complete your most ambitious builds. CORSAIR AX Series AX1000 / Power supply (internal) | CP-9020152-EUSpecial Features
Product features
|
Product Specification
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V 2.4/ EPS12V |
| PSU Form Factor | ATX |
| Localisation | Europe |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50-60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 8 x 8 pin PCI Express power with detachable 2 pin section ¦ 16 x 15 pin Serial ATA power ¦ 1 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Max Electric Current | 83 A |
| Power Capacity | 1000 Watt |
| Output Current | +12V - 83 A ¦ -12V - 0.3 A ¦ +5V - 25 A ¦ +5VSB - 3 A ¦ +3.3V - 25 A |
| Efficiency | 94% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Titanium |
| Included Accessories | Case badge, cable ties, cable bag |
| MTBF | 100,000 hours |
| Cooling System | 135 mm fan |
| Features | Zero RPM fan mode, fluid dynamic bearing cooling fan, fully modular, magnetic side labels |
| Service & Support | Limited warranty - 10 years |
| Width | 17 cm |
| Depth | 15 cm |
| Height | 8.6 cm |
Features - Corsair - CP-9020152-EU
More Details
Product Code
03:103096
EAN Code
0843591077828
Manufacturer
Corsair
