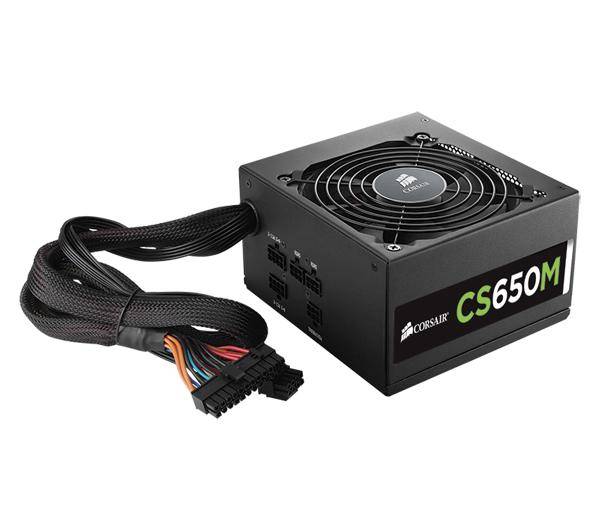

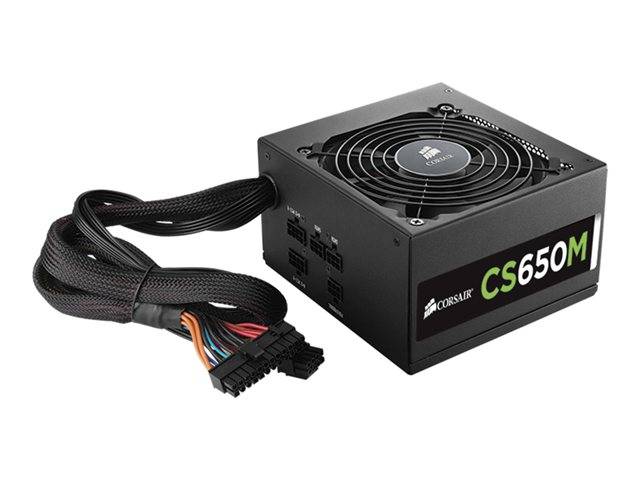

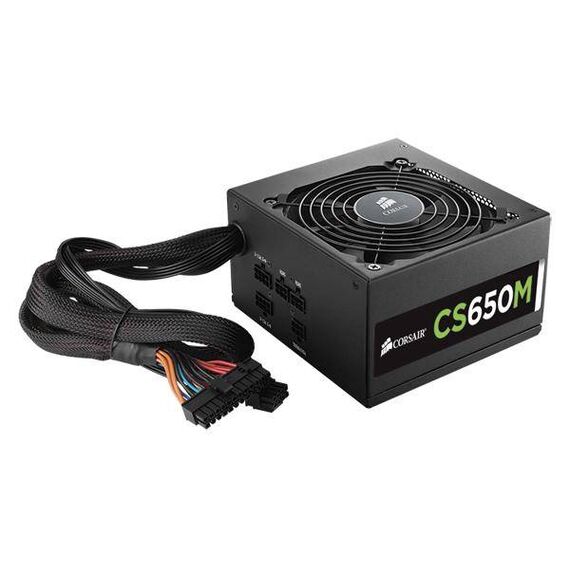

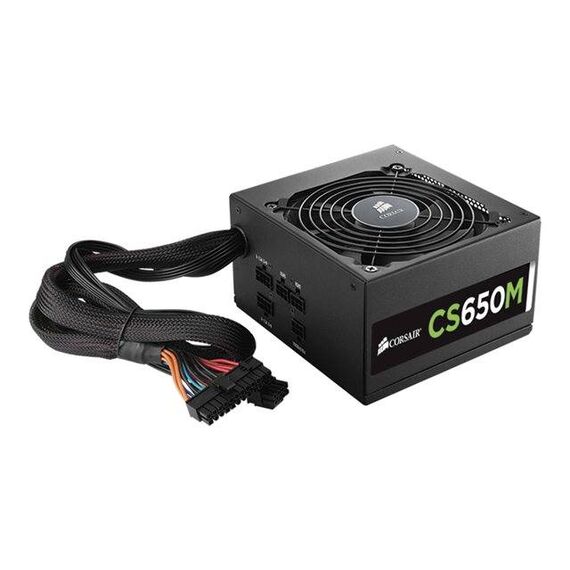

Corsair CS Series CS650M / Power supply ( internal ) / ATX12V 2.4/ EPS12V 2.92 / 80 PLUS Gold / AC 100-240 V / 650 Watt / active PFC / Europe | CP-9020077-EU
Corsair CS Series CS650M / Power supply ( internal ) / ATX12V 2.4/ EPS12V 2.92 / 80 PLUS Gold / AC 100-240 V / 650 Watt / active PFC / Europe | CP-9020077-EU
Description CS series modular power supplies are ideal for basic desktop systems where low energy use, low noise, and simple installation are essential. 80 PLUS Gold efficiency reduces operating cost and excess heat. Flat, sleeved black modular cables with clearly-marked connectors make installation fast and straightforward, with good-looking results. Special Features
Product features
|
Product Specification
Device Type | Power supply - active Power Factor Correction (PFC) - internal |
Specification Compliance | ATX12V 2.4/ EPS12V 2.92 |
Localisation | Europe |
Input Voltage | AC 100-240 V |
Frequency Required | 47 - 63 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 4 PIN internal power ¦ 6 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector ¦ 4 x 8 pin PCI Express power with detachable 2 pin section |
Output Voltage | +3.3, +5, ±12 V |
Power Capacity | 650 Watt |
Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 51 A ¦ -12V - 0.8 A ¦ +5VSB - 3 A |
Efficiency | 92% |
80 PLUS Certification | 80 PLUS Gold |
MTBF | 150,000 hours |
Features | Over voltage protection, overpower protection, temperature auto control, undervoltage protection, short-circuit protection |
Compliant Standards | UL, TUV, BSMI, cUL, CB, CCC, FCC, RoHS, WEEE, ICES, KC, EAC, RCM |
Service & Support | Limited warranty - 3 years |
Width | 15.6 cm |
Depth | 14 cm |
Height | 8.6 cm |
Shipping Weight | 2.327 kg |
