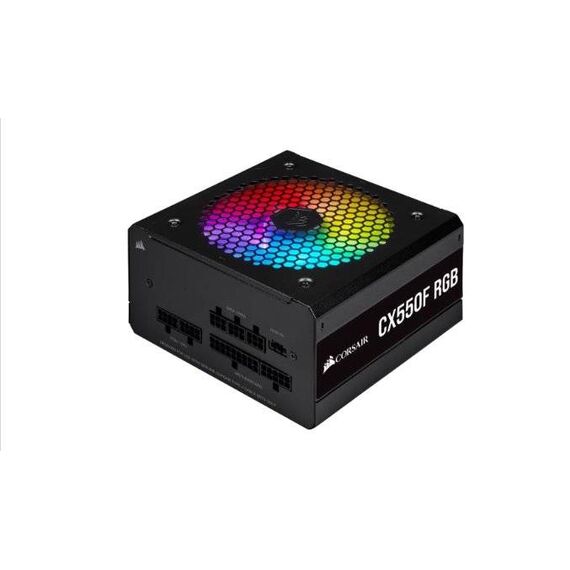

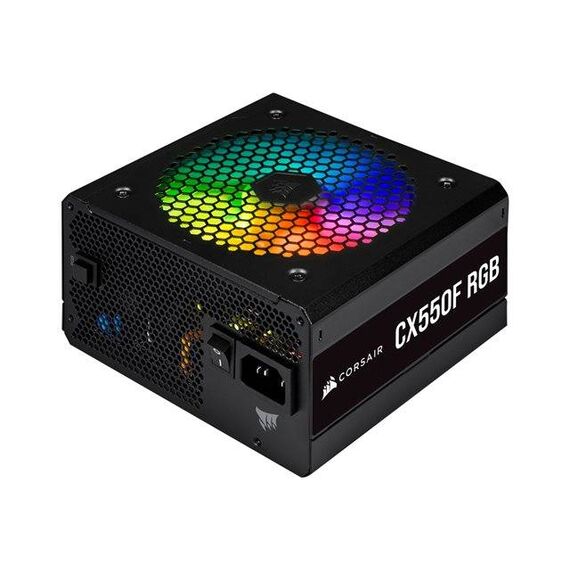

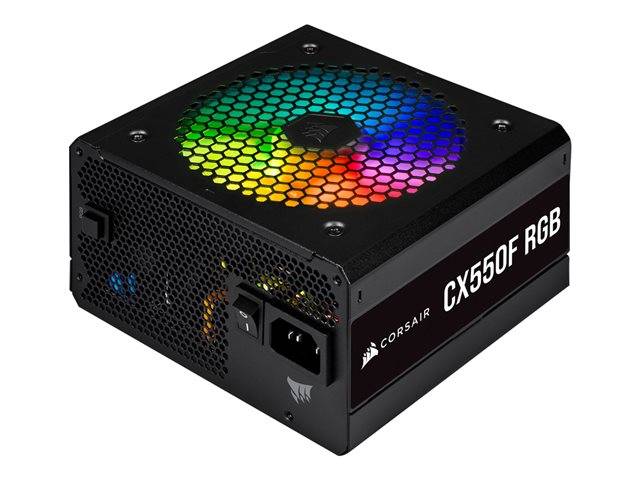

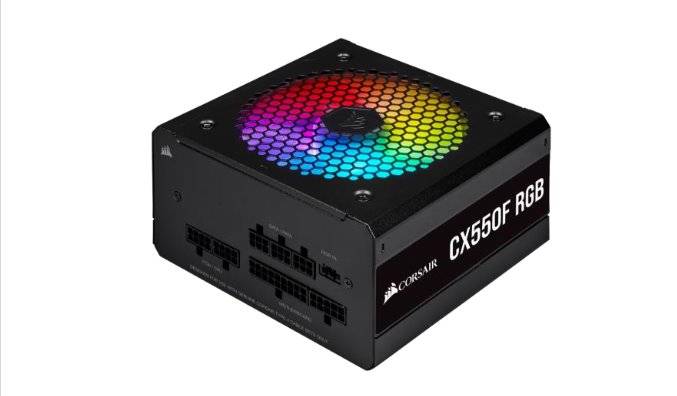

CORSAIR CX Series CX550F RGB / Power supply (internal) / ATX12V 2.4/ EPS12V 2.92 / 80 PLUS Bronze / AC 100-240 V / 550 Watt / Europe / black | CP-9020216-EU
CORSAIR CX Series CX550F RGB / Power supply (internal) / ATX12V 2.4/ EPS12V 2.92 / 80 PLUS Bronze / AC 100-240 V / 550 Watt / Europe / black | CP-9020216-EU
Description
CORSAIR CX550F RGB Series fully modular power supplies deliver reliable 80 PLUS Bronze efficient power to your system, alongside vibrant customizable lighting from a 120mm RGB fan and a clean aesthetic.
CORSAIR CX Series CX550F RGB / Power supply (internal) | CP-9020216-EU
Special Features
- Brilliant lighting, intelligently controlled
- Efficient, fully modular power
- Optimized for low noise
- Advanced technology and reliability
- Compact 140mm long casing
- Fully modular
Product features
- Go with the glow
CX-F RGB power supplies light up the internals of your PC with eight individually addressable RGB LEDs and fully modular cables for easy cable management. - Brilliant lighting, intelligently controlled
Each CX-F RGB PSU features a brilliantly lit 120mm RGB fan with eight individually addressable RGB LEDs to give beautiful accent lighting to your build. - Efficient, fully modular power
CORSAIR CX-F RGB Series fully modular power supplies deliver reliable 80 PLUS Bronze efficient power to your system and let you use only the cables you need for a cleaner build. - Optimized for low noise
CX-F features a finely tuned 120mm RGB fan with a dedicated fan curve to keep noise levels down. - Technology and reliability
For consistent, reliable power and superb electrical performance, each CX-F RGB power supply features a robust LLC topology with DC-DC conversion and 105°C rated 100% Japanese primary capacitors. And Microsoft Modern Standby support ensures extremely fast wake-from-sleep times and better low-load efficiency. - Compact 140mm long casing
Ensures an easy fit in almost all modern enthusiast PC cases. - Fully modular
Reduce cable clutter by only connecting the cables that your system needs.
Product Specification
Device Type | Power supply - internal |
Specification Compliance | ATX12V 2.4/ EPS12V 2.92 |
PSU Form Factor | ATX |
Colour | Black |
Localisation | Europe |
Input Voltage | AC 100-240 V |
Frequency Required | 47 - 63 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 7 x 15 pin Serial ATA power |
Output Voltage | +3.3, +5, ±12 V |
Power Capacity | 550 Watt |
Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 45.8 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
Efficiency | 88% |
Modular Cable Management | Yes |
80 PLUS Certification | 80 PLUS Bronze |
Included Accessories | Cable ties |
Cables Included | 2 x RGB sync cable - external |
MTBF | 100,000 hours |
Cooling System | 120 mm fan |
Features | Corsair Link, RGB backlit, Corsair iCUE, DC-DC technology, fully modular |
Service & Support | Limited warranty - 5 years |
Width | 15 cm |
Depth | 14 cm |
Height | 8.6 cm |
Weight | 1.8 kg |
Shipping Width | 30.2 cm |
Shipping Depth | 18.4 cm |
Shipping Height | 12.9 cm |
Shipping Weight | 2.03 kg |
