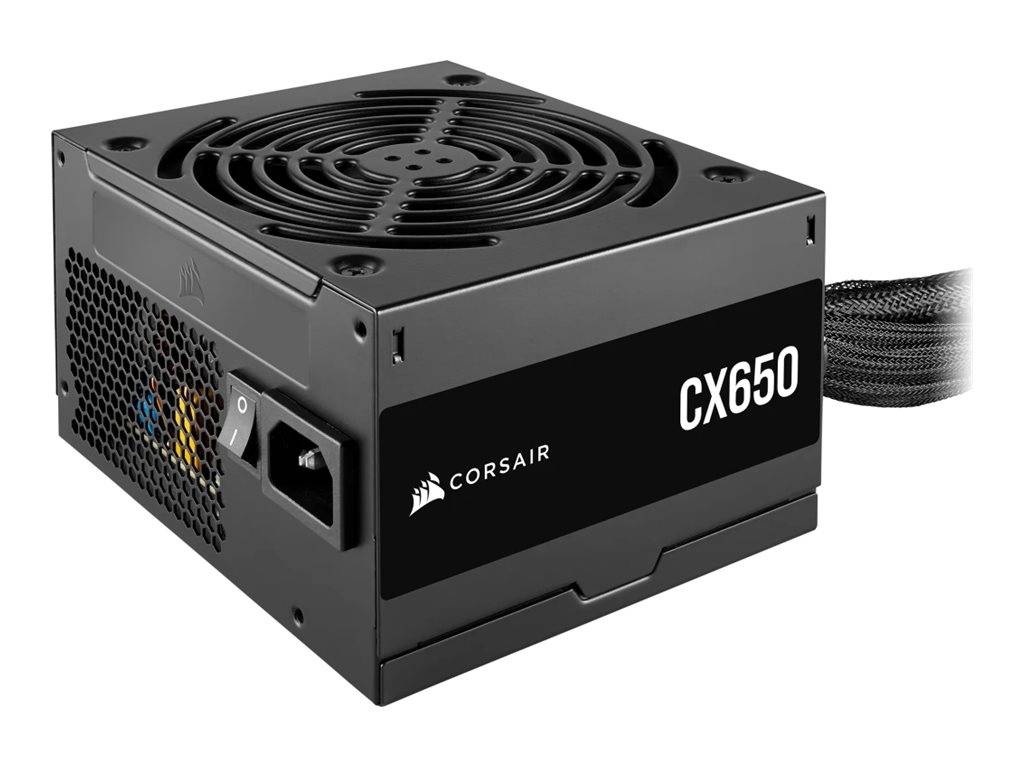

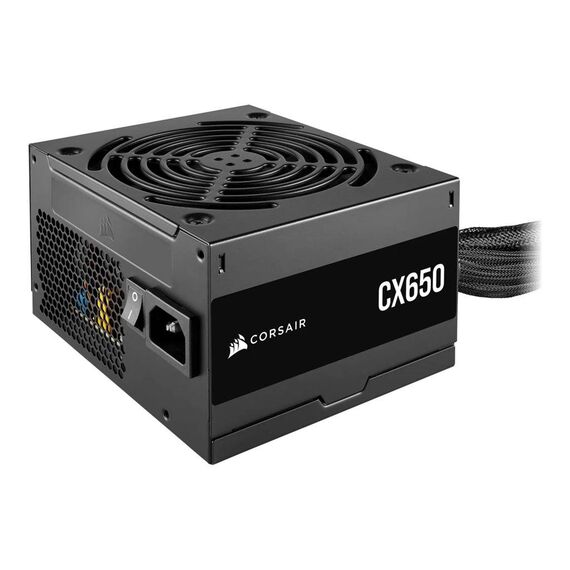

CORSAIR CX Series CX650 / Power supply (internal) / ATX12V / EPS12V / 80 PLUS Bronze / AC 100-240 V / 650 Watt | CP-9020278-EU
Product Features
- Low noise
80 PLUS Bronze certified efficiency and clever fan design allow for little or no detectable fan noise during regular operation. - Good looks
The matte black finish, black-sleeved cables and black connectors help give your system a restrained, high-tech look. - Reliable and compatible
CX Series is built and tested to strict standards for trouble-free installation and smooth operation. - Corsair engineering and quality control
Every Corsair power supply is designed by California engineering team and built to exact specifications. The same care that goes into the design and testing of the renowned high-power enthusiast power supplies also goes into the CX Series, because you need confidence and reliability regardless of your build budget. - Ample connectors and long cables
Long cables make CX Series suitable for installation even in full-height tower cases, and the generous cable count allows you to power multiple components and storage devices. - Large-diameter, thermally controlled fan
Once you've installed a PSU, you shouldn't have to think about it. Employing a thermally controlled fan makes the CX Series virtually silent at idle, and the large diameter reduces noise even when you're pushing your system hard.
Special Features
- Low noise
- Good looks
- Reliable and compatible
- Corsair engineering and quality control
- Ample connectors and long cables
- Large-diameter, thermally controlled fan
Product Specification
Device Type | Power supply - internal |
Specification Compliance | ATX12V / EPS12V |
PSU Form Factor | ATX |
Power Device | Power Device |
Input Voltage | AC 100-240 V |
Frequency Required | 47 - 63 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 2 x 4 PIN internal power ¦ 3 x 15 pin Serial ATA power |
Output Voltage | +3.3, +5, +12 V |
Power Capacity | 650 Watt |
Output Current | +3.3V - 24 A ¦ +5V - 20 A ¦ +12V - 52 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
Efficiency | 88% |
80 PLUS Certification | 80 PLUS Bronze |
Miscellaneous | Miscellaneous |
Included Accessories | Mounting screw |
Cables Included | AC power cable |
MTBF | 100,000 hours |
Cooling System | 120 mm fan |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 5 years |
Dimensions & Weight | Dimensions & Weight |
Width | 15 cm |
Depth | 12.5 cm |
Height | 8.6 cm |
