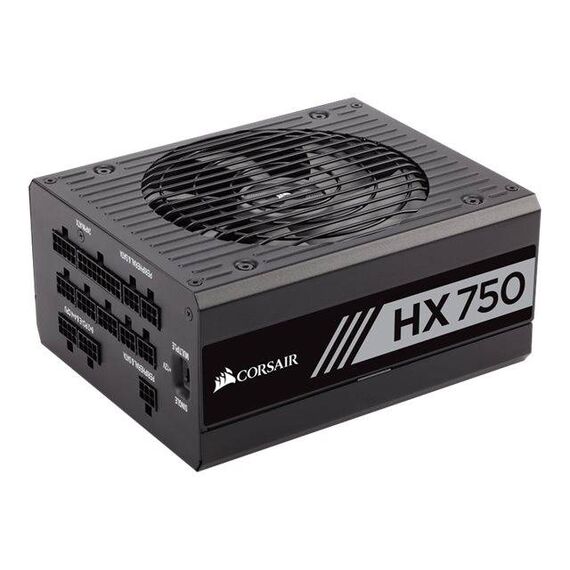

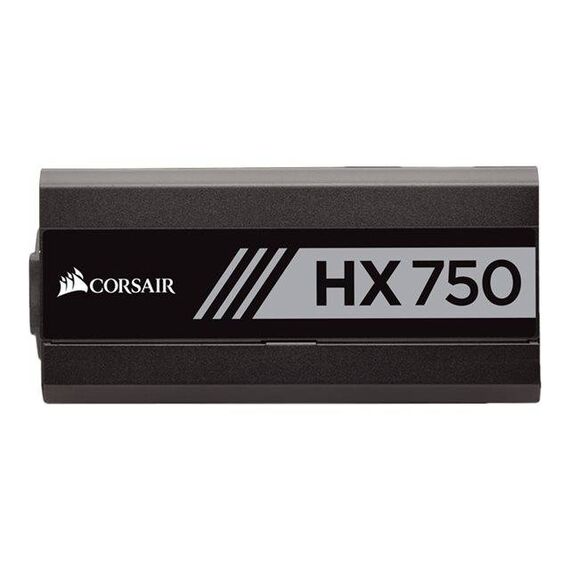

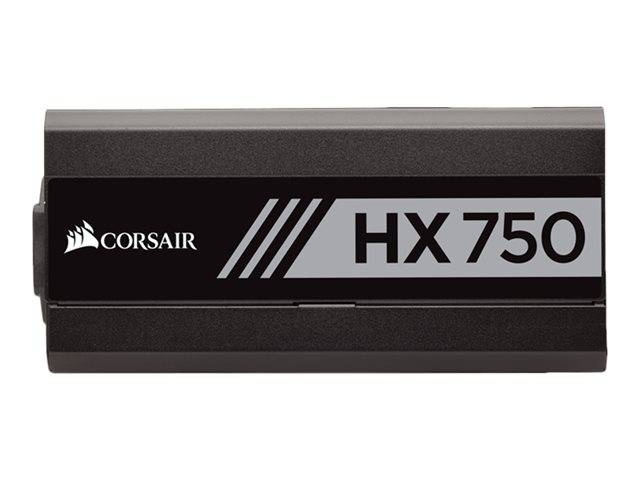

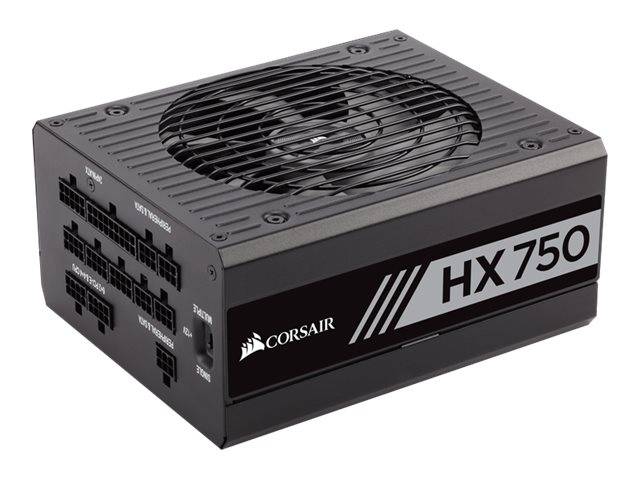

Corsair HX Series HX750 / Power supply (internal) / ATX12V 2.4/ EPS12V 2.92 / 80 PLUS Platinum / AC 100-240 V / 750 Watt / Europe | CP-9020137-EU
Corsair HX Series HX750 / Power supply (internal) / ATX12V 2.4/ EPS12V 2.92 / 80 PLUS Platinum / AC 100-240 V / 750 Watt / Europe | CP-9020137-EU
Description CORSAIR HX series power supplies give you extremely tight voltage regulation, quiet operation, Platinum-certified efficiency, and a fully modular cable set. Built with all Japanese 105°C capacitors, they're a great choice for high performance PCs where reliability is essential. Special Features
Product features
|
Product Specification
Device Type | Power supply - internal |
Specification Compliance | ATX12V 2.4/ EPS12V 2.92 |
Localisation | Europe |

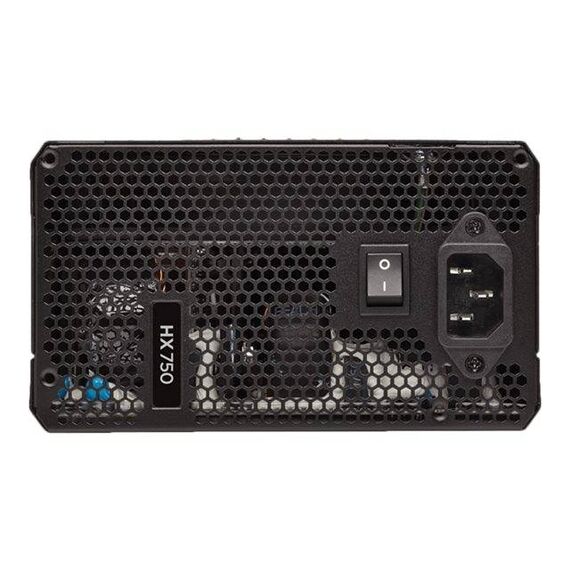

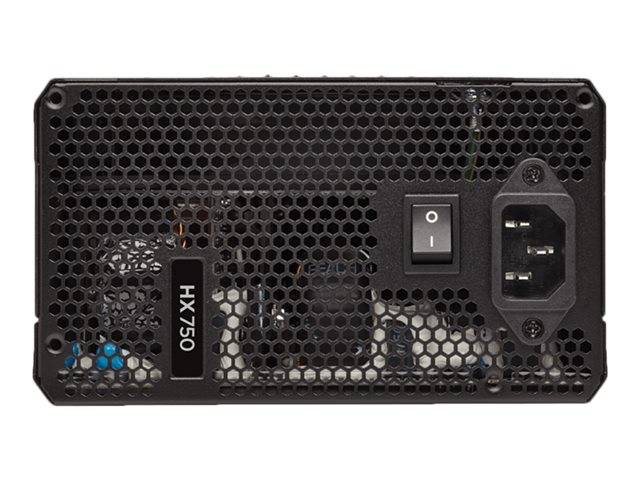

Input Voltage | AC 100-240 V |
Frequency Required | 47 - 63 Hz |

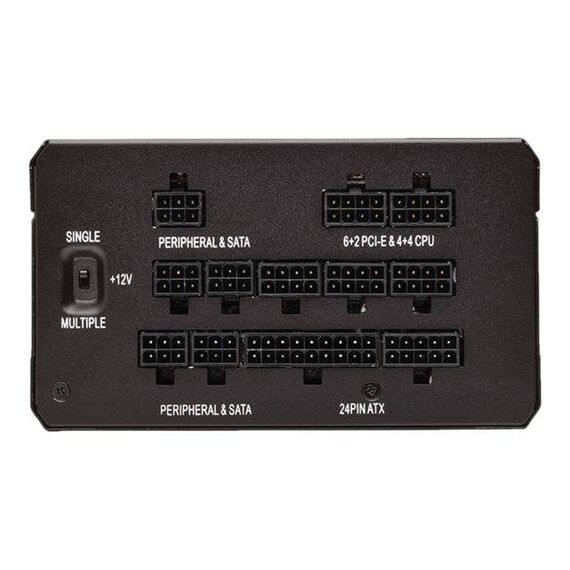

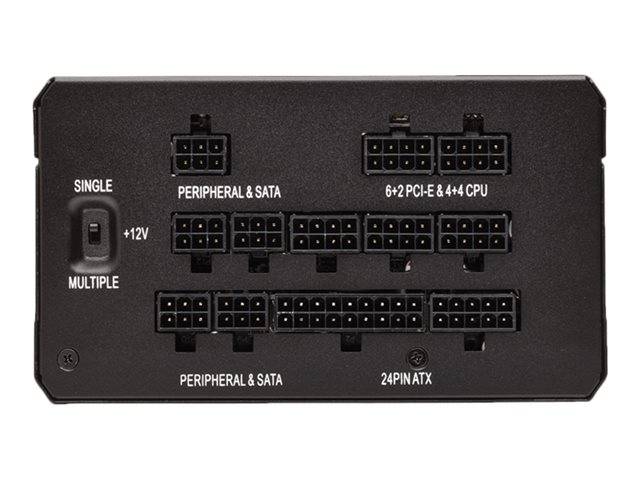

Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 8 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector |
Output Voltage | +3.3, +5, ±12 V |
Power Capacity | 750 Watt |
Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 62.5 A ¦ -12V - 0.8 A ¦ +5VSB - 3 A |
80 PLUS Certification | 80 PLUS Platinum |
Included Accessories | Case badge, cable ties, mounting kit |
Cables Included | Power cable kit |

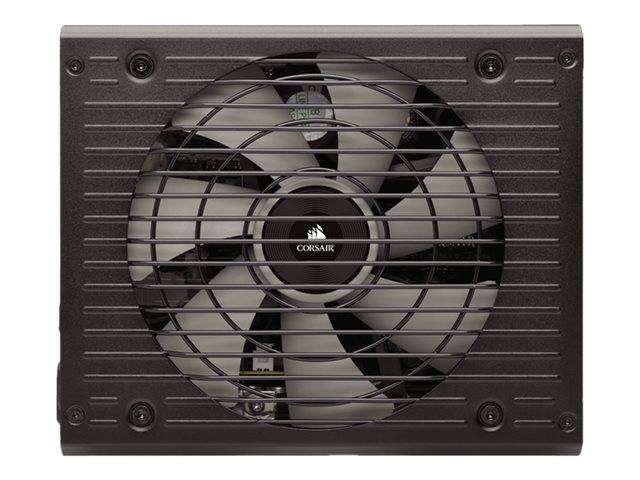

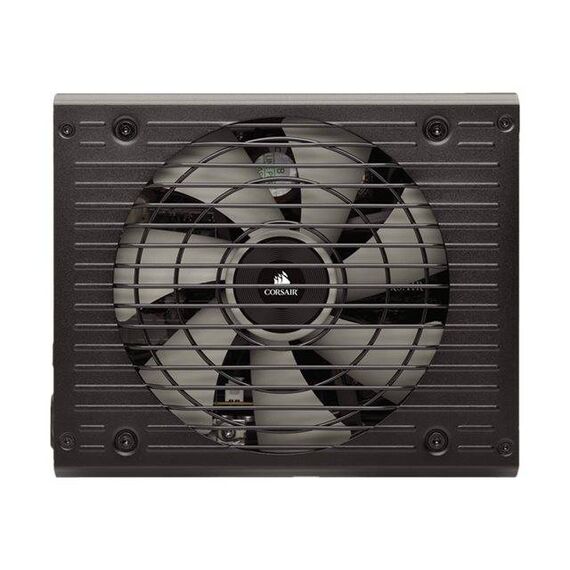

Cooling System | 135mm fan |
Features | Sleeved cables, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, temperature controlled fan, Zero RPM fan mode, fluid dynamic bearing cooling fan, switchable single/multi 12V rails, temperature sensor |
Compliant Standards | CSA, UL, TUV, C-Tick, cUL, CB, FCC, RoHS, WEEE, ICES, REACH, KC, China RoHS, RCM, CU |
Service & Support | Limited warranty - 10 years |
Width | 15 cm |
Depth | 18 cm |
Height | 8.6 cm |
Weight | 1.92 kg |
