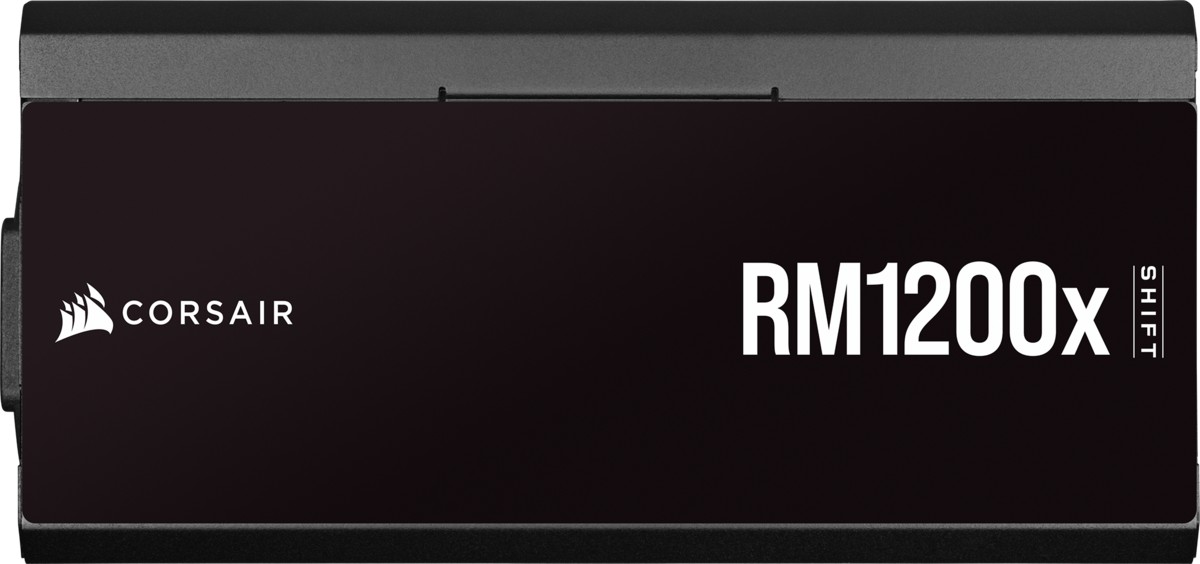

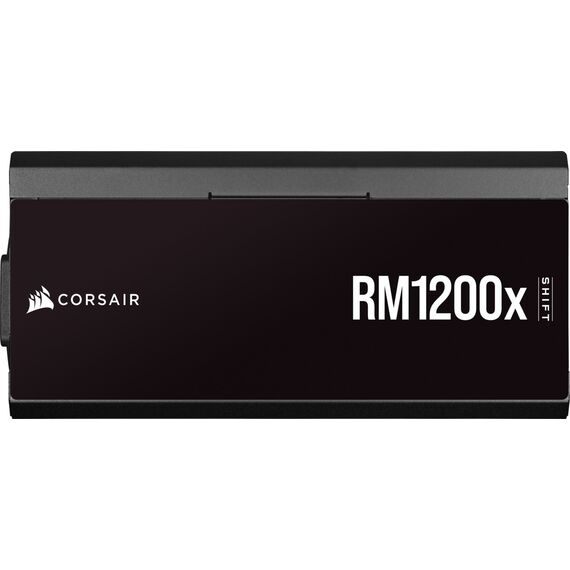

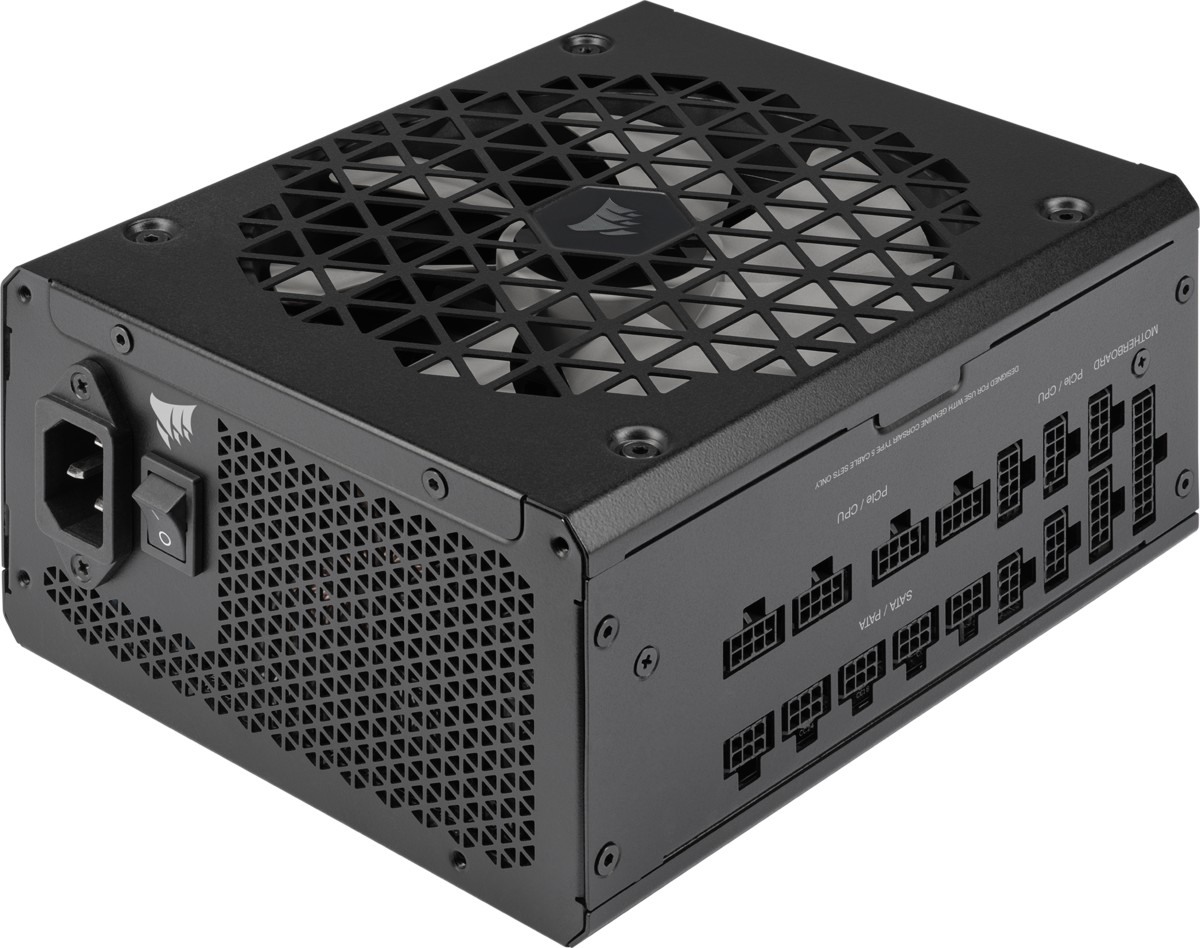

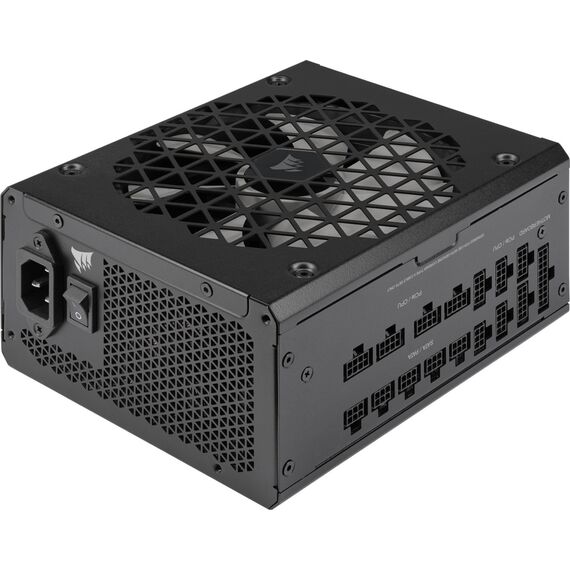

CORSAIR RMx Series RM1200X SHIFT / Power supply (internal) / ATX12V 3.0/ EPS12V 2.92 / 80 PLUS Gold / AC 100-240 V / 1200 Watt / Europe | CP-9020254-EU
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V 3.0/ EPS12V 2.92 |
| PSU Form Factor | ATX |
| Localisation | Europe |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 12VHPWR ¦ 4 x 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 16 x 15 pin Serial ATA power ¦ 8 x 4 PIN internal power |
| Output Voltage | +3.3, +5, +12 V |
| Power Capacity | 1200 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 100 A ¦ +5VSB - 3 A |
| Efficiency | 90% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | Miscellaneous |
| Included Accessories | Cable ties, mounting screw |
| Cables Included | AC input cable ¦ Power 24 pin ATX modular cable 61 cm ¦ 16-pin 12VHPWR power cable 65 cm ¦ 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable 75 cm ¦ 4 x 8 pin PCI Express power with detachable 2 pin section modular cable 65 cm ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section modular cable 65 cm ¦ 4 x power 15 pin SATA cable 80 cm ¦ 2 x 4 pin internal power cable 75 cm |
| MTBF | 100,000 hours |
| Cooling System | 140 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, DC-DC technology, Zero RPM fan mode, fluid dynamic bearing cooling fan, fully modular, LLC resonant converter technology, Modern Standby compatible |
| Compliant Standards | EMC, RoHS, LVD, EN/IEC 63000:2018, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN IEC 62368-1:2020+A11:2020, EN IEC 61000-3-2:2019+A1:2021 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 10 years |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 18 cm |
| Height | 8.6 cm |
| Weight | 2 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 21.4 cm |
| Shipping Depth | 30.2 cm |
| Shipping Height | 12.9 cm |
| Shipping Weight | 4 kg |
Features - Corsair - CP-9020254-EU
More Details
Product Code
03:203285
EAN Code
0840006654049
Manufacturer
Corsair
