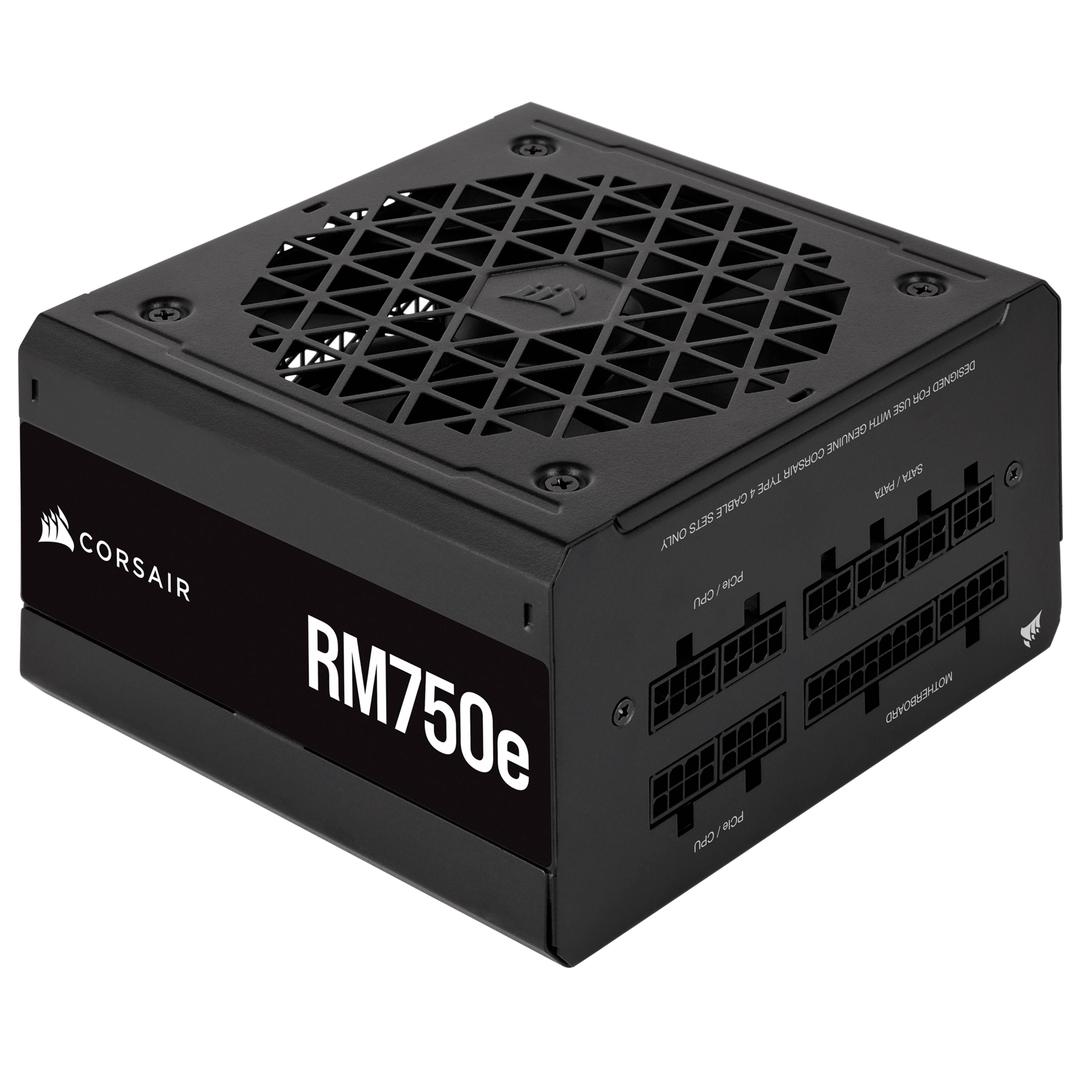

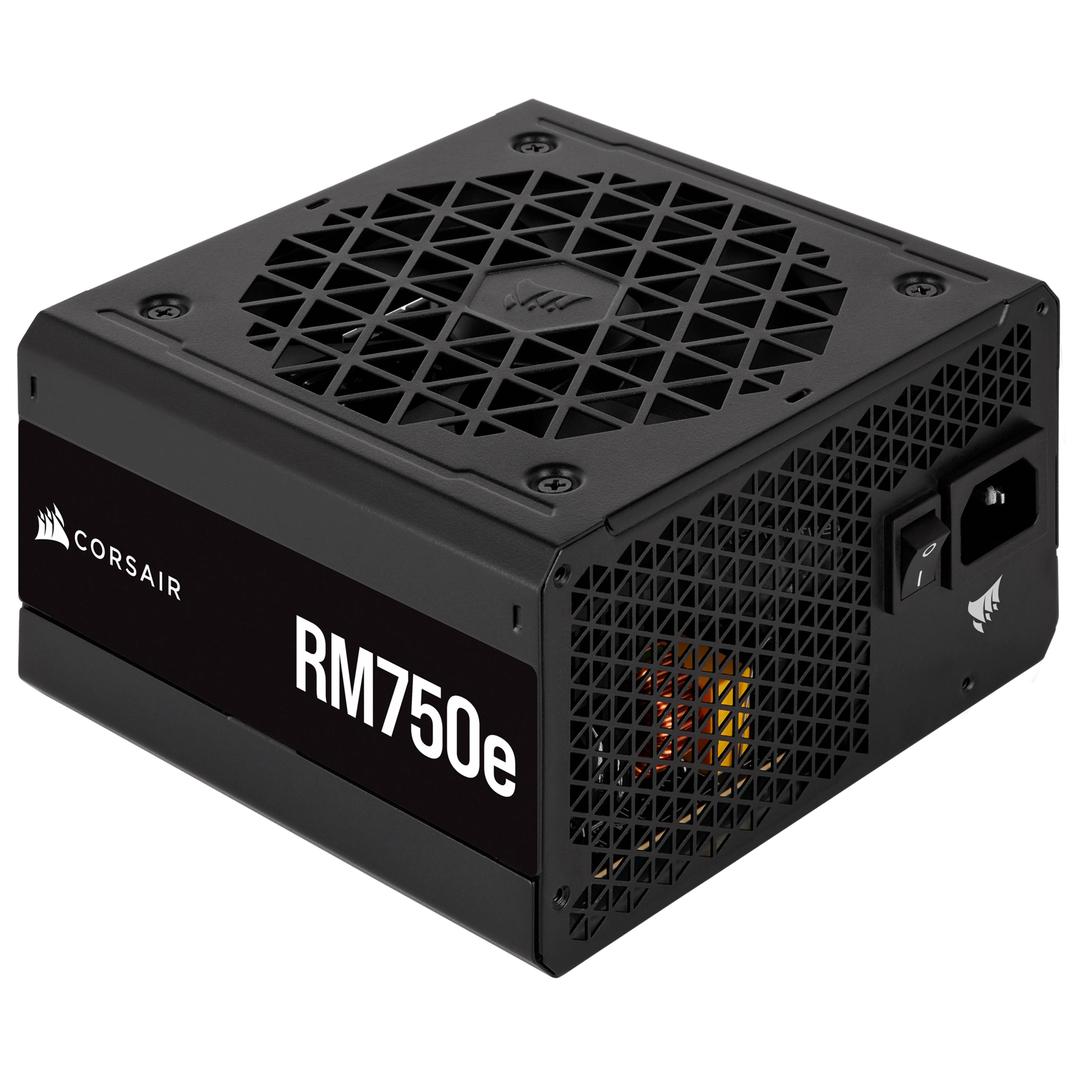

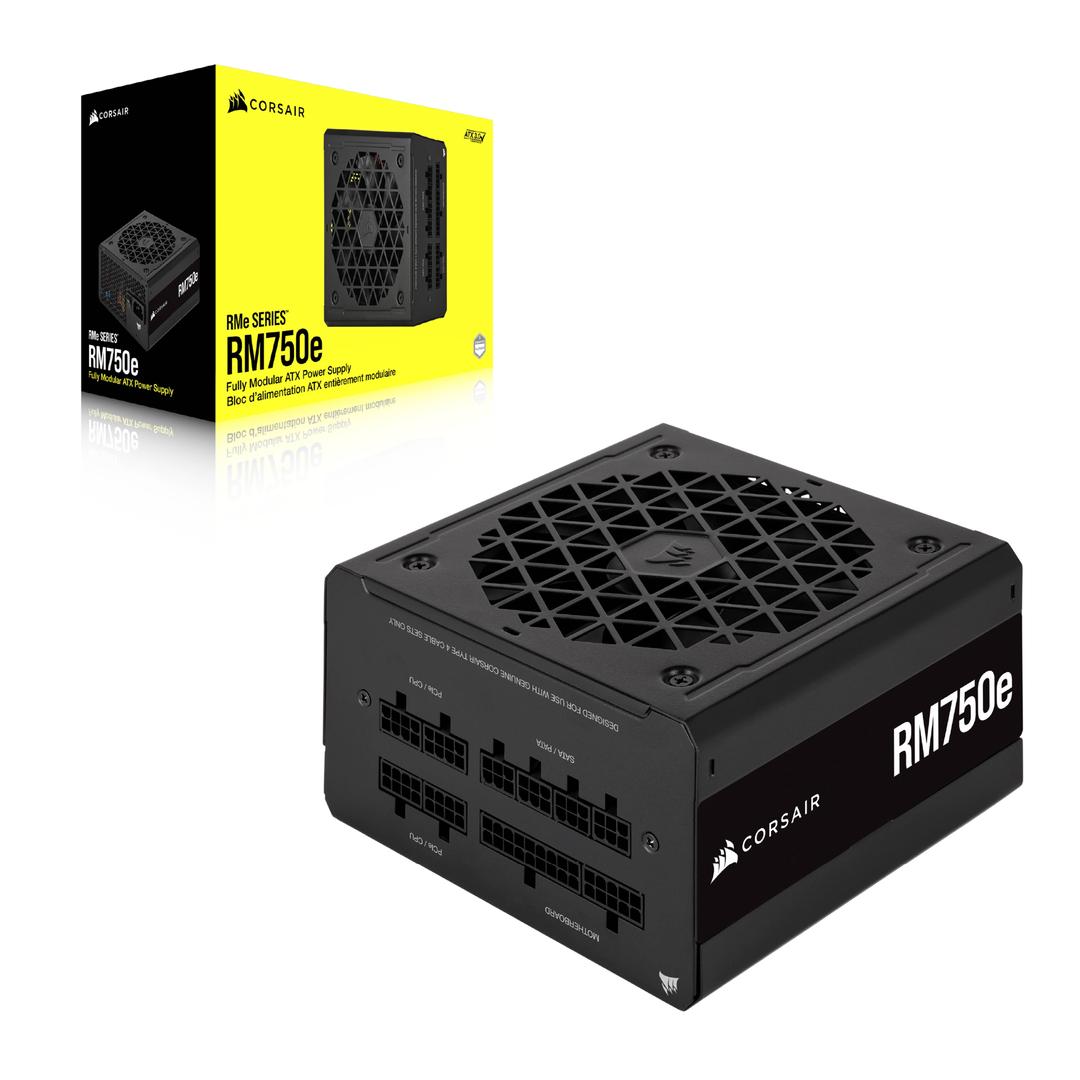

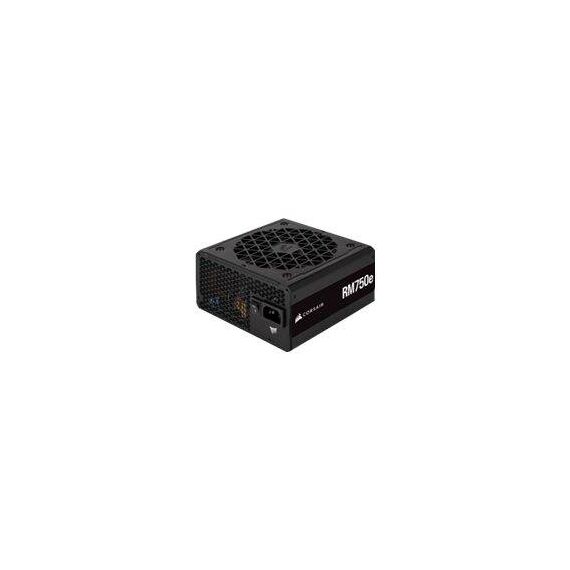

CORSAIR RMe Series RM750e / Power supply (internal) / ATX12V 3.0/ EPS12V / 80 PLUS Gold / AC 100-240 V / 750 Watt / Europe | CP-9020262-EU
Product Features
- Fully modular cabling
Keep cable clutter down by connecting only the cables your system needs and nothing else. Five universal 8-pin connectors can be used with any 8-pin cable, satisfying all the power needs of modern motherboards and GPUs. - ATX 3.0 certified
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMe series PSUs are formally certified for ATX 3.0 compliance. - Low noise operation in a compact size
Shorter than the traditional power supply, the RMe offers more cable space behind your PSU. Includes Zero RPM fan mode for near-silent operation at lower loads. - Technology and reliability
For consistent, reliable power and superb electrical performance, each RMe series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors. With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency. - 80 PLUS Gold-certified
Steady power output at up to 90% efficiency, and Cybenetics Platinum certified for lower power consumption, less noise, and cooler temperatures.
Special Features
- Fully modular cabling
- ATX 3.0 certified
- Low noise operation in a compact size
- Technology and reliability
- 80 PLUS Gold-certified
Product Specification
Device Type | Power supply - internal |
Specification Compliance | ATX12V 3.0/ EPS12V |
PSU Form Factor | ATX |
Localisation | Europe |
Power Device | Power Device |
Input Voltage | AC 100-240 V |
Frequency Required | 47 - 63 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 3 x 8 pin PCI Express power with detachable 2 pin section ¦ 7 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power ¦ 1 x 12VHPWR |
Output Voltage | +3.3, +5, +12 V |
Power Capacity | 750 Watt |
Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 62.5 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
Efficiency | 90% |
Modular Cable Management | Yes |
80 PLUS Certification | 80 PLUS Gold |
Miscellaneous | Miscellaneous |
Cables Included | ATX power cable 61 cm ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 65 cm ¦ 2x 8 pin PCI Express power with detachable 2 pin section modular cable 75 cm ¦ 8 pin PCI Express power with detachable 2 pin section modular cable 60 cm ¦ 2 x power 15 pin SATA cable 80 cm ¦ AC input cable - external ¦ 16-pin 12VHPWR power cable 65 cm ¦ 4 pin internal power cable |
MTBF | 100,000 hours |
Cooling System | 120 mm fan |
Features | DC-DC technology, Zero RPM fan mode, rifle bearing cooling fan, fully modular, Modern Standby compatible, LLC Half Bridge Topology |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 7 years |
Dimensions & Weight | Dimensions & Weight |
Width | 15 cm |
Depth | 14 cm |
Height | 8.6 cm |
