Cougar GEX750 - Power supply (internal) - ATX12V - 80 PLUS Gold - AC 100-240 V - 750 Watt | CGR GEX-750
Please sign in so that we can notify you about a reply
Product Features
- Efficiency
GEX features a highly efficient design that surpasses the 80 Plus Gold standard, to help you save money on your electricity bill. - Extreme cooling system
Using COUGAR's exclusive 120 mm silent fan, the advanced frame increase the concentration of airflow and its fan curvature has been fine-tuned to reduce vibration at any loads. - Durability
Firstly, GEX has been designed and thoroughly tested to perform optimally in 40ºC working temperature environments. Second, it includes 105°C Japanese capacitors for main and standby power to ensure keep providing computer with stable electrical supply. - Stability
GEX's LLC, DC-DC and Tri-Sense design has been created to provide high-quality outputs, with an extremely tight 3% voltage regulation to deliver a stable operation.
Special Fetures
- Up to 91% efficiency power conversion to cut down your electricity bill
- Connect only the cables you need for less clutter and better airflow
- Hydro Dynamic Bearing Fan: extended durability and lower noise levels
- Advanced technology for noise minimization
- Powerful performance at 40°C ambient temperature
- DC to DC technology for enhanced voltage stability
Product Specification
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V |
| PSU Form Factor | ATX |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |

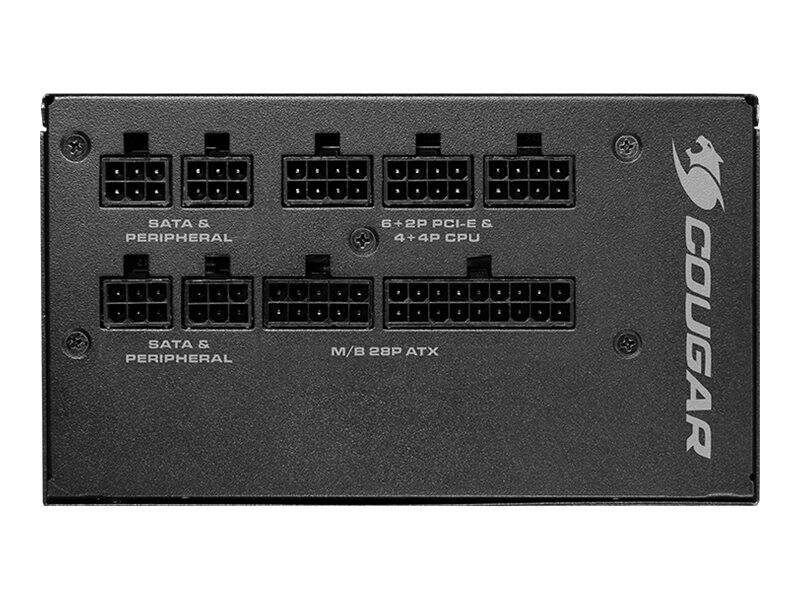

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section <br /> 1 x power 8 pin +12V with detachable 4 pin section <br /> 4 x 8 pin PCI Express power with detachable 2 pin section <br /> 8 x 15 pin Serial ATA power <br /> 6 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 Watt |
| Output Current | +3.3V - 18 A <br /> +5V - 20 A <br /> +12V - 62.5 A <br /> -12V - 0.3 A <br /> +5VSB - 3 A |
| Efficiency | 91% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | |
| Cooling System | 120 mm fan |
| Features | Over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, thermal protection, hydrodynamic bearing cooling fan, DC-DC technology, fully modular |
| Compliant Standards | FCC, RoHS, EAC, TUV Rheinland |
| Sustainability Information | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 16 cm |
| Height | 8.6 cm |
| Weight | 1.46 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 22.9 cm |
| Shipping Depth | 33.1 cm |
| Shipping Height | 10.7 cm |
| Shipping Weight | 2.58 kg |
