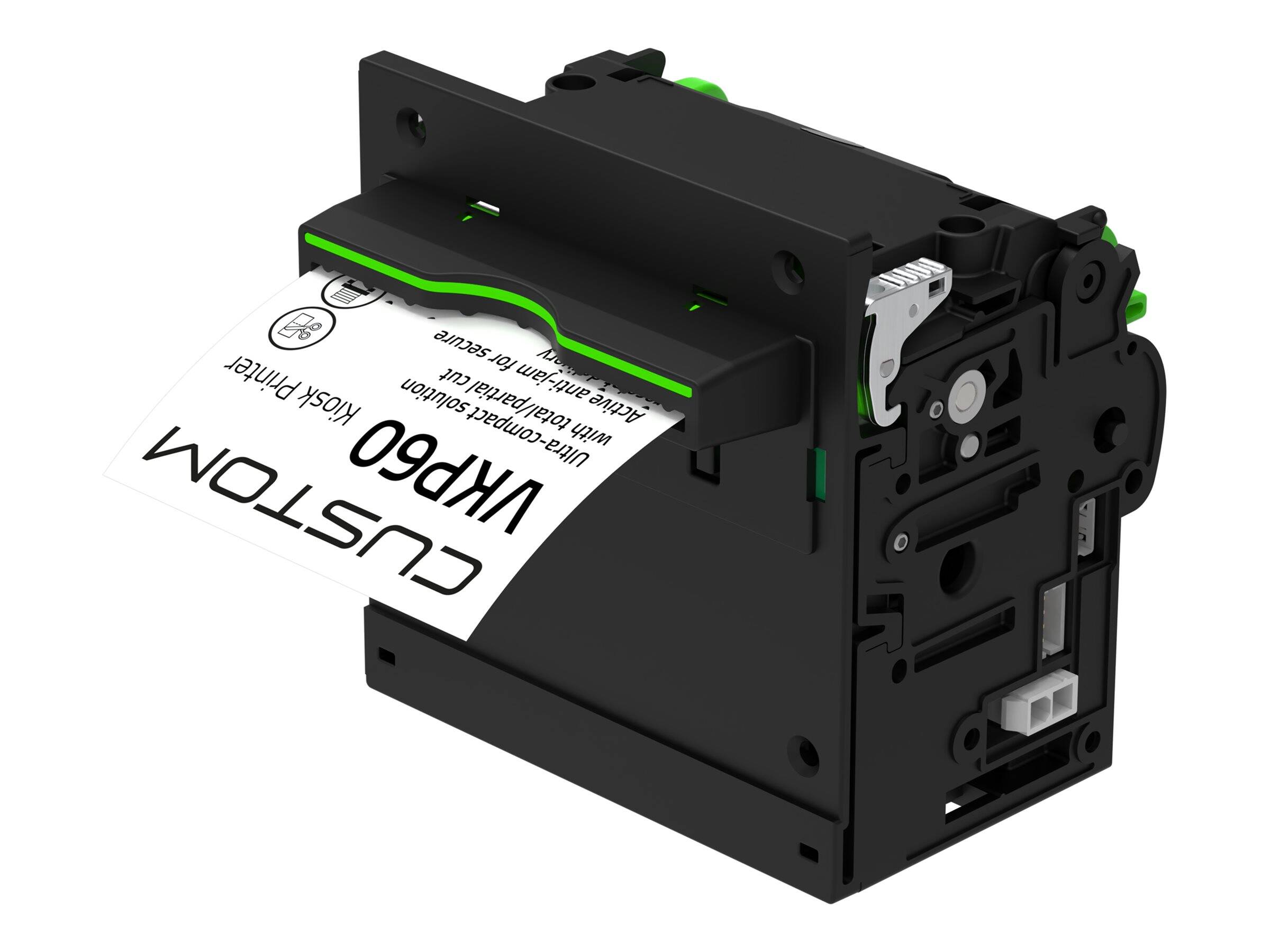

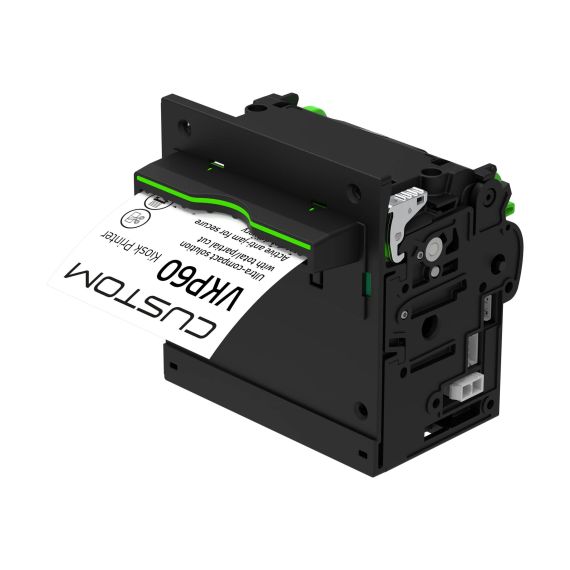

Custom VKP60 - Receipt printer - thermal transfer - Roll (10 cm) - 203 dpi - up to 200 mm/sec - USB 2.0, RS232 | 915NA020100300
Please sign in so that we can notify you about a reply
Product Features
- Versatile barcode support
The printer supports a wide array of barcode formats including Code 39, QR code, and GS1 DataBar, perfect for various applications in retail and logistics. - High-speed printing
Reaching speeds up to 200 mm/s, the VKP60 ensures quick and efficient printing, handling the demands of busy environments. - Robust operating temperature
Designed to function in extreme conditions, this printer operates between -20°C and 70°C, making it suitable for both indoor and outdoor use. - Efficient media management
It accommodates thermal paper rolls with a maximum size of 10 cm, enhancing convenience for various print jobs. - Reliable performance features
Equipped with features like jam detection and an open cover sensor, this printer ensures consistent performance and minimizes downtime.
Special Fetures
- Supports multiple barcode formats including QR code and UPC
- Printing speed of 200 mm/s for efficient operation
- Durable design with an operating temperature range of -20°C to 70°C
- Flexible media handling with a maximum media size of 10 cm rolls
- User-friendly with convenient features such as jam detection and open cover sensor
Product Specification
| Printer Type | Receipt printer - thermal transfer - monochrome |
| Printer | |
| Print Speed | Up to 200 mm/sec - max speed |
| Connectivity Technology | Wired |
| Interface | USB 2.0, RS232 |
| Max Resolution (B&W) | 203 dpi |
| Fonts | PC437, PC850, PC858, PC860, PC862, PC863, PC864, PC865, PC866, Katakana, WPC1250, WPC1251, WPC1252, WPC1253, WPC1254, WPC1255, WPC1256, WPC1257, WPC1258, Chinese Simplified (SimSun GB18030), PC949 |
| Features | Open cover sensor, cutter tray, printhead temperature sensor, Black Mark sensor, jam detection, paper input sensor |
| Barcodes | UPC-A, UPC-E, EAN-13, EAN-8, Code 39, ITF, Codabar, Code 93, Code 128, Code 32, QR code, Aztec code, PDF417, Data Matrix, GS1 DataBar |
| Printer Features | Full and partial cuts support |
| Media Handling | |
| Media Type | Thermal paper |
| Max Media Size | Roll (10 cm) |
| Min Media Size (Custom) | 44 mm |
| Max Media Size (Custom) | 60 mm |
| Media Sizes | Roll (10 cm) |
| Media Feeders | 1 x manual - 1 roll - Roll (10 cm) |
| Expansion / Connectivity | |
| Connections | 1 x USB 2.0 <br /> 1 x RS-232 |
| Power | |
| Voltage Required | 24 V |
| Software / System Requirements | |
| Software Included | Custom PrinterSet |
| OS Required | Linux, Microsoft Windows 10 / 11 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 70 °C |
| Dimensions & Weight | |
| Width | 8.6 cm |
| Depth | 71.5 cm |
| Height | 8.95 cm |
| Weight | 340 g |
Features - Custom - 915NA020100300
More Details
Product Code
CM58147
EAN Code
8058341802021
Manufacturer
Custom
