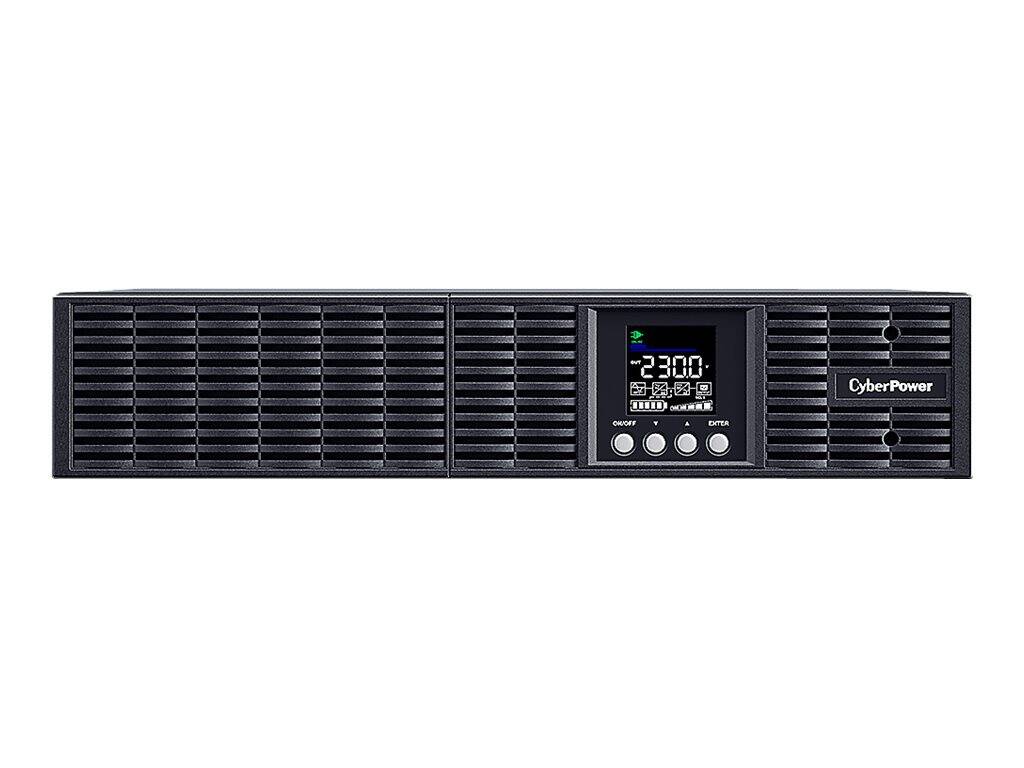

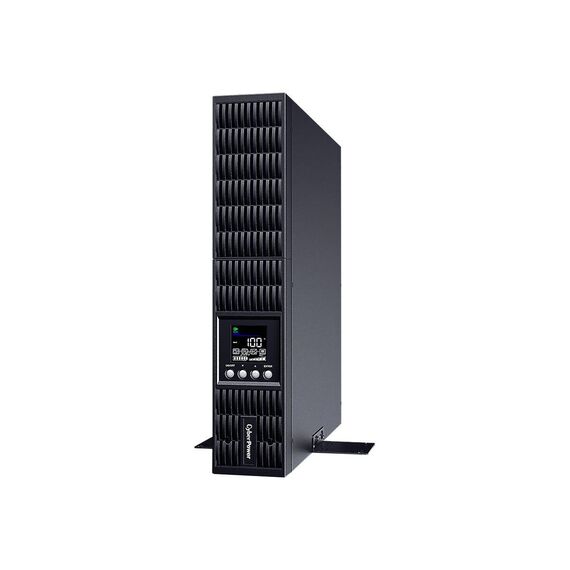

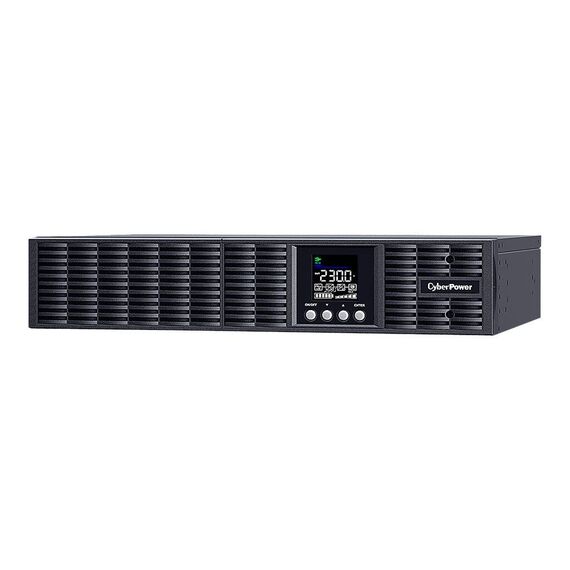

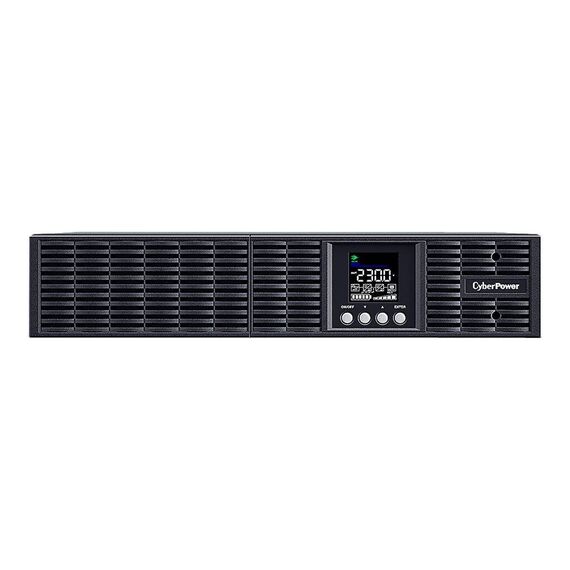

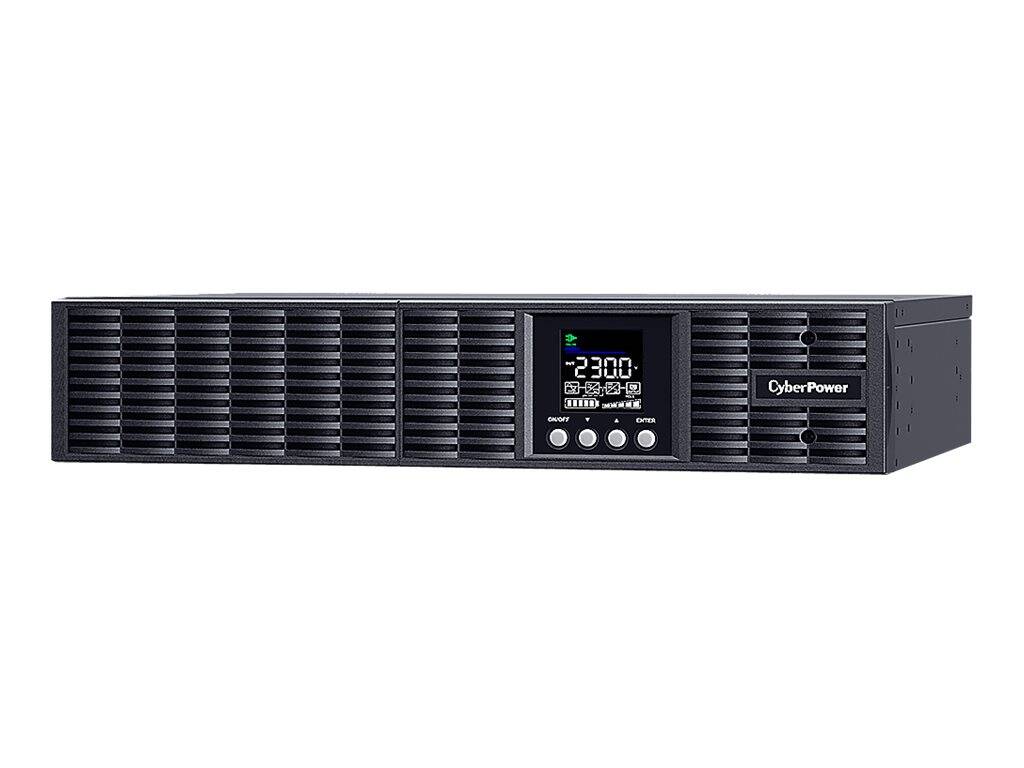

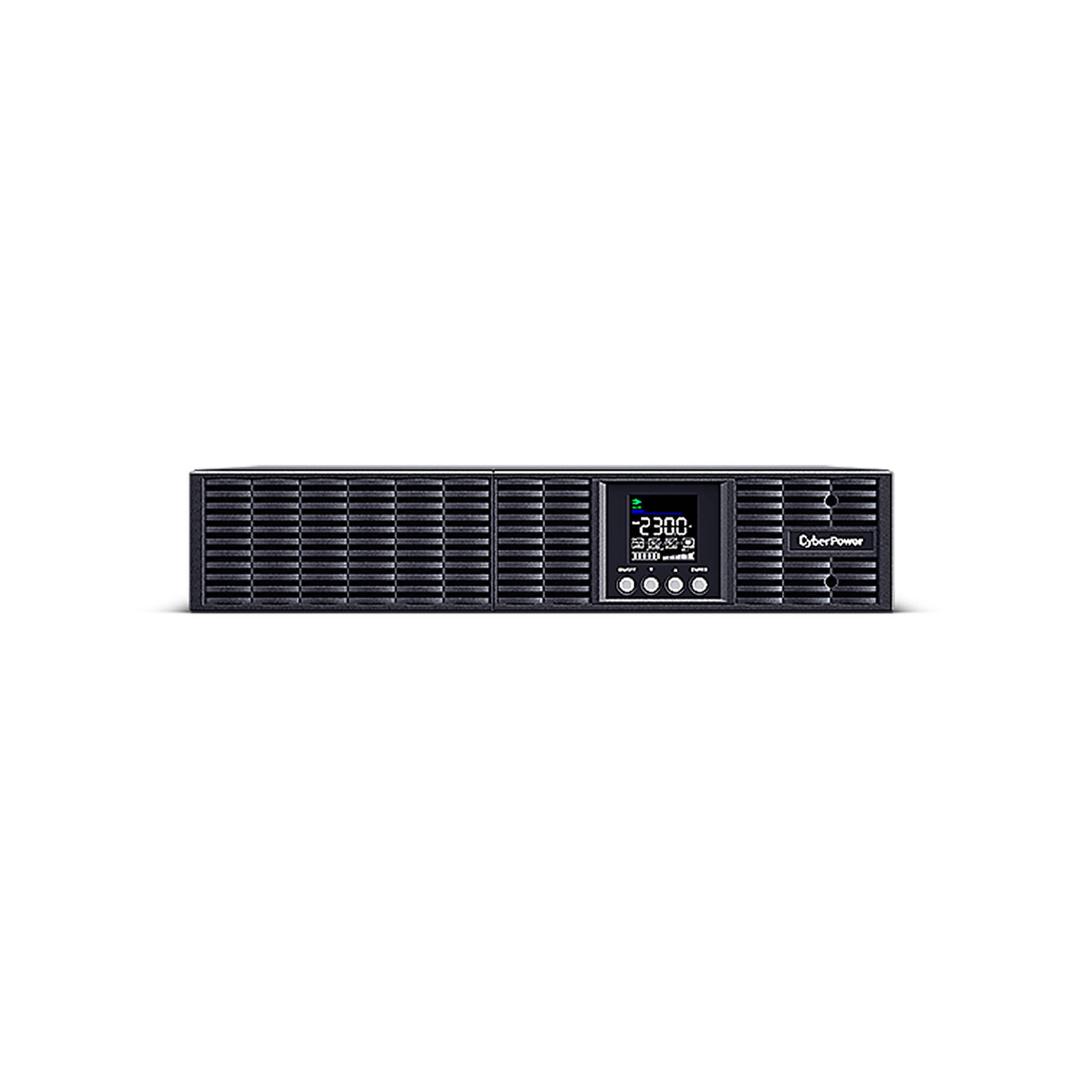

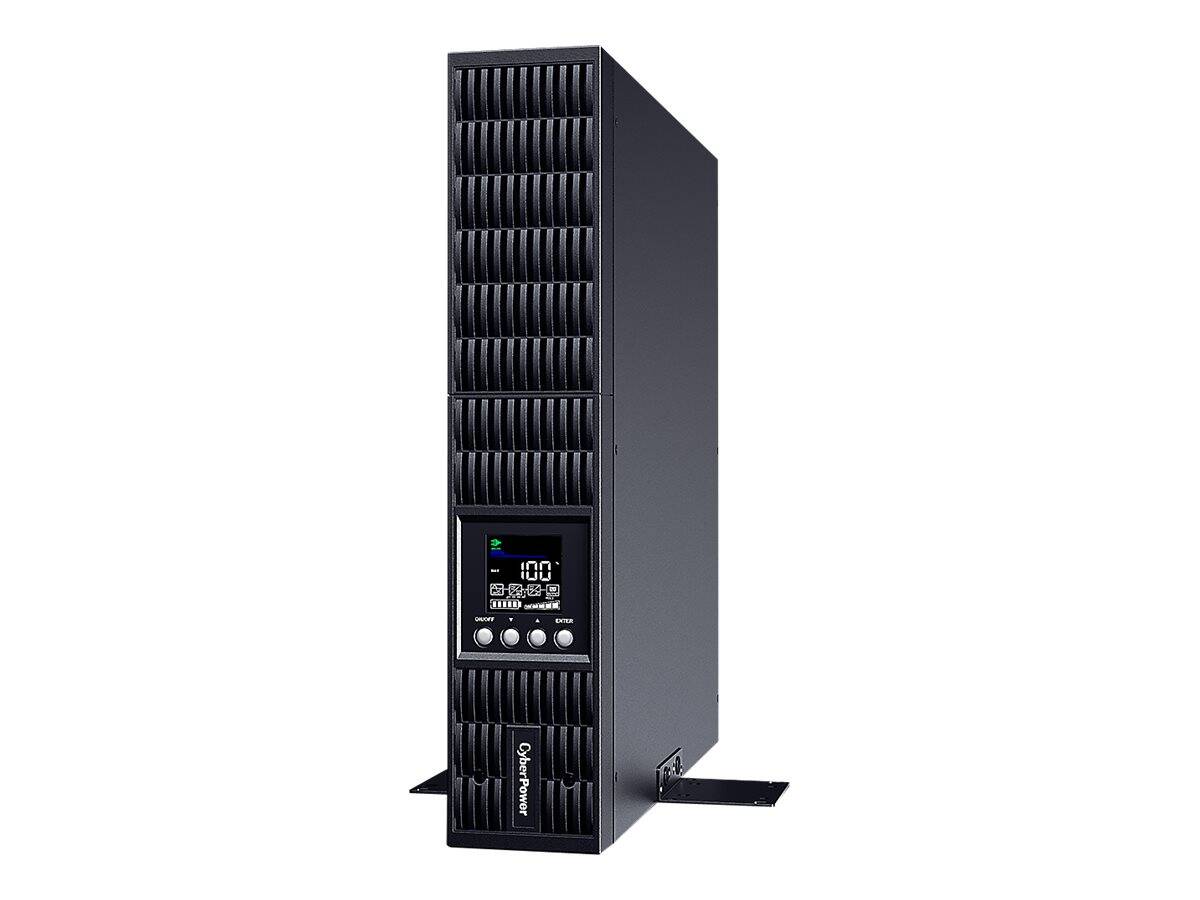

CyberPower Smart App Online S OLS1500ERT2UA - UPS (rack-mountable / external) - AC 230 V - 1350 Watt - 1500 VA - 1-phase - 7 Ah - RS-232, USB - output connectors: 8 - 2U - black | OLS1500ERT2UA
OLS1500ERT2UA
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Colour | Black |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 190 - 300 V |
| Input Voltage Range (Adjustable) | AC 80 - 300 V |
| Frequency Provided | 50/60 Hz ± 0.5% |
| Input Voltage Margin | ± 10% |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz ± 10% |
| Input Connectors | 1 x power IEC 60320 C14 |
| Power Output Connectors Details | 8 x power IEC 60320 C13 (UPS and surge) |
| Output Voltage | AC 208/220/230/240 V ± 1% - 50/60 Hz |
| Power Capacity | 1350 Watt / 1500 VA |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 363 Joules |
| Circuit Protection | Fuse, circuit breaker |
| Efficiency | 95% Eco mode |
| Power Factor (PF) | 0.99 |
| Total Harmonic Distortion (THD) | 3 % |
| Battery | |
| Type | Expandable |
| Technology | Lead Acid |
| Voltage Provided | 48 V |
| Capacity | 7 Ah |
| Run Time (Up To) | 3 min at full load ¦ 9 min at half load |
| Recharge Time | 4 hours |
| Transfer Time | 0 ms |
| Features | Sealed |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |

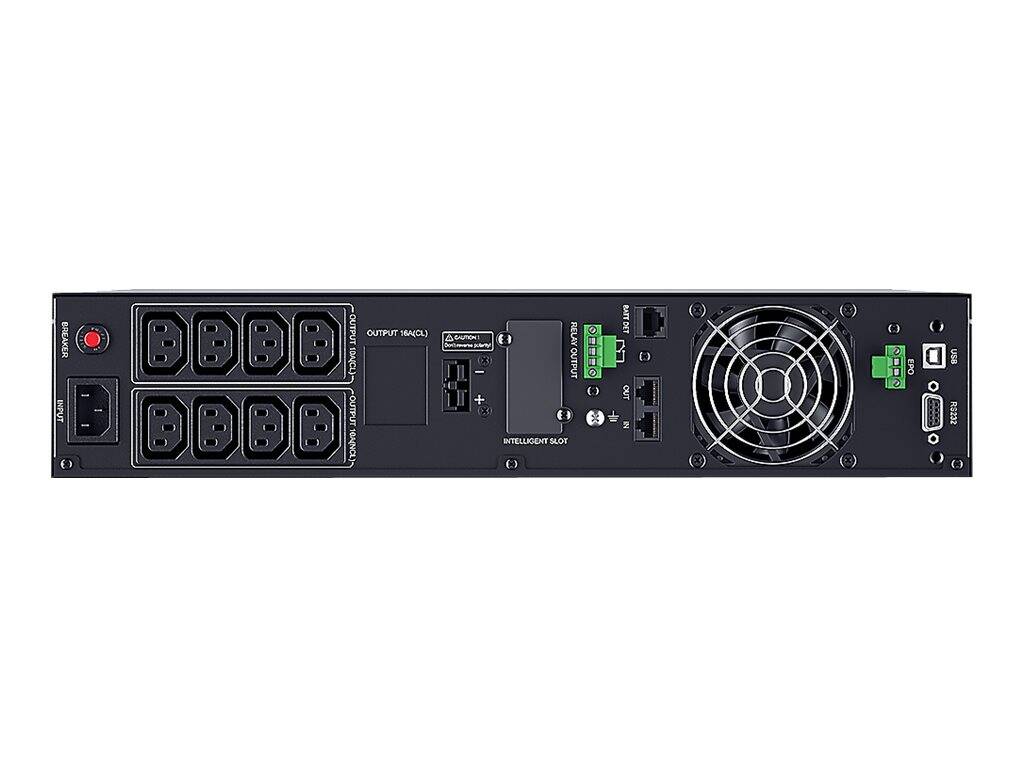

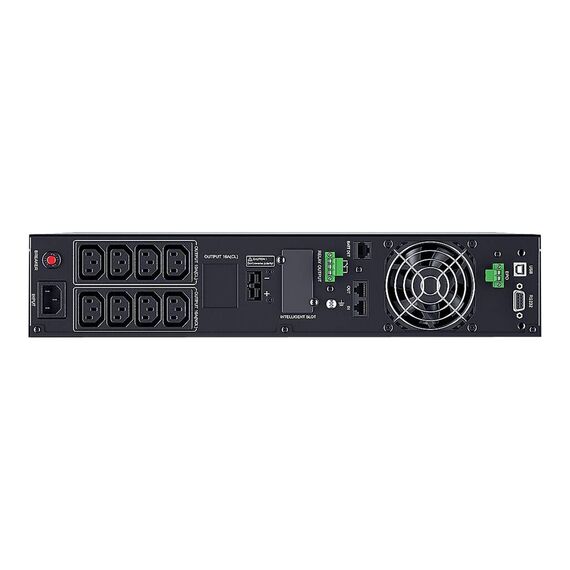

| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) |
| Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
| Miscellaneous | |
| Cables Included | 2 x power cable - external - 1.5 m ¦ USB cable - external |
| Rack Mounting Kit | Included |
| Features | Audible alarm, internal bypass, overload protection, cooling fan, Smart Battery Management (SMB), Eco-Mode, start on battery, generator compatible, rotatable LCD panel |
| Compliant Standards | RoHS, EAC |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Sound Emission | 45 dBA |
| Dimensions & Weight | |
| Width | 43.8 cm |
| Depth | 43 cm |
| Height | 8.8 cm |
| Weight | 13.8 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 54 cm |
| Shipping Depth | 55 cm |
| Shipping Height | 23 cm |
