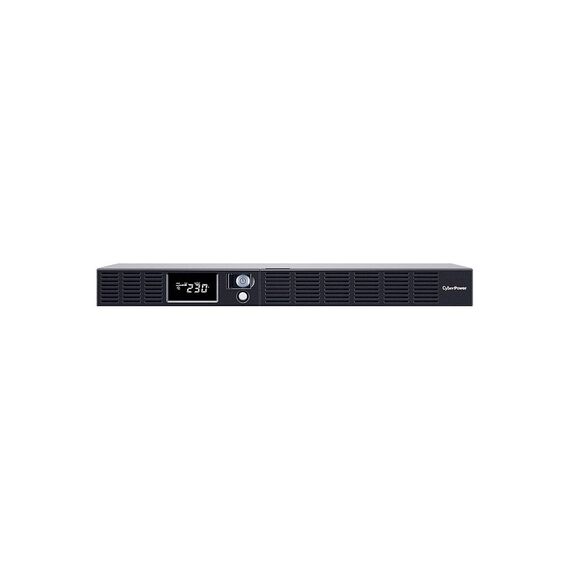

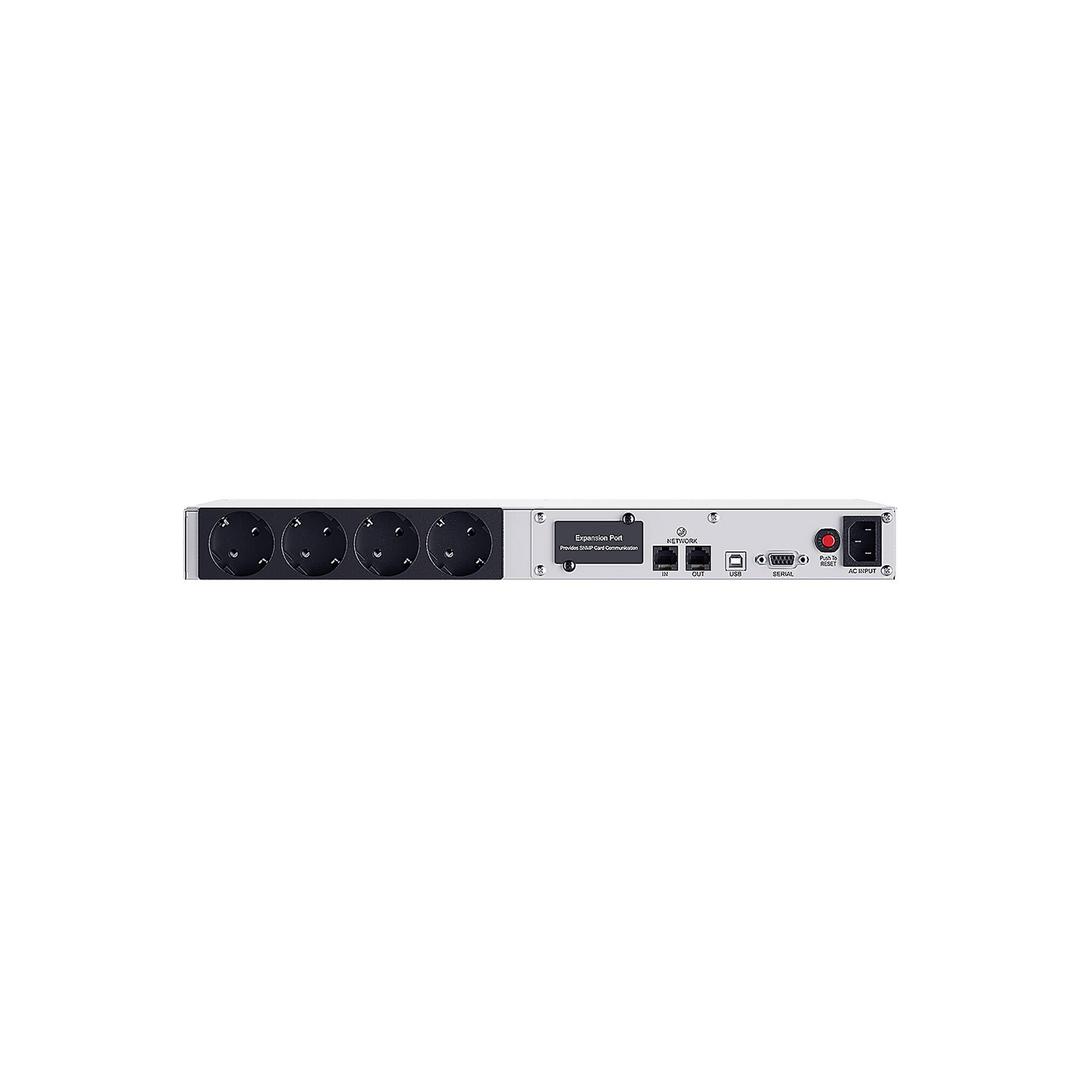

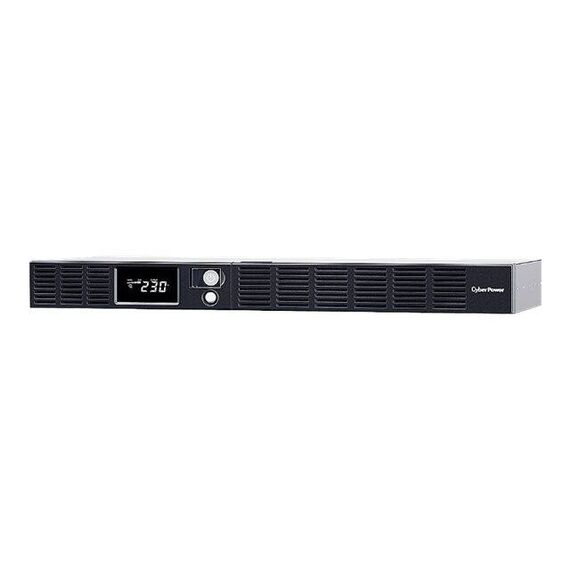

CyberPower Office Rackmount Series OR650ERM1UGR - UPS (rack-mountable) - AC 230 V - 360 Watt - 650 VA - 1-phase - Ethernet, RS-232, USB - output connectors: 4 - 1U - silver | OR650ERM1UGR
Please sign in so that we can notify you about a reply
Special Fetures
- GreenPower UPS technology
- Automatic Voltage Regulator (AVR)
- Multiple outputs for multiple servers
- Multiple communication interface
- Programmable brownout and over voltage protection
- Microprocessor based full digital control
- EMI, RFI, surge and spike protection
- Auto restart/auto charge
- User-replaceable batteries
- LCD status monitor
Product Specification
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 1U |
| Colour | Silver |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 165 - 271 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Power Output Connectors Details | 4 x Europlug (power CEE 7/16) (UPS and surge) |
| Output Voltage | AC 230 V ± 10% - 50/60 Hz |
| Power Capacity | 360 Watt / 650 VA |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
| Output Waveform | Stepped approximation to a sinewave |
| Surge Energy Rating | 405 Joules |
| Circuit Protection | Circuit breaker |
| Power Factor (PF) | 0.55 |
| Battery | |
| Quantity | 1 |
| Technology | Lead Acid |
| Run Time (Up To) | 4 min at full load ¦ 13 min at half load |
| Recharge Time | 8 hours |
| Transfer Time | 4 ms |
| Networking | |
| Remote Management Interface | Ethernet, RS-232, USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x LAN - RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x SNMP |
| Miscellaneous | |
| Cables Included | USB cable - external ¦ Power cable - integrated |
| Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), overload protection, GreenPower UPS Bypass Technology |
| Compliant Standards | RoHS |
| Software / System Requirements | |
| Software Included | PowerPanel Business Edition |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 95% |
| Dimensions & Weight | |
| Width | 43.3 cm |
| Depth | 23.5 cm |
| Height | 4.4 cm |
| Weight | 7.8 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 53 cm |
| Shipping Depth | 31.5 cm |
| Shipping Height | 15.5 cm |
| Shipping Weight | 10.3 kg |
