Cybex SC920DPH - KVM / audio / USB switch - 2 x KVM / audio / USB - desktop | SC920DPH-400
Please sign in so that we can notify you about a reply
Product Features
- Robust environmental adaptability
Designed to operate flawlessly in a wide range of humidity (0 - 80% non-condensing) and temperature conditions, from as low as 0°C to a maximum of 40°C, ensuring reliability and performance in diverse operational environments. - High-resolution support
The Cybex SC920DPH excels in delivering crystal-clear visuals with a maximum supported video resolution of 3840 x 2160 at 60 Hz V-Sync rate, making it ideal for high-definition content and detailed tasks. - Versatile connectivity options
Equipped with multiple ports including DisplayPort/HDMI inputs and outputs, USB for keyboard and mouse, and audio/headphones, this device offers comprehensive connectivity for a variety of peripherals and multimedia devices.
Special Fetures
- Certified to National Information Assurance Partnership (NIAP) Protection Profile V4.0
- Isolated ports provide discrete processing paths, preventing data leakage between adjacent ports
- Provides unique, customizable indicators that improve situational awareness of active channels
- Tamper-evident holographic labels visibly indicate any compromised hardware
- Gain true image reproduction and display flexibility
Product Specification
| Device Type | KVM / audio / USB switch - 2 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Ports | 2 x KVM / audio / USB |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Expansion / Connectivity | |

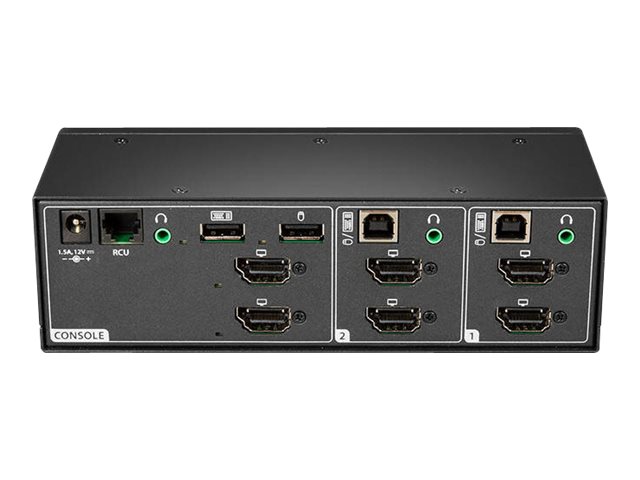

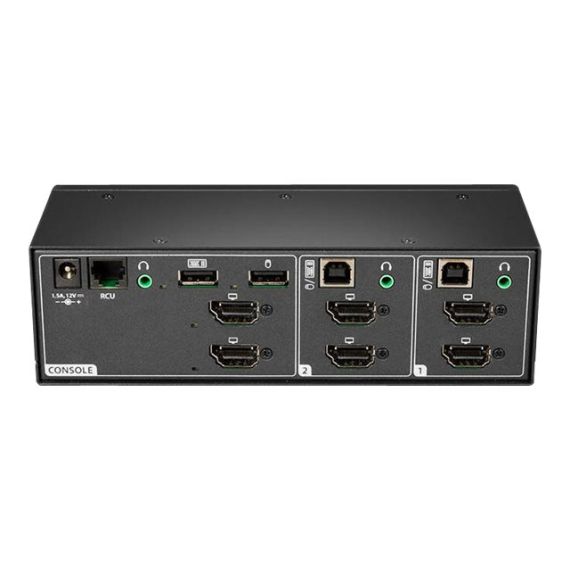

| Interfaces | 2 x DisplayPort/HDMI input <br /> 1 x keyboard (USB) / mouse (USB) Type B <br /> 2 x DisplayPort/HDMI output <br /> 1 x audio / headphones mini-jack <br /> 2 x keyboard (USB) / mouse (USB) Type A <br /> 1 x headphones mini-jack |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, VCCI, EAL 4+, cTUVus, TUV C, RCM, NIAP PP 4.0 |
| Dimensions & Weight | |
| Width | 17.8 cm |
| Depth | 6.1 cm |
| Height | 5.6 cm |
| Weight | 700 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 60 °C |
Features - Vertiv - SC920DPH-400
More Details
Product Code
CD75483
EAN Code
0636430089584
Manufacturer
Vertiv
