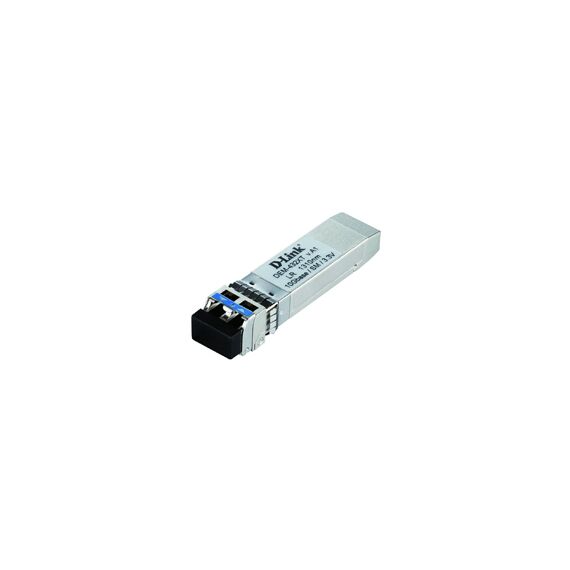

D-Link DEM 432XT SFP+ transceiver module 10GBase-LR up to 10 km (DEM-432XT)
DEM-432XT
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
D-Link DEM-432XT D-Link 10GE SFP+ LR TRANSCEIVER SM (L (DEM-432XT)
Feature list
| Interface type: | SFP |
| Data transfer rate max: | 10000 Mbit/s |
| Fiber optic connector: | LC |
| Networking standards: | IEEE 802.3ae |
| Maximum transfer distance: | 10000 m |
| Wavelength: | 1310 nm |
| Cable type: | Single-mode |
| Fiber cable diameters supported: | 9/125 µm |
| Tx power min: | -8.5 dBmW |
| Tx power max: | 0.5 dBmW |
| Rx power min: | -12.6 dBmW |
| Rx power max: | 0.5 dBmW |
| Output voltage: | 3.3 V |
| Output current: | 300 A |
| Operating temperature T-T: | 0 - 70 °C |
| Storage temperature T-T: | -40 - 85 °C |
| Operating relative humidity H-H: | 5 - 85 % |
| Storage relative humidity H-H: | 5 - 95 % |
| Width: | 14.8 mm |
| Depth: | 11.85 mm |
| Height: | 56.5 mm |
| Weight: | 19.5 g |
| RoHS compliance: | Y |
| Certification: | CE, FCC, VCCI |
| Safety: | UL, TUV, CDRH |
Features - D-Link - DEM-432XT
More Details
Product Code
5844038
EAN Code
0790069353208
Manufacturer
D-Link
