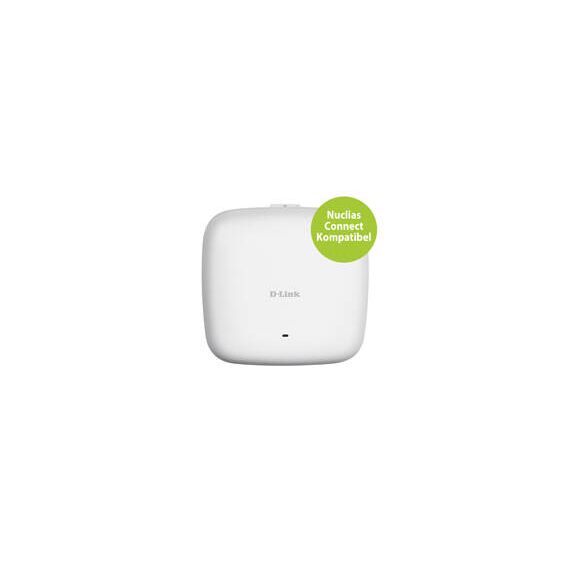

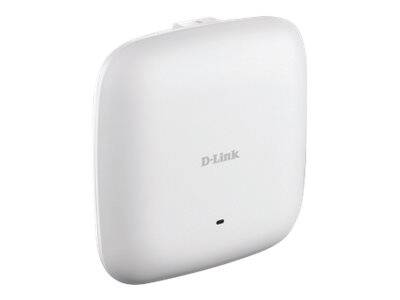

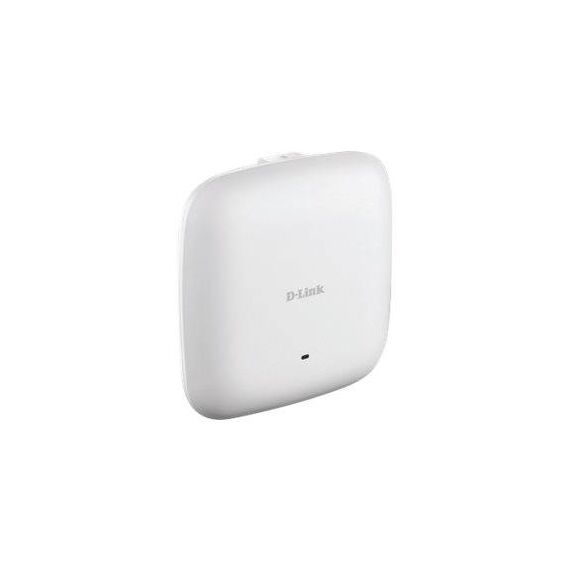

D-Link DAP-2680 - Radio access point - 802.11ac Wave 2 - Wi-Fi 5 - 2.4 GHz, 5 GHz | DAP-2680
Please sign in so that we can notify you about a reply
Product Features
- Blazing wireless Wave 2 AC Performance
The DAP-2680 delivers reliable, high-speed wireless performance using 802.11ac Wave 2 standard with maximum wireless signal rates of up to 450 Mbps over the 2.4 GHz band, and 1300 Mbps over the 5 GHz band.This, coupled with support for the Wi-Fi Multimedia (WMM) Quality of Service (QoS) feature, makes it an ideal access point for audio, video, and voice applications. When enabled, QoS allows the DAP-2680 to automatically prioritize network traffic according to the level of interactive streaming, such as HD movies or VoIP. The QoS feature can be adjusted through the DAP-2680 web GUI using a drop-down menu to select customized priority rules. Additionally, the DAP-2680 supports load balancing to ensure maximum performance by limiting the maximum number of users per access point. - Versatile access point functionality
The DAP-2680 allows network administrators to deploy a highly manageable and extremely robust simultaneous dual-band wireless network. The DAP-2680 can be ceiling mounted, wall mounted, or placed on a desktop to meet any wireless demands. For advanced installations, the DAP-2680 has integrated 802.3at Power over Ethernet (PoE) support, allowing the device to be installed in areas where power outlets are not readily available. - Multiple operation modes
To maximize total return on investment, the DAP-2680 can be configured to optimize network performance based on any one of its multiple operation modes: Access Point, Wireless Distribution System (WDS), a WDS with Access Point, and Wireless Client. With WDS support, network administrators can set up multiple DAP-2680s throughout a facility and configure them to bridge with one another, while also providing network access to individual clients. The DAP-2680 also features advanced features such as load balancing and redundancy, for fail-safe wireless connectivity.
Special Fetures
- Blazing wireless Wave 2 AC Performance
- Versatile access point functionality
- Multiple operation modes
- Small form factor design for easy placement
- Wall and ceiling mountable
Product Specification
| Device Type | Radio access point |
| Width | 19 cm |
| Depth | 19 cm |
| Height | 4.48 cm |
| Weight | 580 g |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1750 Mbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Remote Management Protocol | Telnet, SNMP 3, SNMP 2c, HTTP, SSH |
| Frequency Band | 2.4 GHz, 5 GHz |
| Wi-Fi Rating | AC1750 |
| Status Indicators | Power, status |
| Features | LDAP support, VLAN support, MAC address filtering, Wireless Distribution System (WDS) support, wall mountable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), Network Access Protection (NAP), ceiling mountable, Energy-Efficient Ethernet (EEE) |
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, WPA, WPA2, WPA-Enterprise, WPA2-Enterprise |
| Authentication Method | RADIUS, Radio Service Set ID (SSID) |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac Wave 2 |
| Aerial | |
| Antenna | Internal |
| Antenna Qty | 6 |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T (PoE+) - RJ-45 |
| Miscellaneous | |
| MTBF | 30,000 hours |
| Compliant Standards | UL, FCC |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | External power adapter |
| Power Consumption Operational | 17.53 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - D-Link - DAP-2680
More Details
Product Code
5845426
EAN Code
0790069438950
Manufacturer
D-Link
