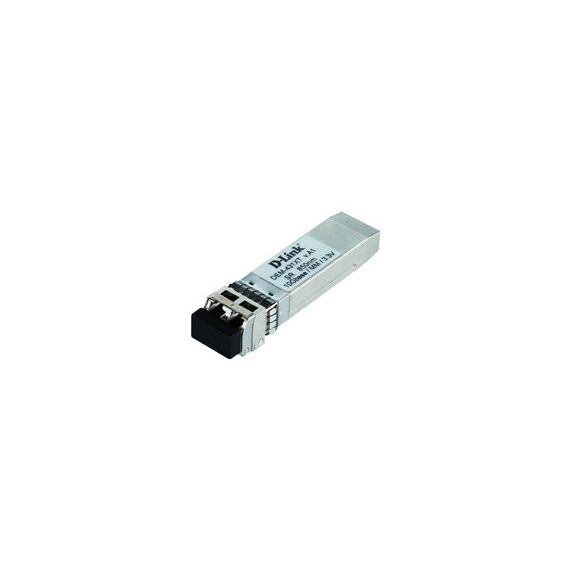

D-Link DEM 431XT - SFP+ transceiver module
DEM-431XT
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
D-Link DEM-431XT D-Link DEM 431XT - SFP+ transceiver module
D-Link DEM 431XT - SFP+ transceiver module
Feature list
| Interface type: | SFP |
| Data transfer rate max: | 10000 Mbit/s |
| Fiber optic connector: | LC |
| Networking standards: | IEEE 802.3ae |
| Maximum transfer distance: | 300 m |
| Wavelength: | 850 nm |
| Cable type: | Multi-mode |
| Fiber cable diameters supported: | 50/125, 62.5/125 µm |
| Tx power min: | -6.5 dBmW |
| Tx power max: | -1 dBmW |
| Rx power min: | -11.1 dBmW |
| Rx power max: | -1 dBmW |
| Output voltage: | 3.3 V |
| Output current: | 300 A |
| Width: | 14.8 mm |
| Depth: | 11.85 mm |
| Height: | 56.5 mm |
| Weight: | 18 g |
| Operating temperature range T-T: | 0 - 70 °C |
| Storage temperature range T-T: | -40 - 85 °C |
| Operating relative humidity range: | 5 - 85 % |
| Storage relative humidity range: | 5 - 95 % |
| RoHS compliance: | Y |
| Certification: | CE, FCC, VCCI, C-Tick |
| Safety: | UL, TUV, CDRH |
D-Link DEM 431XT - SFP+ transceiver module
Features - D-Link - DEM-431XT
More Details
Product Code
04:125934
EAN Code
0790069353130
Manufacturer
D-Link
