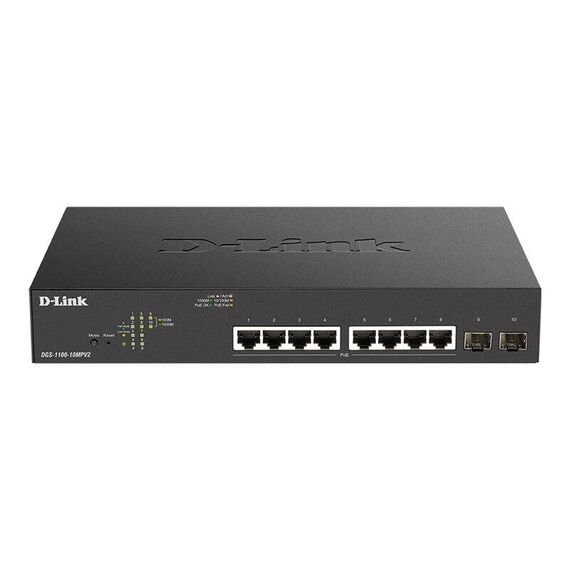

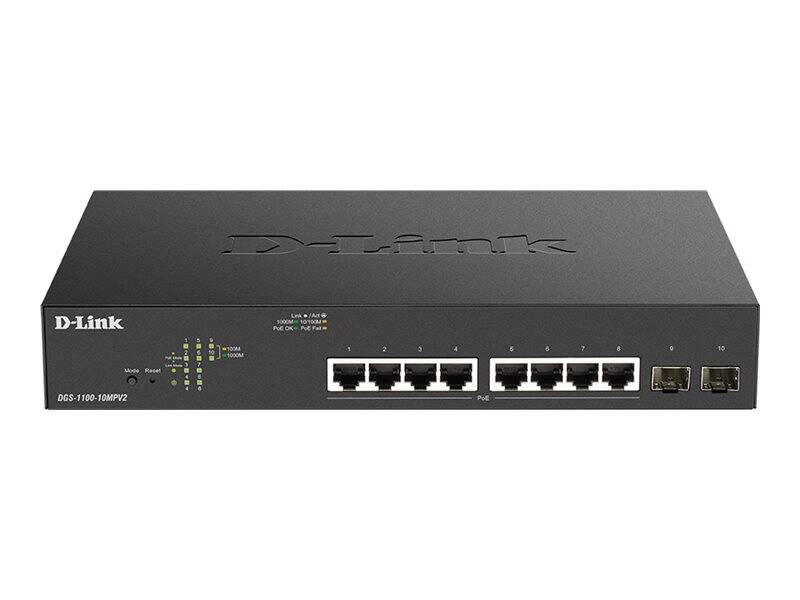

D-Link DGS 1100-10MPV2 - Switch - smart - 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP - desktop, rack-mountable - PoE (130 W) | DGS-1100-10MPV2/E
D-Link DGS 1100-10MPV2 - Switch - smart - 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP - desktop, rack-mountable - PoE (130 W) | DGS-1100-10MPV2/E
€264.14 inc. VAT
DGS-1100-10MPV2/E
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Smart web UI
The DGS-1100's web user interface is an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), link aggregation (static). With powerful security features like IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require easy to deploy and easy to configure solutions without added complexities. - Easy to deploy and manage
D-Link's free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. - PoE and PoE+
The DGS-1100 Smart Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras. - Easy troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Special Fetures
- Simple layer 2 management
- Web-based user interface
- Easy to use web interface to access management features
- Segment your network into VLANs
Product Specification
| Device Type | Switch - 10 ports - smart |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 130 W |
| Performance | Switching capacity: 20 Gbps ¦ Forwarding performance: 14.88 Mpps |
| Capacity | VLAN groups: 128 ¦ VLAN IDs: 4094 ¦ IGMP groups: 128 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | HTTP, ICMP |
| Encryption Algorithm | SSL |
| Features | Flow control, BOOTP support, IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), Cable Diagnostics Function, bandwidth control, D-Link Green Technology, fanless, LLDP support, DHCP client, Voice VLAN, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, port-based VLAN, Unknown Storm Control, 4.1Mbit packet buffer, Asymmetric VLAN, Smart Fan |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3at, IEEE 802.3az |
| Flash Memory | 16 MB |
| Status Indicators | Power, status, link/activity/speed |
| Expansion / Connectivity | |
| Interfaces | 8 x 1000Base-T RJ-45 PoE ¦ 2 x 1000Base-X SFP |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 11.7 Watt |
| Power Consumption Stand by | 5.6 Watt |
| Miscellaneous | |
| Included Accessories | 11" rack mounting kit |
| Rack Mounting Kit | Included |
| MTBF | 406,887 hours |
| Compliant Standards | FCC Class A certified, UL, C-Tick, BSMI, cUL, CB, LVD, VCCI Class A, RoHS 10 |
| Localisation | Europe |
| Software / System Requirements | |
| Software Included | D-Link Network Assistant |
| Dimensions & Weight | |
| Width | 28 cm |
| Depth | 18 cm |
| Height | 4.4 cm |
| Weight | 1.5 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 0 - 95% (non-condensing) |
Features - D-Link - DGS-1100-10MPV2/E
General
8-Port
More Details
Product Code
04:446233
EAN Code
0790069467851
Manufacturer
D-Link
