D-Link DGS 1100-16V2 / Switch / smart / 16 x 10/100/1000 / desktop, rack-mountable | DGS-1100-16V2
D-Link DGS 1100-16V2 / Switch / smart / 16 x 10/100/1000 / desktop, rack-mountable | DGS-1100-16V2
€208.18 inc. VAT
DGS-1100-16V2
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Gigabit Ethernet speed
High-speed ports provide the Ethernet technology while retaining backward compatibility for connections to older computers and equipment. - Revolutionary energy efficiency
Innovative D-Link Green features help conserve energy without sacrificing performance so you can reduce operating costs and protect the environment. - Smart and flexible management
Powerful switch management functions can be performed through the web management interface or through a client-based utility. - Advanced features
The switch is equipped with advanced security features such as Static MAC, Storm Control, and IGMP Snooping.
Special Features
- Gigabit Ethernet speed
- Revolutionary energy efficiency
- Smart and flexible management
- Surveillance VLAN and bandwidth control
- Advanced features
- Easy troubleshooting
Product Specification
| Device Type | Switch - 16 ports - smart |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 |
| Performance | Switching capacity: 32 Gbps ¦ Forwarding performance: 23.81 Mpps |
| Capacity | VLAN groups: 128 ¦ VLAN IDs: 4094 ¦ IGMP groups: 128 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10240 bytes |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP 2, ICMP |
| Encryption Algorithm | SSL |
| Features | Flow control, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, QoS, Cable Diagnostics Function, bandwidth control, fanless, LLDP support, Port Security, DHCP client, 512KB packet buffer, tagged VLAN, DSCP support, IGMP querier, Voice VLAN, VLAN management, VLAN group, EEE, WRR, HOL Blocking Prevention, loopback detection, port-based VLAN, port-based QoS, Unknown Storm Control, DNA support, Asymmetric VLAN |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.3az |
| Processor | : 500 MHz |
| RAM | 128 MB |
| Flash Memory | 16 MB |
| Status Indicators | Power, status, link/activity/speed |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 24 x 1000Base-T RJ-45 |

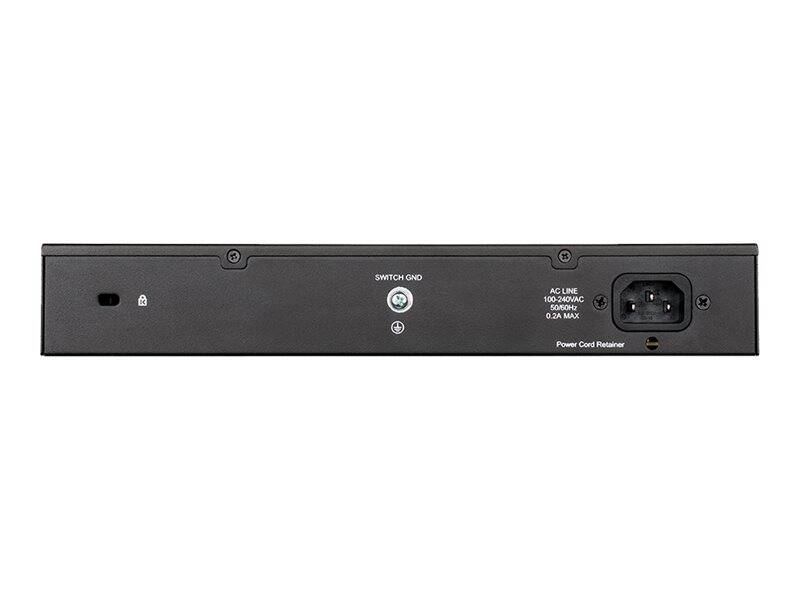

| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 10.1 Watt |
| Power Consumption Stand by | 3.4 Watt |
| Miscellaneous | Miscellaneous |
| Included Accessories | 4 rubber feet, 2 x 19" mounting brackets |
| Rack Mounting Kit | Included |
| MTBF | 710,519 hours |
| Compliant Standards | FCC Class A certified, C-Tick, BSMI, cUL, CB, CCC, RoHS, LVD, VCCI Class A |
| Software / System Requirements | Software / System Requirements |
| Software Included | D-Link Network Assistant |
| Dimensions & Weight | Dimensions & Weight |
| Width | 28 cm |
| Depth | 18 cm |
| Height | 4.4 cm |
| Weight | 1.21 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 0 - 95% (non-condensing) |
