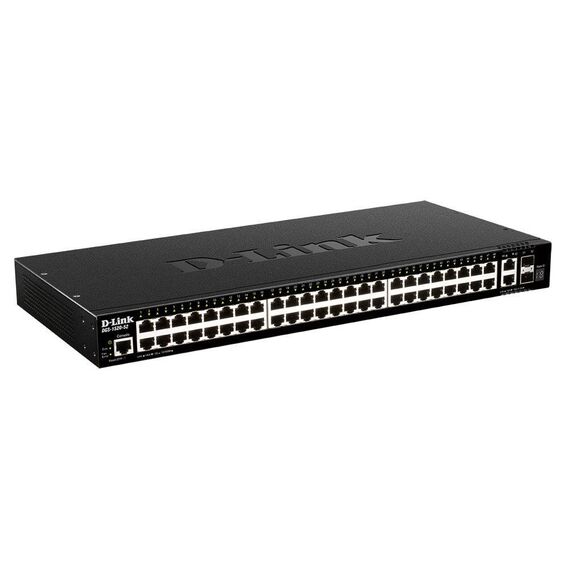

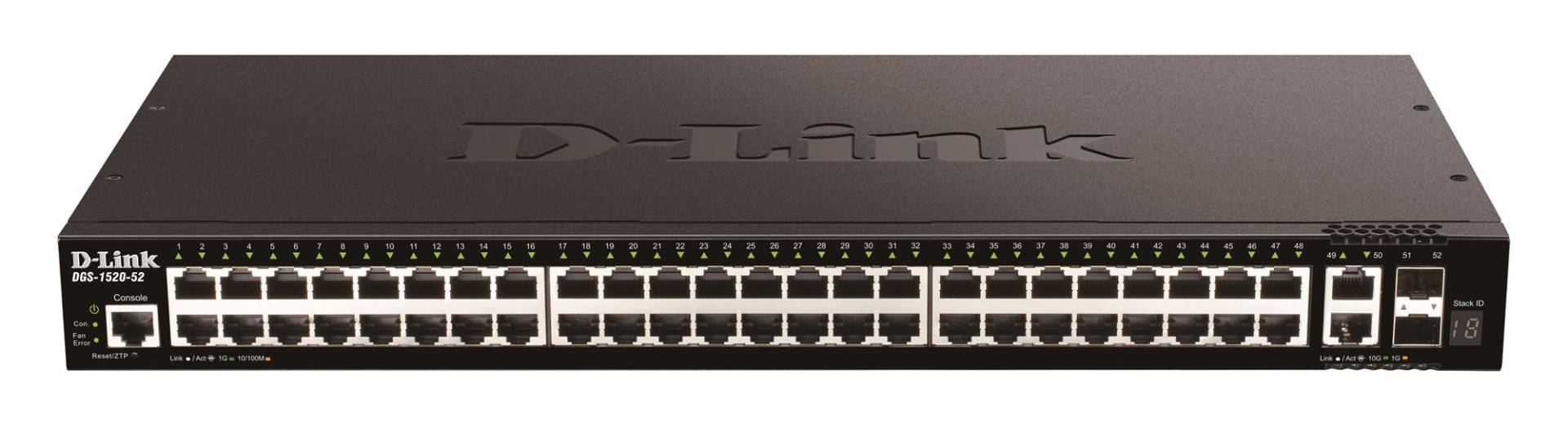

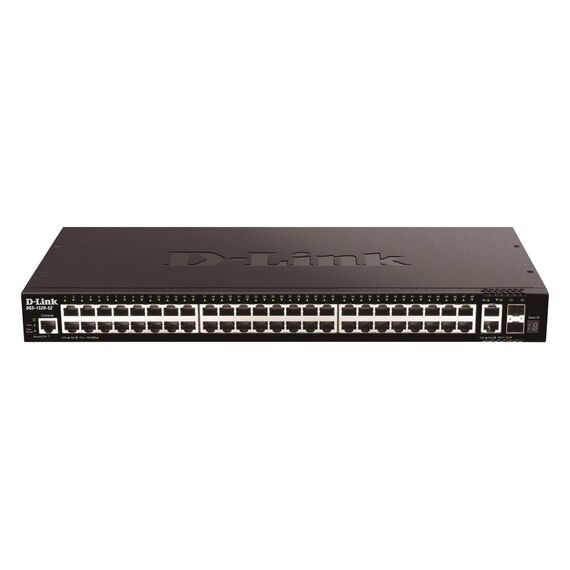

D-Link DGS 1520-52 / Switch / L3 / smart / 48 x 10/100/1000 + 2 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+ / rack-mountable | DGS-1520-52/E
D-Link DGS 1520-52 / Switch / L3 / smart / 48 x 10/100/1000 + 2 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+ / rack-mountable | DGS-1520-52/E
€1489.65 inc. VAT
DGS-1520-52/E
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- High availability
The DGS-1520 Series brings reliable, yet affordable, Gigabit connectivity with four 10-Gigabit ports (two 10G Base-T and two 10G SFP+) for high-speed uplink or stacking. Boost your network performance, simplify your network infrastructure, improve bandwidth and reduce cabling complexity. - Zero Touch provisioning
Zero Touch provisioning is perfect for multi-site network expansions. Simply preconfigure your network settings in a centralized location, then install the DGS-1520 switches for effortless deployments. - Powerful stacking capability
Stack up to eight DGS-1520 switches with a total of 80 GB stacking bandwidth using hybrid mode (copper and/or fiber), increasing flexibility, scalability, and cost effectiveness for SMBs.
Special Features
- Effortless deployment with Zero Touch provisioning
- Multi-site management via Web GUI
- Perfect for SMB access and aggregation layers
- Supports dynamic routing and selective Q-in-Q tagging
- Quickly add 10 GB Ethernet upgrade to infrastructure
Product Specification
| Device Type | Switch - 52 ports - L3 - smart - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 2 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+ |
| Performance | Switching capacity: 176 Gbps ¦ Forwarding performance: 130.95 Mpps ¦ Stacking bandwidth: 80 Gbps |
| Capacity | IGMP groups: 512 ¦ MLD groups: 256 ¦ VLAN groups: 4000 ¦ Static ARP entries: 256 |
| MAC Address Table Size | 16384 entries |
| Jumbo Frame Support | 12288 bytes |
| Max Units In A Stack | 8 |
| Routing Protocol | OSPF, RIP-1, RIP-2, IGMPv2, IGMP, DVMRP, PIM-SM, static IP routing, PIM-DM, IGMPv3, PIM-SSM, ECMP, policy-based routing (PBR), RIPng, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c |
| Encryption Algorithm | SSL, TLS 1.0, TLS 1.1, TLS 1.2 |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | IGMP snooping, port mirroring, store and forward, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Class of Service (CoS), Generic VLAN Registration Protocol (GVRP), Denial of Service (DoS), Ethernet Ring Protection Switching (ERPS), Bridge protocol data unit (BPDU), Link Aggregation, Open Shortest Path First (OSPF), Root Guard, Loop Guard, Ethernet Ring Protection Switching (ERPS) v2, flow mirroring, VLAN mirroring, Weighted Deficit Round Robin (WDRR), Voice VLAN, Private VLAN, Zero-touch provisioning (ZTP), Energy-Efficient Ethernet (EEE), BPDU Filter, Weighted Round Robin (WRR), loopback detection, Network Timing Protocol (NTP) 3, Network Timing Protocol (NTP) 4, D-Link Discovery Protocol (DDP), Rapid Reconfiguration of Spanning Tree (RSTP), VLAN trunking, DNA support, Media Dependent Interface (MDI), Media Dependent Interface Crossover (MDI-X) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qbb |
| Status Indicators | Power, link/activity, fan, stack |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 48 x 1000Base-T RJ-45 ¦ 2 x 10GBase-T RJ-45 ¦ 2 x 10GBase-X SFP+ |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 51.2 Watt |
| Miscellaneous | Miscellaneous |
| MTBF | 364888 hours |
| Compliant Standards | FCC Class A certified, IC Class A, BSMI Class A, VCCI Class A, RCM Class A |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44.1 cm |
| Depth | 20.74 cm |
| Height | 4.4 cm |
| Weight | 2.78 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime with product registration |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 95% RH |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% RH |
Features - D-Link - DGS-1520-52/E
General
48-Port
More Details
Product Code
04:445886
EAN Code
0790069472039
Manufacturer
D-Link
