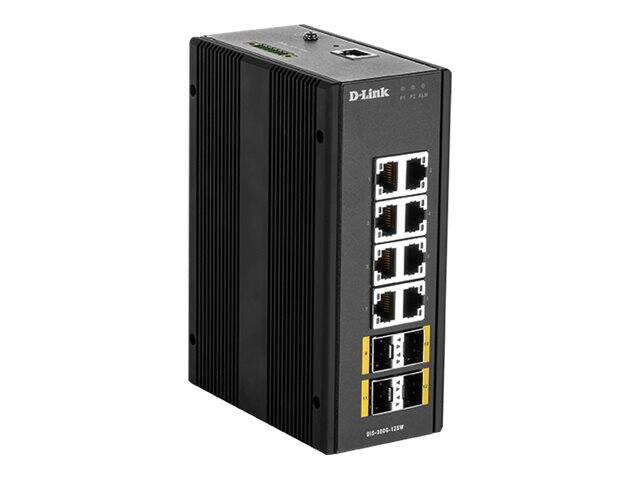

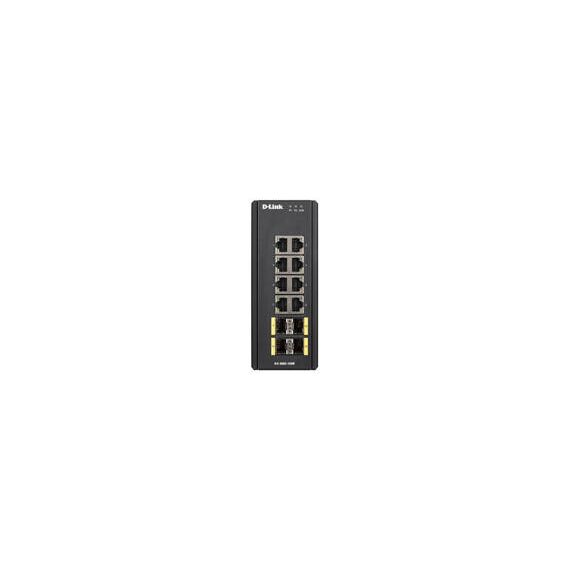

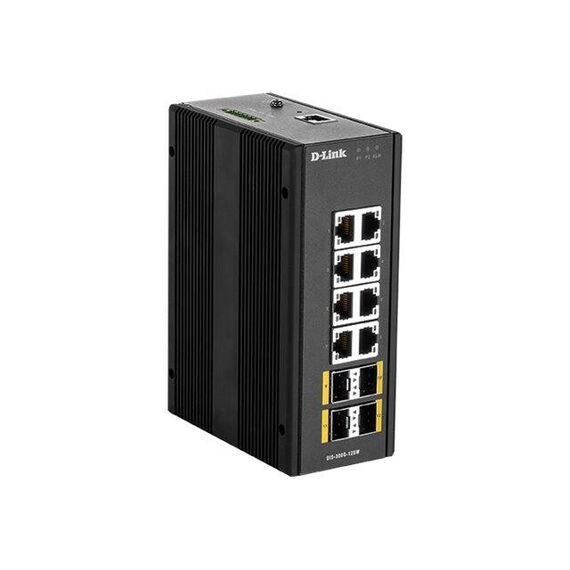

D-Link DIS 300G-12SW - Switch - Managed - 8 x 10/100/1000 + 4 x 100/1000 SFP - DIN rail mountable, wall-mountable | DIS-300G-12SW
DIS-300G-12SW
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Fanless design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimized for the transfer of heat. - Fast deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting. - Withstands extreme temperatures
Operates effortlessly in industrial and harsh environments in a wide range of temperatures.
Special Fetures
- Fanless design
- Fast deployment
- Withstands extreme temperatures
Product Specification
| Device Type | Switch - 8 ports - Managed |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 + 4 x 100/1000 SFP |
| Capacity | VLANs supported: 256 ¦ IGMP multicast groups: up to 255 ¦ Queues per port: 8 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMPv2, IGMP |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, NTP |
| Authentication Method | RADIUS, TACACS+ |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), DHCP server, fanless, DHCP relay, DHCP client, rugged, Strict Priority Queuing (SPQ), Digital Diagnostics Monitoring (DDM), Authentication, Authorization and Accounting (AAA), IGMP querier, VLAN Double Tagging (Q-in-Q), Weighted Round Robin (WRR), Flooding Storm Control |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP) |
| Status Indicators | Power, alarm, link/speed |
| Expansion / Connectivity | |
| Interfaces | 8 x 1000Base-T RJ-45 ¦ 4 x 1000Base-X SFP |
| Miscellaneous | |
| MTBF | 25 years |
| Compliant Standards | EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 15, EN 61000-4-5, EN 61000-6-2, RoHS, UL 60950-1, EN 61000-6-4, WEEE, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30 |
| Dimensions & Weight | |
| Width | 6.1 cm |
| Depth | 15.4 cm |
| Height | 10.9 cm |
| Weight | 1.086 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 5 - 95% |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Humidity Range Storage | 5 - 95% |
