Nuclias Connect DAP-X2810 - Radio access point - 802.11a/b/g/n/ac/ax - 2.4 GHz, 5 GHz - wall / ceiling mountable | DAP-X2810
Product Features
- Wi-Fi 6 ready
The DAP-X2810 is empowered with next generation Wi-Fi 6. Enhanced MU-MIMO with even more uplink and downlink streams serves more devices simultaneously. OFDMA dramatically increases transmission efficiency and 1024-QAM packs even more data, bringing unadulterated speed increases of a searing 25%. - Wi-Fi that turbo boosts business performance
With the DAP-X2810 by your side, it's all systems go. It is fully prepared to handle all day-to-day demands of busy SMBs. Equipped with Wi-Fi 6, there are massive performance improvements, as well as all the features of 11ac now available for the 2.4 GHz band too. - Take a load off and let your AP do the hard work
The DAP-X2810's Load Balancing feature spreads the work load between two or more Access Points to get optimal resource utilization, throughput and response time, while Airtime Fairness helps distribute equal amounts of air time to each connected client. Band Steering auto-connects devices such as smart phones and tablets to the higher-capacity 5 GHz band while allowing devices 2.4 GHz-ready to remain. The result is a steady, consistent connection for each user - the perfect balancing act. - No-wait Wi-Fi even at peak time with MU-MIMO
Equipped with the latest 802.11ax MU-MIMO technology and 1800 Mbps throughput, delivering exceptional connectivity to more users and devices just got a lot easier. Your network will not balk, even at the busiest of times. - Multi-mode makes the most of your network capabilities
In order to achieve optimal network performance, the DAP-X2810 has several operational modes tailored to best fit the individual needs of your network. Access Point, WDS (Wireless Distribution System), and WDS with Access Point modes allow for flexible, customizable deployment whatever your requirements.
Special Fetures
- Easy to manage with D-Link's free software-based management solution, Nuclias Connect
- Wi-Fi 6 ready: delivers greater network efficiency and lower latency, with nearly four times the capacity of previous Wi-Fi standards
- MU-MIMO slices through congestion, reducing wait time for all users
- Superior throughput with dual-band Wi-Fi offers high transfer speeds of up to 1800 Mbps
- Coverage is shared more efficiently over more users with Airtime Fairness
- Band Steering intelligently manages users, pushing them onto the higher radio frequency when possible
- Support for Power of Ethernet 802.3at means less wires, for cleaner and easier deployment
- Stay secure with the latest WPA3 Personal & Enterprise wireless encryption
Product Specification
Device Type | Radio access point |
Ruggedized Design | Indoor |
Width | 21.24 cm |
Depth | 21.24 cm |
Height | 4.67 cm |
Weight | 763.8 g |
Networking | |
Form Factor | Wall / ceiling mountable |
Connectivity Technology | Wireless |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
Network / Transport Protocol | POP3, HTTP, Telnet |
Remote Management Protocol | Telnet, HTTP, SSH, LDAP, RADIUS |
Frequency Band | 2.4 GHz, 5 GHz |
Performance | Maximum data rate (2.4 GHz): 575 Mbps ¦ Maximum data rate (5 GHz): 1200 Mbps |
Wi-Fi Rating | AX1800 |
Status Indicators | Power, status |
Features | Wireless Distribution System (WDS) support, reset button, Traffic Control, Captive Portal, 802.1x authentication, MU-MIMO technology, band steering, Airtime Fairness, Energy-Efficient Ethernet (EEE) |
Encryption Algorithm | 128-bit WEP, 64-bit WEP, SSL, WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal |
Authentication Method | Secure Shell (SSH), RADIUS, Radio Service Set ID (SSID), LDAP |
Compliant Standards | IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
Aerial | |
Antenna | Internal |
Antenna Qty | 4 |
Expansion / Connectivity | |

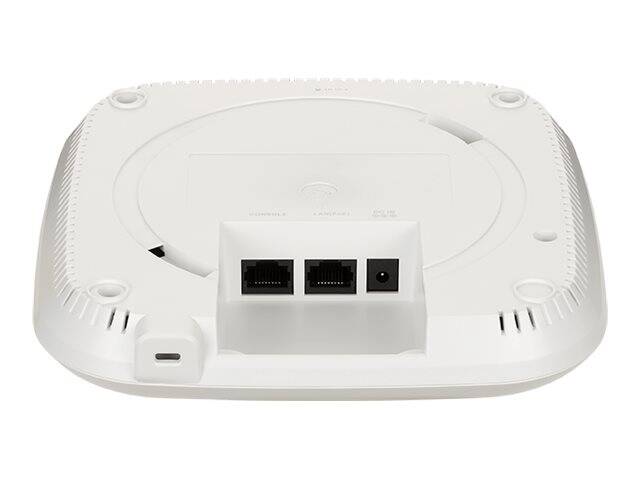

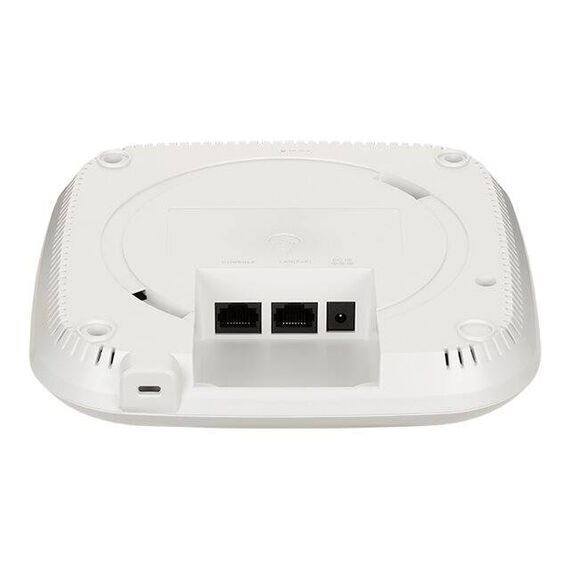

Interfaces | 1 x Ethernet 1000 (PoE) - RJ-45 ¦ 1 x console - RJ-45 |
Miscellaneous | |
MTBF | 30,000 hour(s) |
Compliant Standards | FCC |
Power | |
Power Over Ethernet (PoE) Supported | PoE |
Power Consumption Operational | 19.44 Watt |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% |
