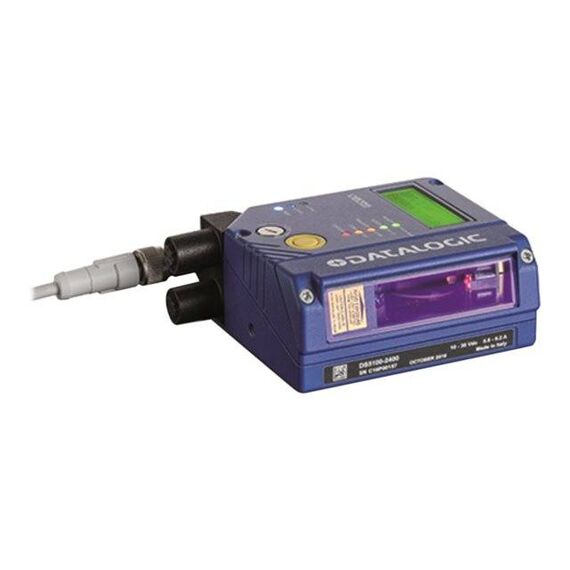

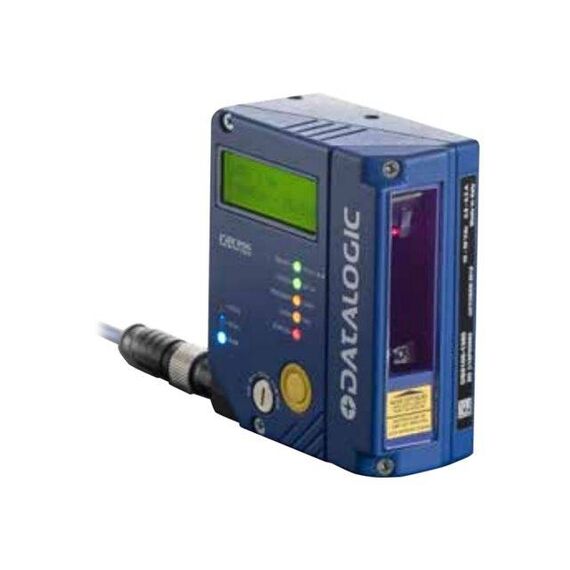

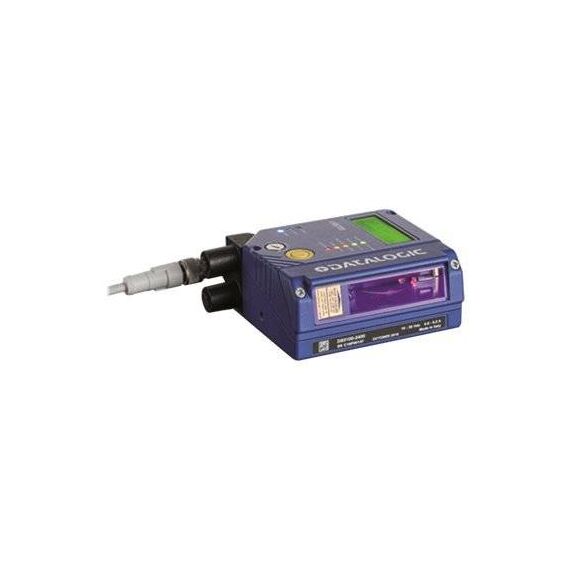

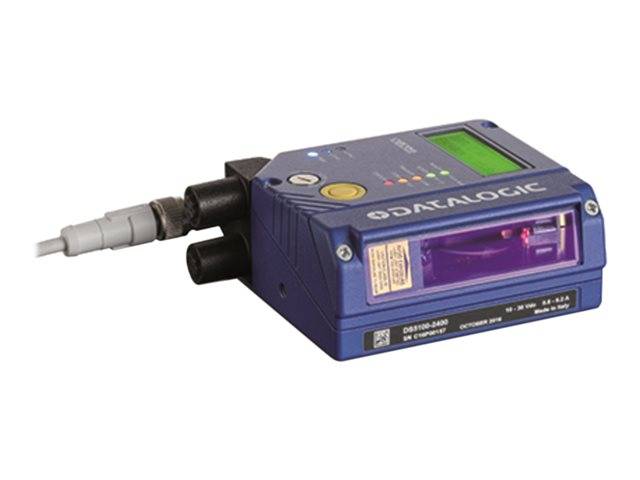

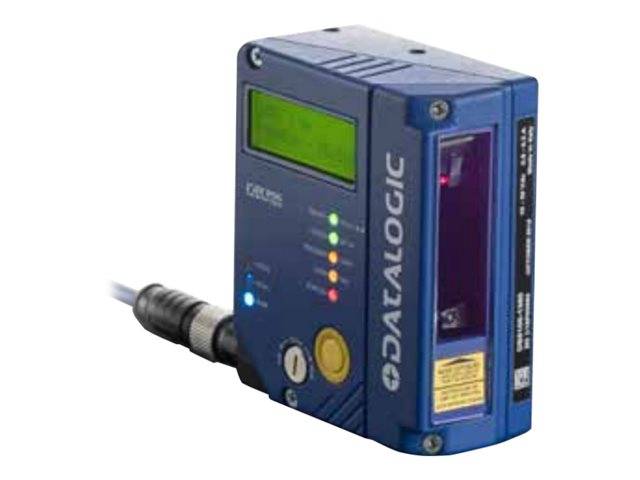

Datalogic DS5100-1300 / Medium Range / barcode scanner / desktop / 800 scan / sec / decoded / Ethernet, RS-232/485 | 931061334
Please sign in so that we can notify you about a reply
Datalogic DS5100-1300 / Medium Range / barcode scanner / desktop / 800 scan / sec / decoded / Ethernet, RS-232/485 | 931061334
Product Specification
| Type | Barcode scanner - desktop - stationary |
| Interface Type | Ethernet, RS-232/485 |
| Minimum Bar Width | 8 mil |
| Scan Element Type | Laser |
| Scan Speed | 800 scan / sec |
| Max Working Distance | 140 cm |
| Decode Capability | Code 93, Code 39, ISBT 128, Codabar, Code 128, Code 2 of 5, UPC, Plessey, Pharmacode, EAN-128 |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| Features | X-PRESS interface, ACR 4, Digital Signal Technology (DST) |
| Character Resolution | 2 lines x 16 characters |
| Interfaces | 1 x RS-232/485 ¦ 1 x Ethernet |
| Compliant Standards | IP65 |
| Voltage | DC 10 - 30 V |
| Power Consumption Operational | 7.5 Watt |
| Width | 10.1 cm |
| Depth | 10.42 cm |
| Height | 4.2 cm |
| Weight | 520 g |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
Features - Datalogic - 931061334
More Details
Product Code
CA05887
EAN Code
-
Manufacturer
Datalogic
