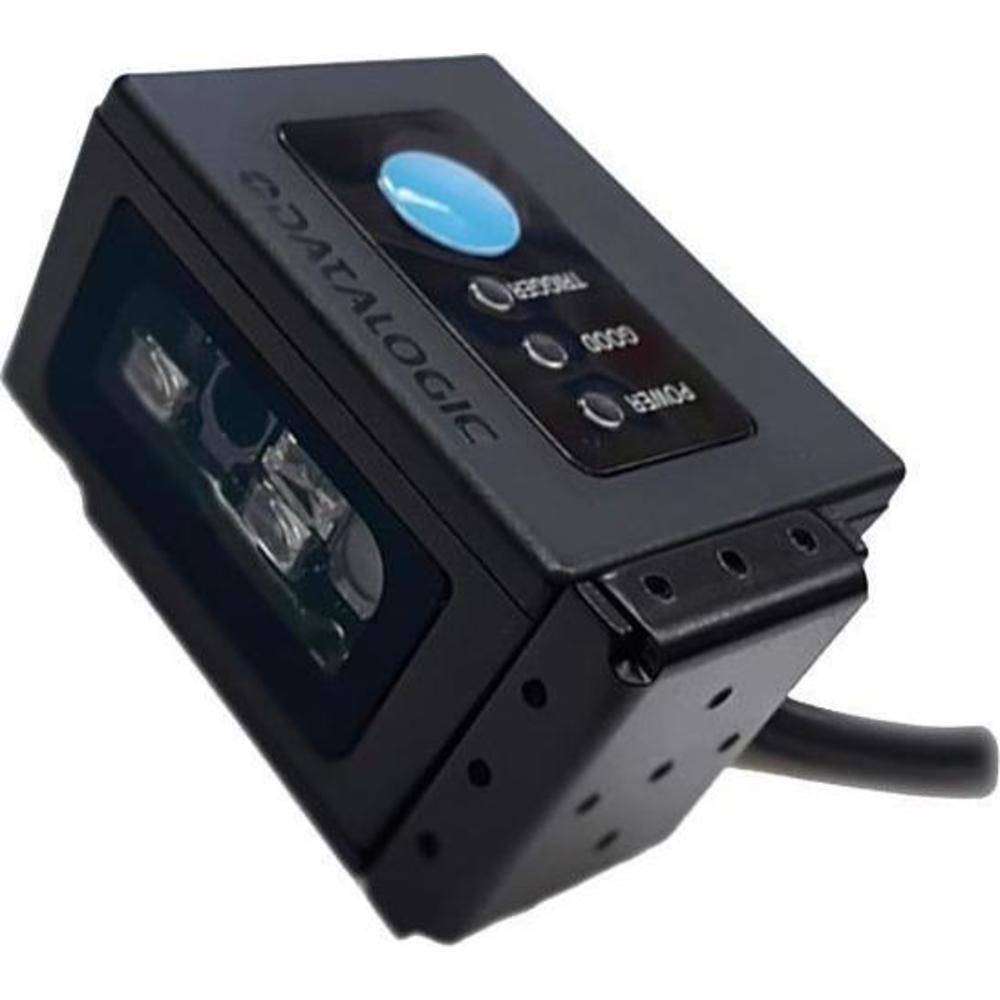

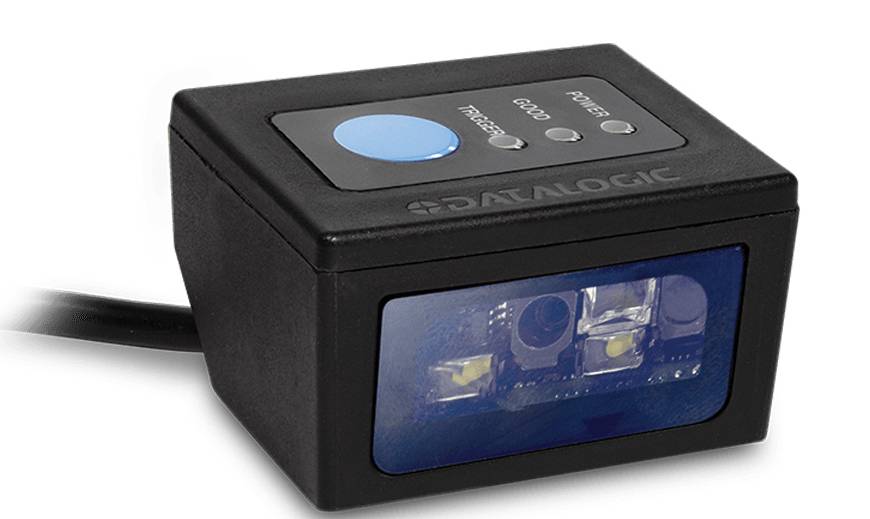

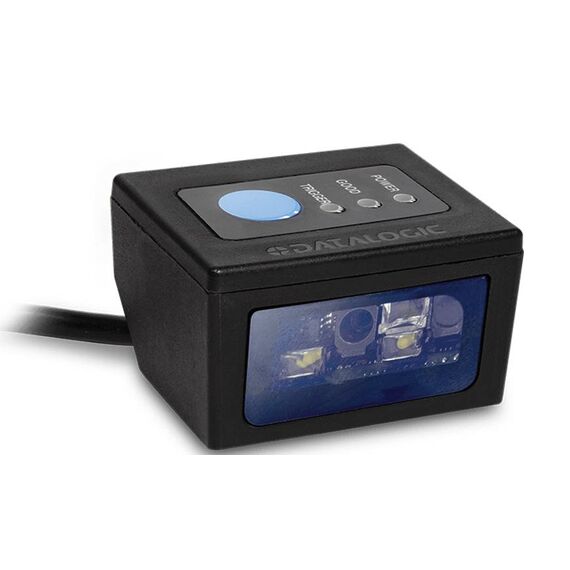

Datalogic DSM0422-DL Fixed Scan Module / Barcode scanner / desktop / decoded / USB | DSM0422-DL
Please sign in so that we can notify you about a reply
Product Features
- Rugged construction
The enclosure is constructed with high-impact resin that is resistant to cleanings solvents and disinfectant solutions. IP54 particulate and water sealing allows rugged and dependable scanning performance. - Simple integration
The DSM0422-DL Fixed Scan Module provides simple electrical and mechanical integration for system designers.
Special Features
- Rugged construction
- Simple integration
Product Specification
| Type | Barcode scanner - desktop - stationary |
| Colour | Black |
| Barcode | Barcode |
| Interface Type | USB |
| Minimum Bar Width | 2 mil |
| Scan Element Type | Visible laser diode |
| Sensor Resolution | 1280 x 960 |
| Light Source Wave Length | 650 nm |
| Scan Mode | Fixed projection |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | Pharmacode 39, EAN/JAN, Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, IATA, QR code, MaxiCode, Aztec code, Telepen, BC 412, MicroPDF417, Codabar, Code 128, Code 11, Code 2 of 5, UPC, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Australian Post, British Post, China Post, Japanese Post, Kix (Netherlands) Post, Korea Post, Trioptic Code, MacroPDF417, Royal Mail, Micro QR code, CC-A, CC-B, CC-C, GS1 DataBar Omnidirectional, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, GS1 DataBar Limited, Standard 2 of 5, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, Intelligent Mail Barcode, EAN-128, RSS-14, Datalogic 2 of 5, UPC-A / E, UPC/EAN/JAN Composites |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Image capturing, Green Spot technology, white LEDs illumination |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | USB |
| Miscellaneous | Miscellaneous |
| Compliant Standards | IP54, China RoHS, IEC 60825 Class 2, EU RoHS |
| Power | Power |
| Electric Current Required | 55 mA (standby), 214 mA (operating), 5 mA (low power) |
| System Requirements | System Requirements |
| OS Required | Linux, Microsoft Windows, Android |
| Dimensions & Weight | Dimensions & Weight |
| Width | 4.7 cm |
| Depth | 2.7 cm |
| Height | 3.8 cm |
| Weight | 131 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 1 m to concrete |
