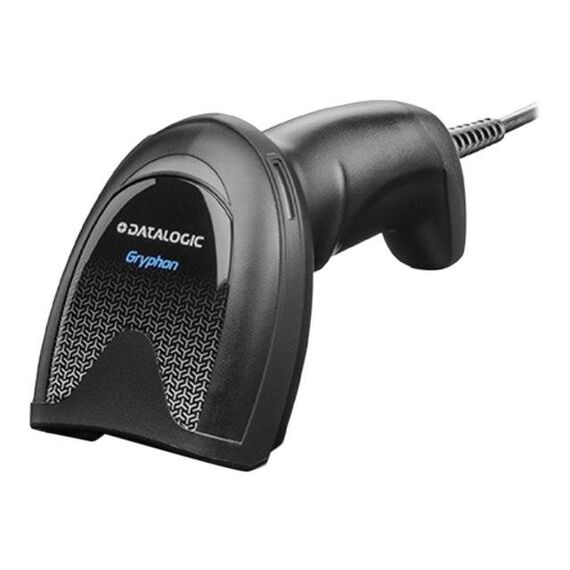

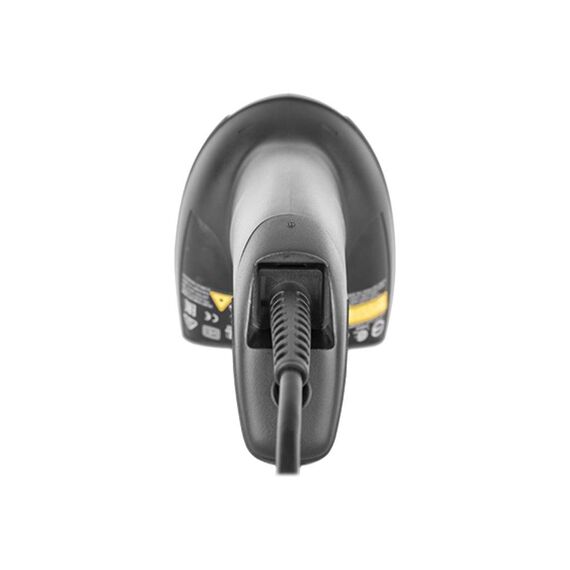

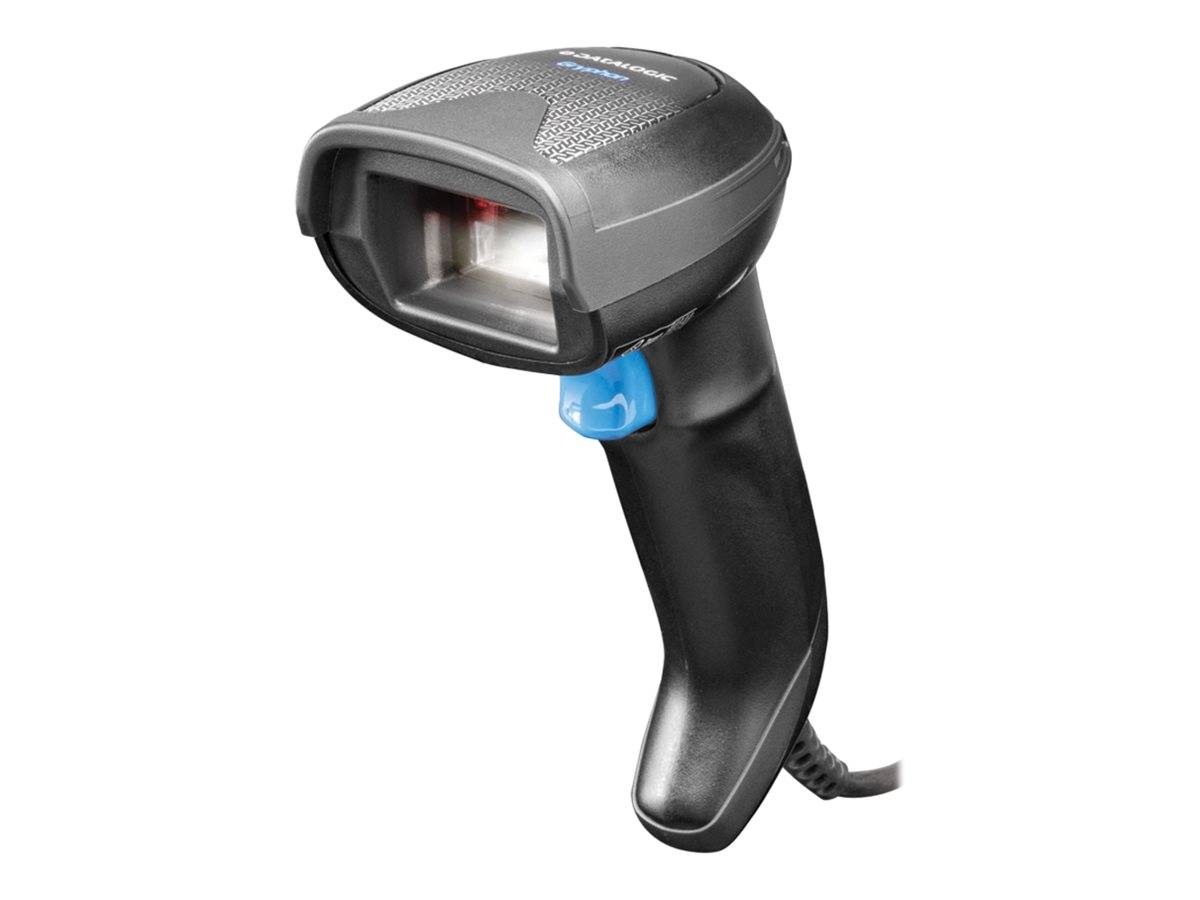

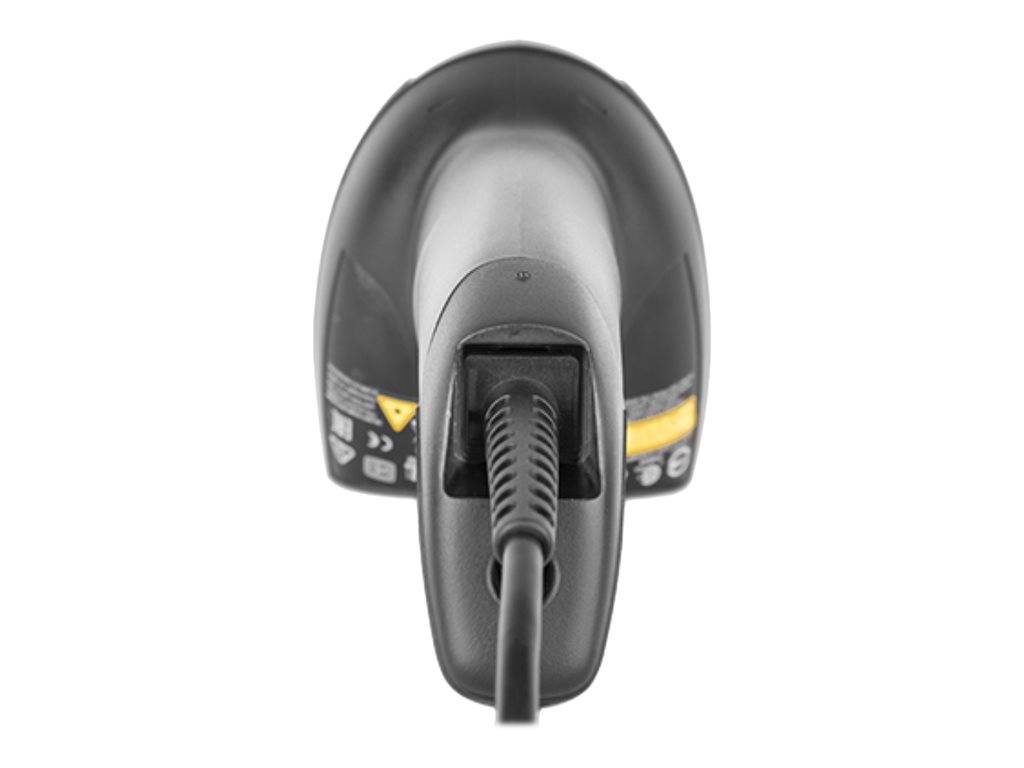

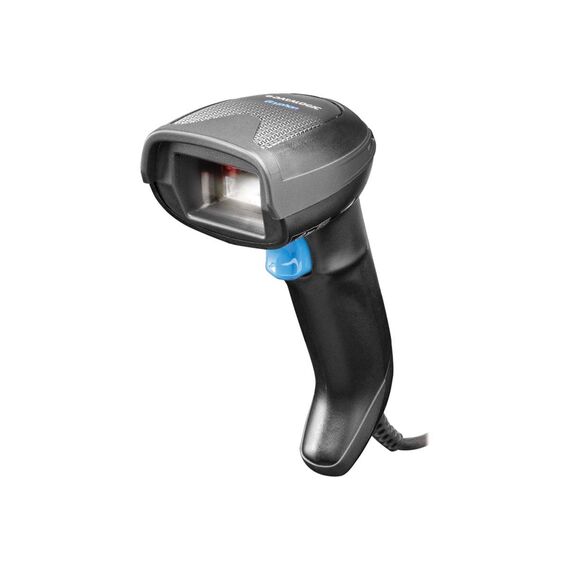

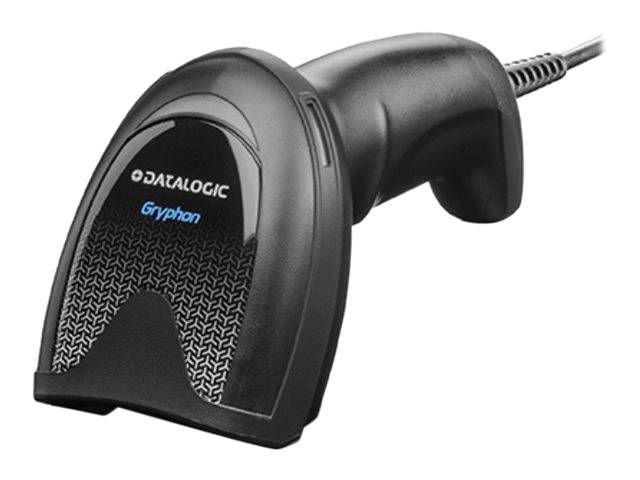

Datalogic Gryphon I GD4590 / High Density (HD) / barcode scanner / handheld / 2D imager / decoded / keyboard wedge, RS-232, USB | GD4590-BK-B-HD
Please sign in so that we can notify you about a reply
Product Features
- Advanced technologies for today's POS
Perfect for both handheld and presentation reading, the Gryphon I GD4500 imager exploits Datalogic motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering more operational choices. - Simple to use and deploy
The Gryphon I GD4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes.
Special Features
- Advanced technologies for today's POS
- Simple to use and deploy
Product Specification
| Type | Barcode scanner - handheld |
| Colour | Black |
| Barcode | Barcode |
| Interface Type | Keyboard wedge, RS-232, USB |
| Scan Element Type | 2D imager |
| Sensor Resolution | 1280 x 800 |
| Light Source Wave Length | 650 nm |
| Skew (Degrees) | 65 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | MaxiCode, Aztec code, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australian Post, British Post, China Post, Japanese Post, Kix (Netherlands) Post, MacroPDF417, RM4SCC, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, UPC A Composite, UPC E Composite |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Datalogic Three Green Lights (3GL), Green Spot technology, Digimarc Barcode Technology, Direct Part Mark (DPM) |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x USB ¦ 1 x keyboard wedge ¦ 1 x RS-232 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Permanent Base |
| Compliant Standards | RoHS, IP52 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 6.8 cm |
| Depth | 10.9 cm |
| Height | 16.6 cm |
| Weight | 161 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 1.8 m to concrete |
Features - Datalogic - GD4590-BK-B-HD
More Details
Product Code
CA07216
EAN Code
-
Manufacturer
Datalogic
