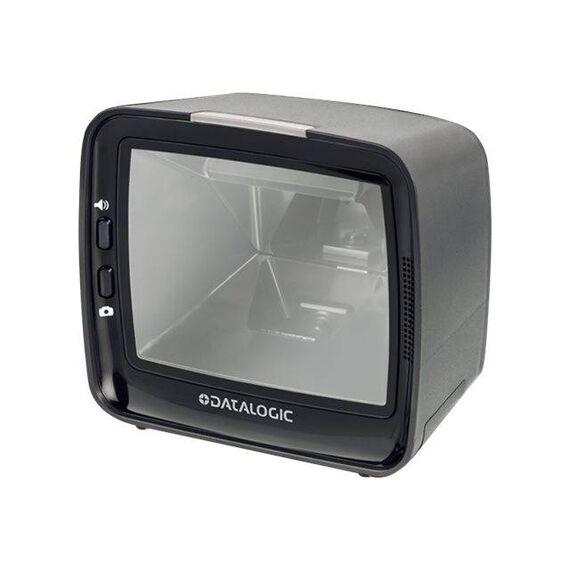

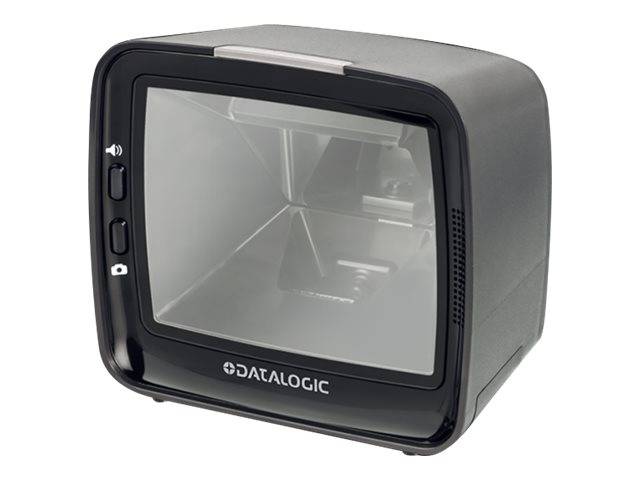

Datalogic Magellan 3450VSi / Kit / barcode scanner / desktop / 2D imager / decoded / USB | M3450-010200-07604
Please sign in so that we can notify you about a reply
Special Features
- Excellent performance on 1D, 2D, and Digimarc barcodes whether printed or displayed on smartphones maximizes productivity
- Object Sense illumination control automatically optimizes LED levels for improved user ergonomics and lower power consumption
- Multiple interfaces in each unit including RS-232, OEM USB, USB keyboard and USB COM
- Flexible enterprise management
- Unmatched reliability for retail with quality materials, excellent sealing, and an all solid-state design
Product Specification
| Type | Barcode scanner - desktop - stationary |
| Localisation | Europe |
| Barcode | Barcode |
| Interface Type | USB |
| Minimum Bar Width | 5 mil |
| Scan Field Width | 20.3 cm |
| Scan Element Type | 2D imager - LED |
| Sensor Resolution | 1280 x 1024 |
| Scan Mode | Fixed projection |
| Max Working Distance | 14 cm |
| Skew (Degrees) | 75 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | QR code, MaxiCode, Aztec code, MicroPDF417, PDF417, Data Matrix, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Checkpoint Electronic Article Surveillance (EAS), ESD (electrostatic discharge) safe, Micro SD card slot |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x USB - Type A |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting kit |
| Cables Included | 1 x USB cable - 4.5 m |
| Compliant Standards | RoHS, IP52, China RoHS, EN 62471:2008, IEC 62471 |
| Power | Power |
| Power Device | Power adapter |
| Voltage | AC 120/230 V (50 Hz) |
| Power Consumption Operational | 3.8 Watt |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15.2 cm |
| Depth | 9.4 cm |
| Height | 13.7 cm |
| Weight | 600 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Datalogic - M3450-010200-07604
More Details
Product Code
V384258
EAN Code
-
Manufacturer
Datalogic
