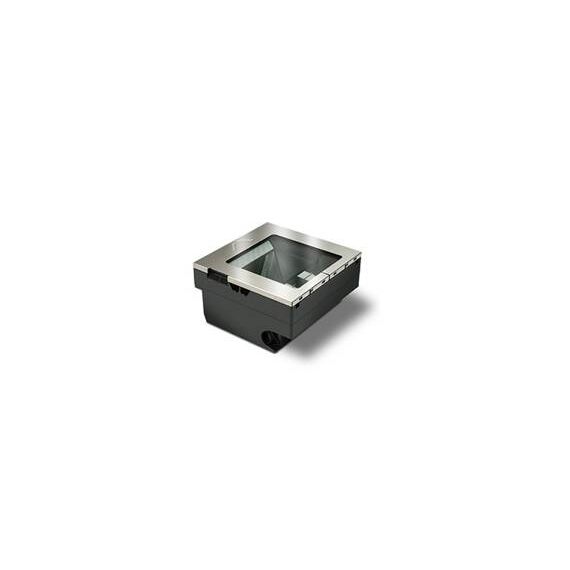

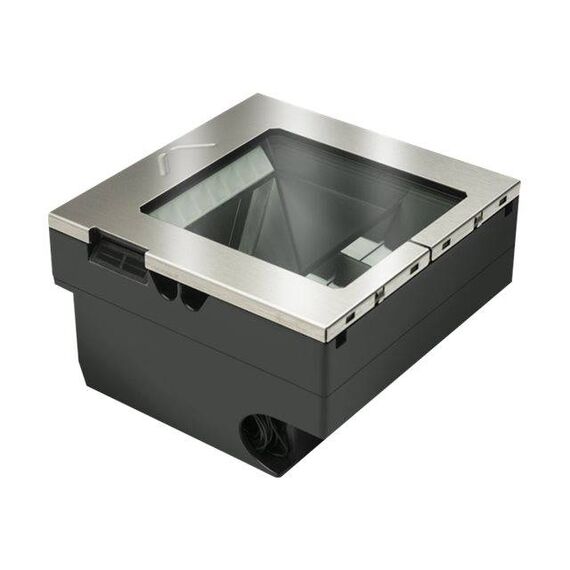

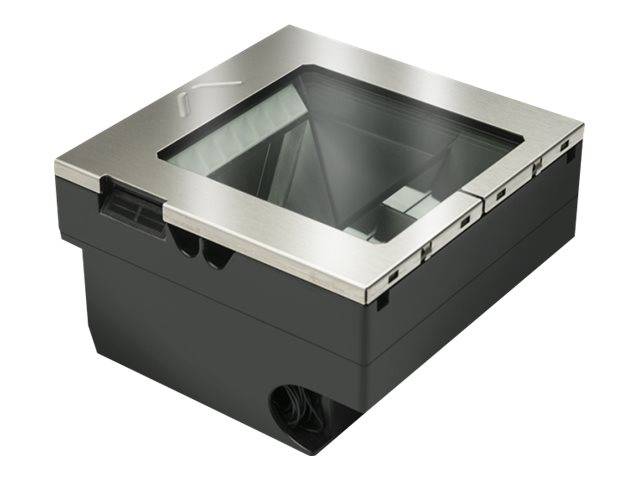

Datalogic Magellan 3550HSi / Barcode scanner / integrated / 2D imager / decoded / USB | M3551-010210-00403
Please sign in so that we can notify you about a reply
Special Features
- Advanced digital imaging provides advanced performance and reliability
- Seamless 1D, 2D and Digimarc digital watermark reading
- Smoothly reads all bar codes, whether displayed on cell phones or printed
- Subtle, adaptive illumination for user comfort
- Solid-state electronics for silent operation and superior reliability
- Image capture
- MicroSD card slot
- Multiple interfaces in every unit
- Powered USB auxiliary port
- Diagnostics reporting
Product Specification
| Type | Barcode scanner - integrated - stationary |
| Barcode | Barcode |
| Interface Type | USB |
| Minimum Bar Width | 5 mil |
| Scan Element Type | 2D imager - LED |
| Sensor Resolution | 1280 x 1024 |
| Window Glass Type | Sapphire Glass (SG) |
| Scan Mode | Fixed projection |
| Max Working Distance | 10.2 cm |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | QR code, MaxiCode, Aztec code, MicroPDF417, PDF417, Data Matrix, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Checkpoint Electronic Article Surveillance (EAS), ESD (electrostatic discharge) safe, Micro SD card slot |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x USB - Type A |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting kit |
| Cables Included | 1 x USB cable - 4.6 m |
| Compliant Standards | RoHS, IP52, China RoHS, EN 62471:2008, IEC 62471 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15.2 cm |
| Depth | 15.2 cm |
| Height | 8.7 cm |
| Weight | 980 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Datalogic - M3551-010210-00403
More Details
Product Code
V383824
EAN Code
-
Manufacturer
Datalogic
