Datalogic PowerScan PD9330 Auto Range / Barcode scanner / Rugged / handheld / 35 scan / sec / decoded / keyboard wedge, RS-232, USB / Cables sold separately | PD9330-AR
Please sign in so that we can notify you about a reply
Datalogic PowerScan PD9330 Auto Range / Barcode scanner / Rugged / handheld / 35 scan / sec / decoded / keyboard wedge, RS-232, USB / Cables sold separately | PD9330-AR
Description

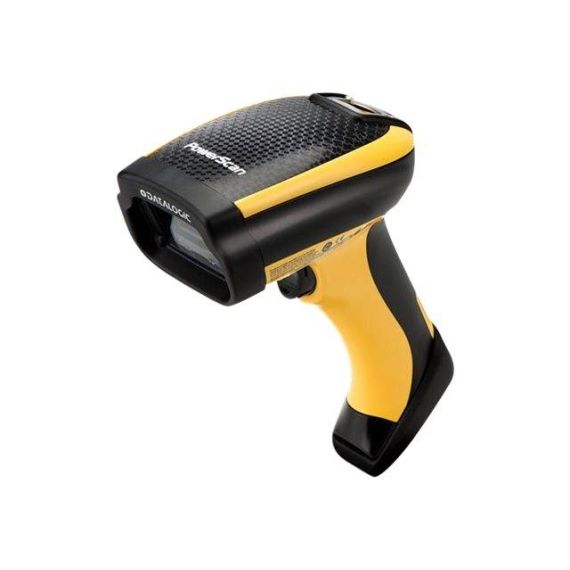

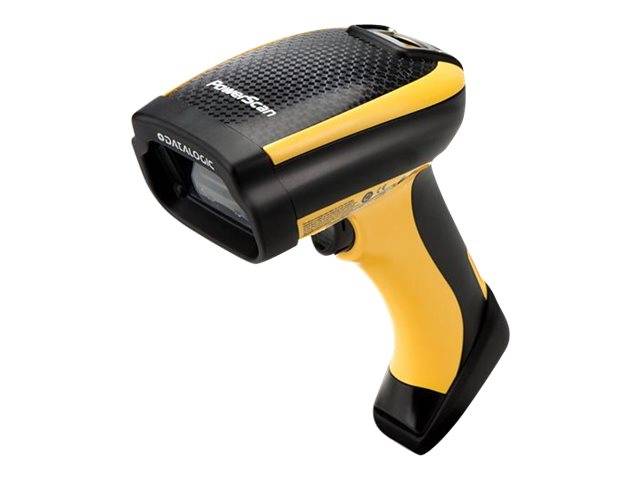

The PowerScan PD9330 laser scanner offers state-of-the-art performance in a corded industrial product. The PD9330 reader's mechanics have been developed to withstand extreme environmental conditions, maintaining consistent reading performance without degrading performance or reliability. Its ergonomic enclosure is lightweight and well-balanced to ensure optimal operator comfort during scan-intensive operations. A built-in metal tether hook for suspended applications ensures workplace productivity.
Datalogic PowerScan PD9330 Auto Range / Barcode scanner | PD9330-AR
Special Features
- Industrial laser barcode reader
- Superior reading performance
- Built to last
- Developed with the user in mind
Product features
- Superior reading performance
The PD9330 reader features exclusive 3 Green Lights (3GL) for superior good read feedback. The 'Green Spot' technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle. - Developed with the user in mind
The scaners have multi-interface capabilities built in featuring the popular interfaces. The Datalogic provides user-friendly features, that simplify the startup procedure, even for inexperienced users.
Product Specification
| Type | Barcode scanner - handheld |
| Colour | Black/yellow |
| Interface Type | Keyboard wedge, RS-232, USB |
| Minimum Bar Width | 7.5 mil |
| Scan Element Type | Visible laser diode |
| Light Source Wave Length | 630-680 nm |
| Scan Mode | Single-pass |
| Scan Speed | 35 scan / sec |
| Max Working Distance | 11.5 m |
| Skew (Degrees) | 65 |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | EAN/JAN, Code 93, Code 39, ISBN, GS1 DataBar, Code 32, Code 39 Full ASCII, Codabar, Code 128, UPC, Interleaved 2 of 5, Standard 2 of 5, EAN-128, MSI |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Datalogic Three Green Lights (3GL), Green Spot technology |
| Interfaces | 1 x keyboard wedge ¦ 1 x RS-232 ¦ 1 x USB |
| Compliant Standards | RoHS, IP65, EN 60825-1 Class 2, CDRH Class II, China RoHS |
| Voltage | DC 4.5 - 30 V |
| Software Included | Datalogic Aladdin, OPOS/JavaPOS Drivers |
| Width | 7.4 cm |
| Depth | 11 cm |
| Height | 21.2 cm |
| Weight | 375 g |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 2 m to concrete |
Features - Datalogic - PD9330-AR
More Details
Product Code
V383262
EAN Code
5711783373971
Manufacturer
Datalogic
