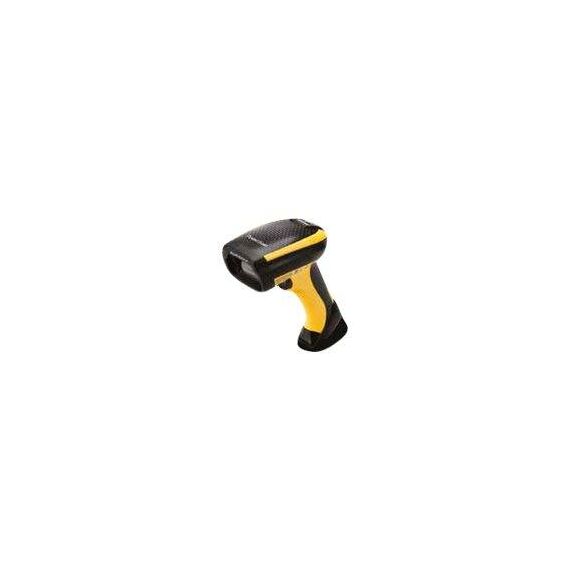

Datalogic PowerScan PM9501-AR / Barcode scanner / portable / 2D imager / decoded / RF(433 MHz) / Scanner Only | PM9501-AR433RB
Please sign in so that we can notify you about a reply
Product Specification
| Type | Barcode scanner - portable |
| Colour | Black, yellow |
| Barcode | Barcode |
| Interface Type | RF(433 MHz) |
| Minimum Bar Width | 3 mil |
| Scan Element Type | 2D imager |
| Scan Mode | Single-pass |
| Max Working Distance | 20 m |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 80 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | EAN/JAN, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australian Post, China Post, Japanese Post, Kix (Netherlands) Post, MacroPDF417, RM4SCC, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Swedish Post, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, Portuguese Post, Intelligent Mail Barcode, UPC A Composite, UPC E Composite |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| OK Notification | Beeper, LED indicator |
| Features | Triggered, ESD (electrostatic discharge) safe, Datalogic Three Green Lights (3GL) |
| Miscellaneous | Miscellaneous |
| Compliant Standards | IP65, EN 60825-1 Class 2, CDRH Class II, China RoHS, IEC 62471, EU RoHS |
| Power | Power |
| Battery | 1 x Lithium Ion |
| Dimensions & Weight | Dimensions & Weight |
| Width | 7.4 cm |
| Depth | 11 cm |
| Height | 21.2 cm |
| Weight | 460 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 2 m to concrete |
Features - Datalogic - PM9501-AR433RB
More Details
Product Code
CA01697
EAN Code
-
Manufacturer
Datalogic
