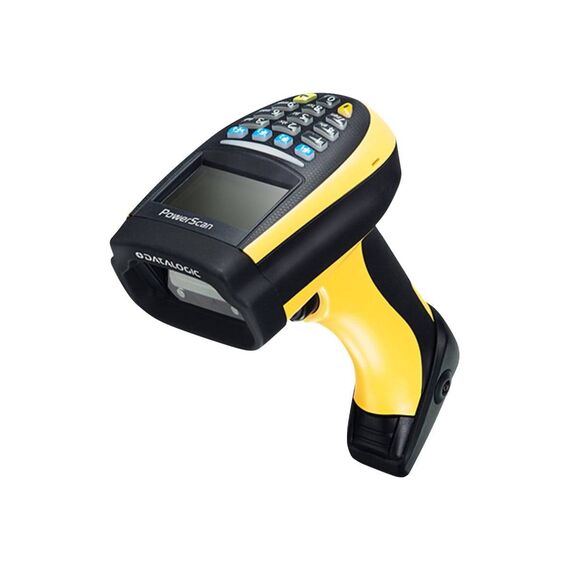

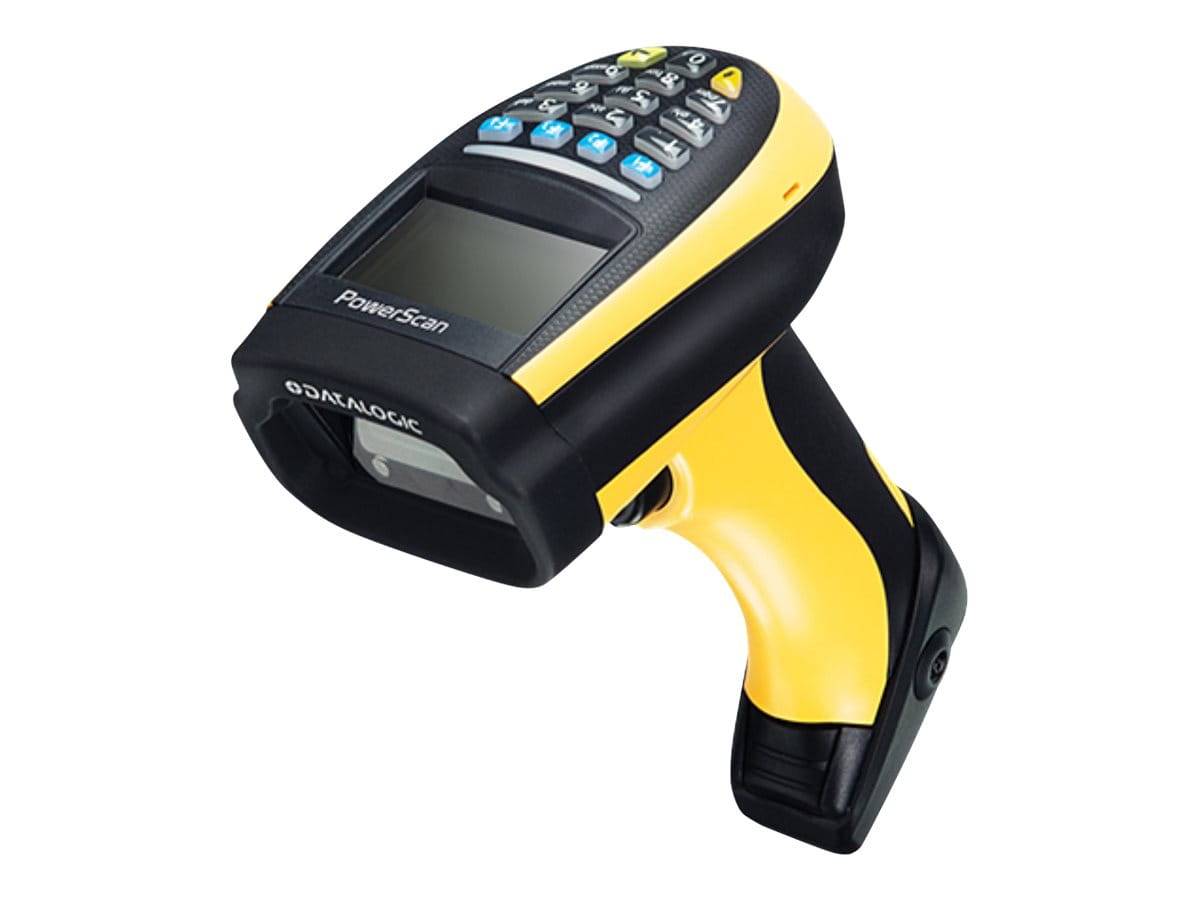

Datalogic PowerScan PBT9501 / Barcode scanner / portable / decoded / RF(433 MHz) | PM9501-DKHP433RB
Please sign in so that we can notify you about a reply
Product Features
- Ergonomic shape with well-balanced weight
The PowerScan 9501 imagers have an ergonomic shape with well-balanced weight and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement. Additionally, the PowerScan 9501 area imagers use a soft-pulsed white illumination light resulting in reduced flashes, which is much gentler on the eyes during scan-intensive operations. - 'Green Spot' technology
The patented 'Green Spot' technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces and offer an optional Ethernet for standard or industrial uses. - Motionix motion-sensing technology
The PowerScan 9501 imagers introduce a modern technology with the 'Liquid Lens' feature which increases the depth of field and allows the reading of standard, wide and high density bar codes. Datalogic's Motionix motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (hand held or presentation scanning).
Special Features
- Ergonomic shape with well-balanced weight
- Green Spot' technology
- Motionix motion-sensing technology
Product Specification
| Type | Barcode scanner - portable |
| Colour | Black, yellow |
| Barcode | Barcode |
| Interface Type | RF(433 MHz) |
| Minimum Bar Width | 2.5 mil |
| Scan Element Type | Visible laser diode |
| Sensor Resolution | 1280 x 1024 |
| Light Source Wave Length | 630-680 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 110 cm |
| Skew (Degrees) | 40 |
| Pitch (Degrees) | 40 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | EAN/JAN, Code 93, Industrial 2 of 5, Code 39, ISBT 128, IATA, ISBN, GS1 DataBar, QR code, MaxiCode, Aztec code, Code 39 Full ASCII, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, Australian Post, China Post, Japanese Post, Kix (Netherlands) Post, Plessey, MacroPDF417, RM4SCC, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Swedish Post, Standard 2 of 5, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, Portuguese Post, EAN-128, EAN-8, EAN-13, MSI, Code 39 CIP, UPC A Composite, UPC E Composite, Base 32 |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| OK Notification | Beeper, LED indicator |
| Features | Triggered, ESD (electrostatic discharge) safe, Datalogic Three Green Lights (3GL), Datalogic STAR Cordless System, autofocus, Datalogic Motionix technology |
| Keyboard | Keyboard |
| Keys Qty | 16 |
| Networking | Networking |
| Wireless Connectivity | RF |
| Display | Display |
| Display Resolution | 48 x 132 |
| Character Resolution | 6 lines x 21 characters |
| Miscellaneous | Miscellaneous |
| Compliant Standards | REACH, IP65, CDRH Class II, China RoHS, IEC 60825 Class 2, IEC 62471, EU RoHS |
| Power | Power |
| Power Device | Power adapter |
| Electric Current Required | 150 mA (operating) |
| Battery | 1 x Lithium Ion |
| Software | Software |
| Software Included | Datalogic Aladdin, OPOS/JavaPOS Drivers |
| Dimensions & Weight | Dimensions & Weight |
| Width | 7.4 cm |
| Depth | 11 cm |
| Height | 21.2 cm |
| Weight | 440 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 2 m to concrete |
Features - Datalogic - PM9501-DKHP433RB
More Details
Product Code
CA06446
EAN Code
-
Manufacturer
Datalogic
