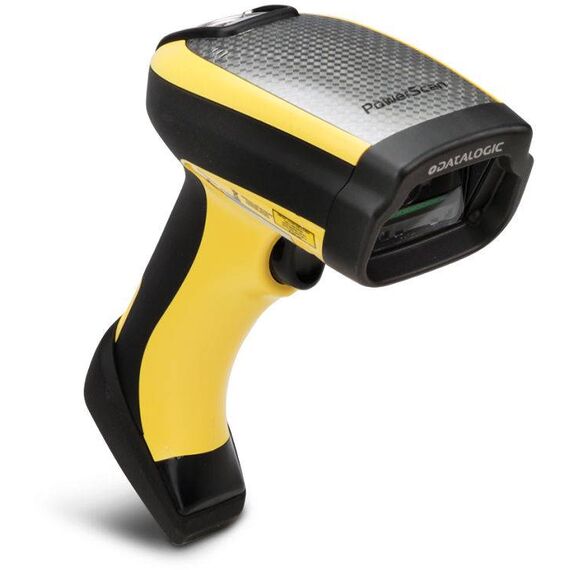

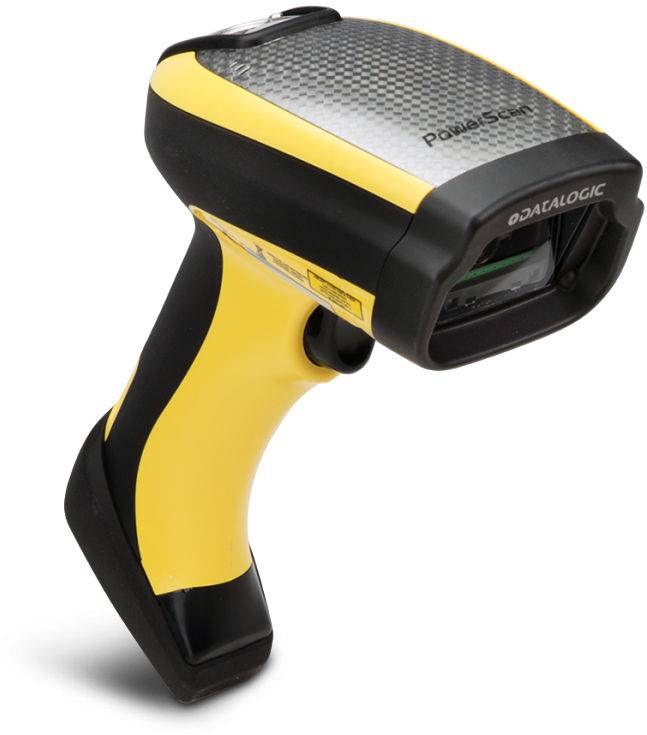

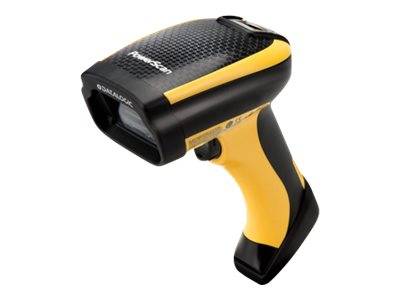

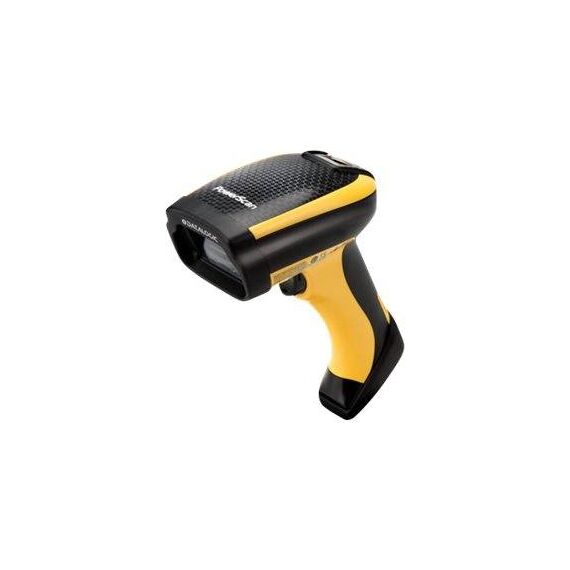

Datalogic PowerScan PD9531-HP / High Performance / barcode scanner / handheld / 2D imager / decoded / interface cable required | PD9531-HP
Please sign in so that we can notify you about a reply
Datalogic PowerScan PD9531-HP / High Performance / barcode scanner / handheld / 2D imager / decoded / interface cable required | PD9531-HP
Description
Warehouses, logistic centers and manufacturing plants depend on speed and reliability when managing goods and tracking merchandise in order to improve efficiency while reducing costs. Datalogic's PowerScan PD9530 area imager is the perfect answer for these applications. An intuitive and effortless scanning experience is the target of the PowerScan 9500 family. It combines omnidirectional reading capabilities, which is typical in all area imaging scanners, with outstanding optical characteristics. The result is a scanner that is able to read any kind of bar code, regardless of the orientation.
Datalogic PowerScan PD9531-HP / High Performance | PD9531-HP
Special Features
- Built-in multiple interface
- Snappy omnidirectional reading
Product Specification
| Type | Barcode scanner - handheld |
| Colour | Black, yellow |
| Interface Type | Interface cable required |
| Minimum Bar Width | 2.5 mil |
| Scan Element Type | 2D imager |
| Light Source Wave Length | 630-680 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 110 cm |
| Skew (Degrees) | 40 |
| Pitch (Degrees) | 40 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | EAN/JAN, Industrial 2 of 5, Code 39, ISBT 128, IATA, ISBN, GS1 DataBar, QR code, MaxiCode, Aztec code, Code 32, Code 39 Full ASCII, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Australian Post, China Post, Japanese Post, Kix (Netherlands) Post, MacroPDF417, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Swedish Post, Standard 2 of 5, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, Portuguese Post |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Triggered, image capturing, rugged, Datalogic Three Green Lights (3GL) |
| Compliant Standards | FCC Class B certified, VCCI, BSMI, GOST, NOM, IEC 60950, UL 60950, CSA 22.2 No. 60950, ICES-003 Class B, EMC, FCC Part 15, IC, RoHS, Laser Class 2, KCC, REACH, EN 60825-1, IP65 |
| Voltage | DC 5 V |
| Electric Current Required | 335 mA (operating), 180 mA (standby) |
| Width | 7.4 cm |
| Depth | 11 cm |
| Height | 21.2 cm |
| Weight | 330 g |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 2 m |
Features - Datalogic - PD9531-HP
More Details
Product Code
V384285
EAN Code
-
Manufacturer
Datalogic
