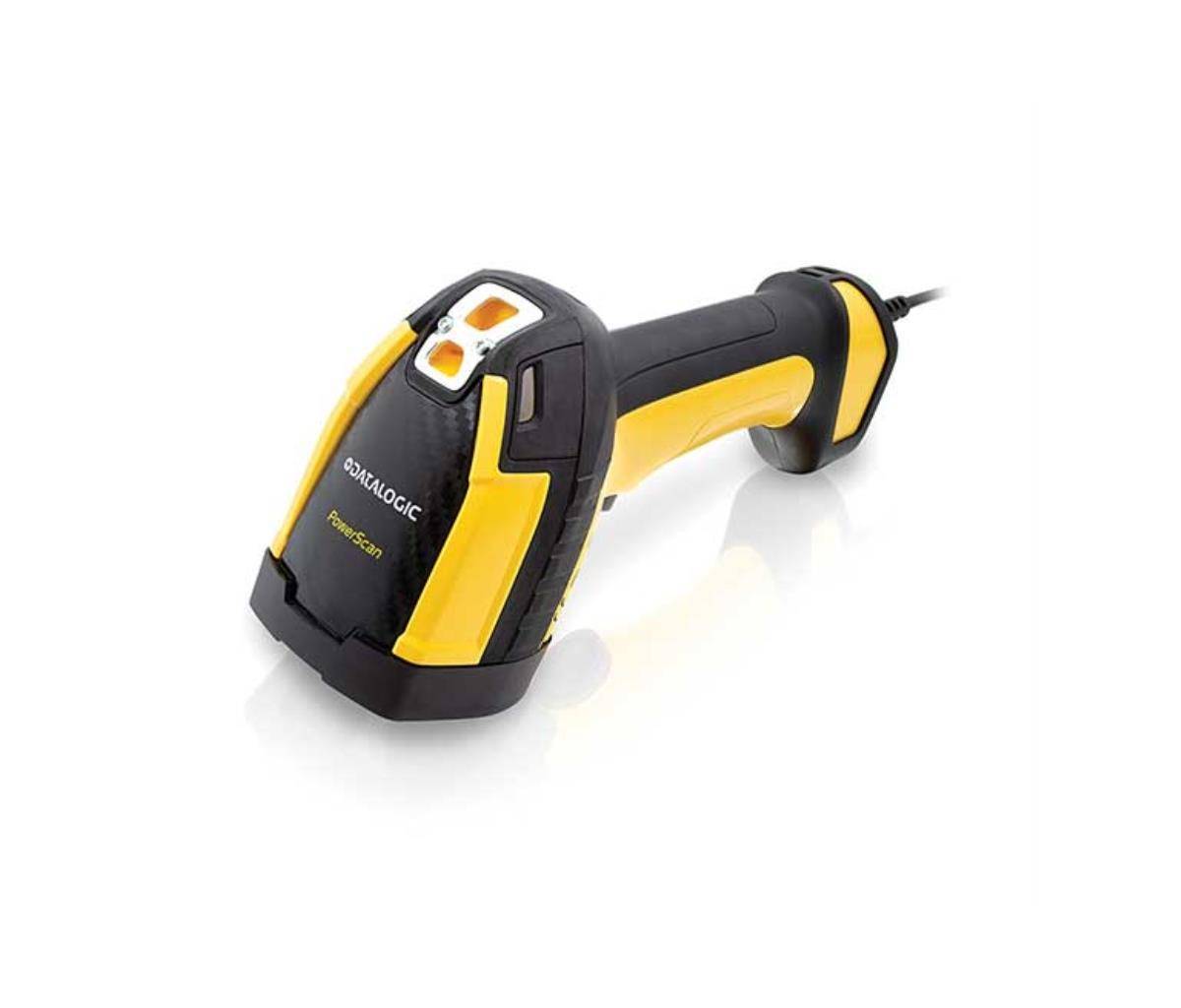

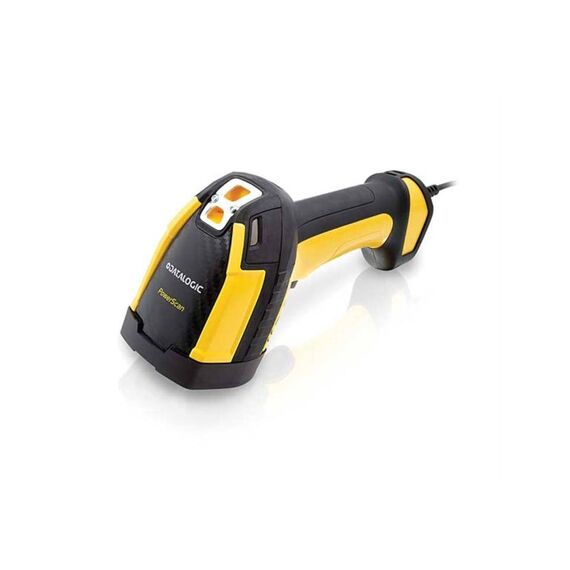

Datalogic PowerScan PD9630-SR / Barcode scanner / handheld / 2D imager / decoded / interface cable required | PD9630-SR
Please sign in so that we can notify you about a reply
Product Specification
| Type | Barcode scanner - handheld |
| Colour | Black, yellow |
| Barcode | Barcode |
| Interface Type | Interface cable required |
| Minimum Bar Width | 3 mil |
| Scan Element Type | 2D imager |
| Sensor Resolution | 1280 x 800 |
| Light Source Wave Length | 630-680 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 175 cm |
| Skew (Degrees) | 52 |
| Pitch (Degrees) | 52 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | GS1 DataBar, QR code, MaxiCode, Aztec code, Code 128, Postnet, Data Matrix, PLANET, Australian Post, China Post, Japanese Post, Kix (Netherlands) Post, Royal Mail, Micro QR code, Swedish Post, China Han Xin Code, Portuguese Post, DotCode |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Triggered, rugged, white LEDs illumination, 20 kV ESD protection (air discharge) |
| Miscellaneous | Miscellaneous |
| Compliant Standards | IP67, IP65, IEC 62471 |
| Power | Power |
| Voltage | DC 5 - 30 V |
| Electric Current Required | 200 mA (operating) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 7.9 cm |
| Depth | 14 cm |
| Height | 19 cm |
| Weight | 318 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 2.5 m |
Features - Datalogic - PD9630-SR
More Details
Product Code
CE37425
EAN Code
-
Manufacturer
Datalogic
