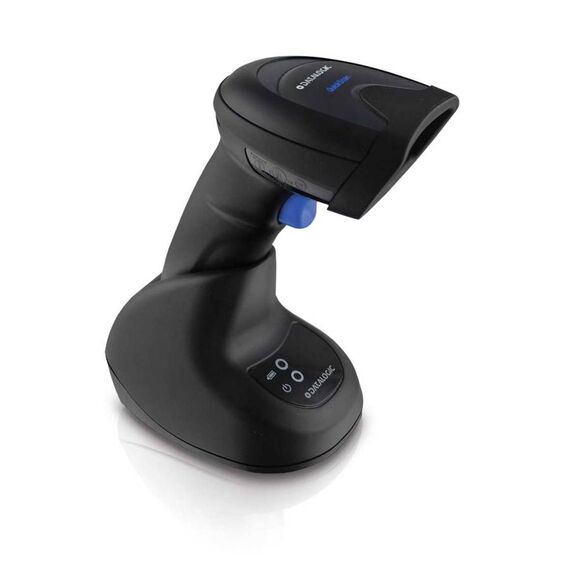

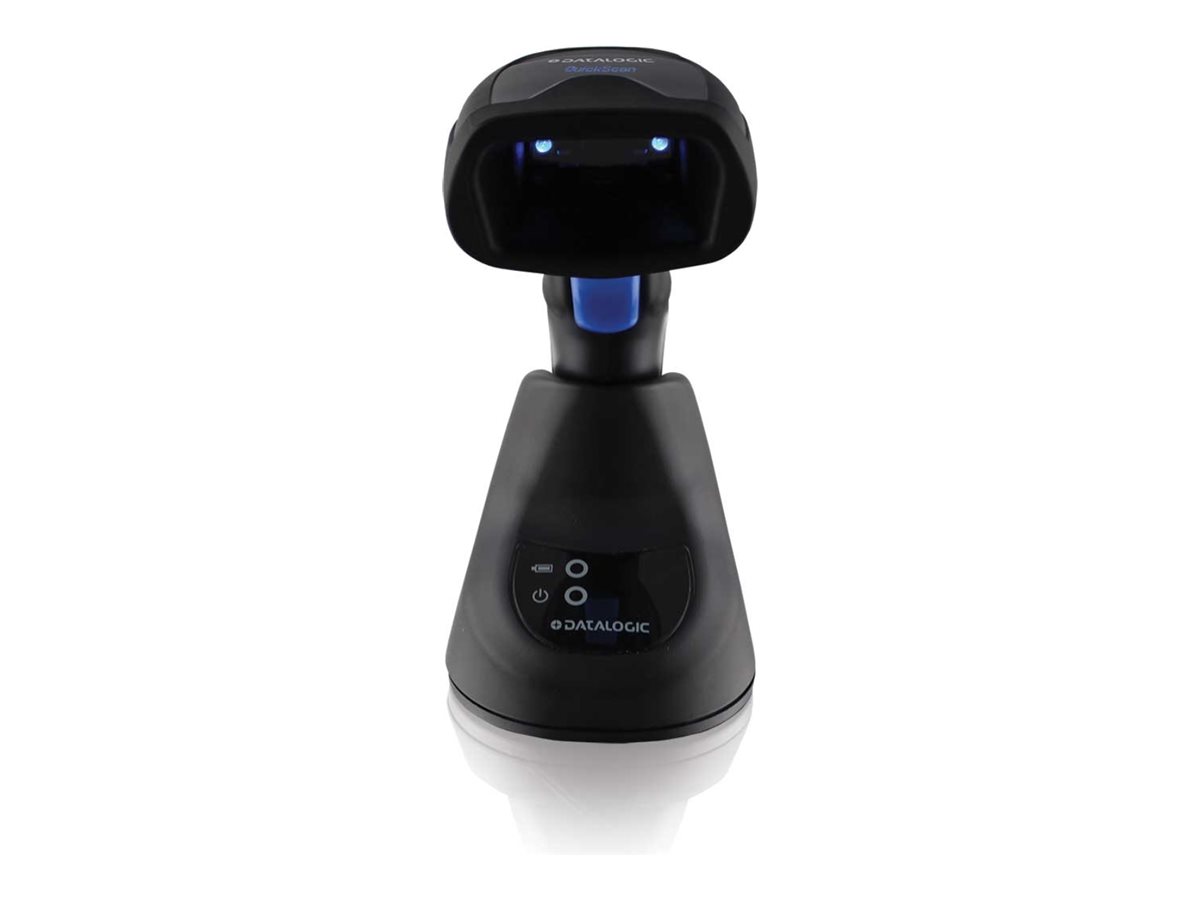

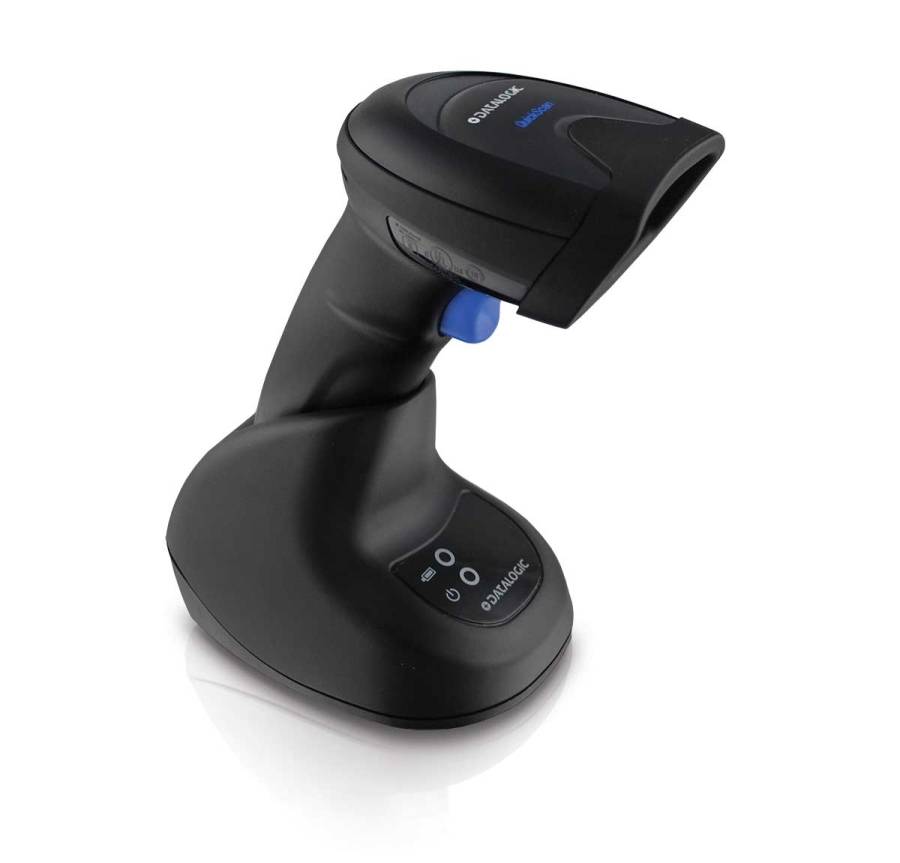

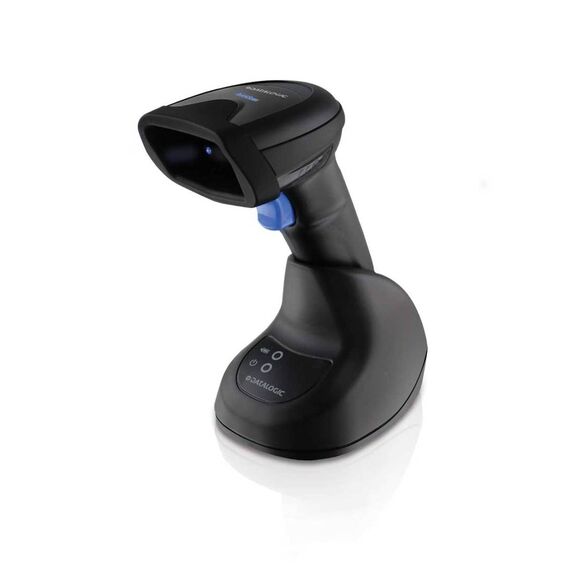

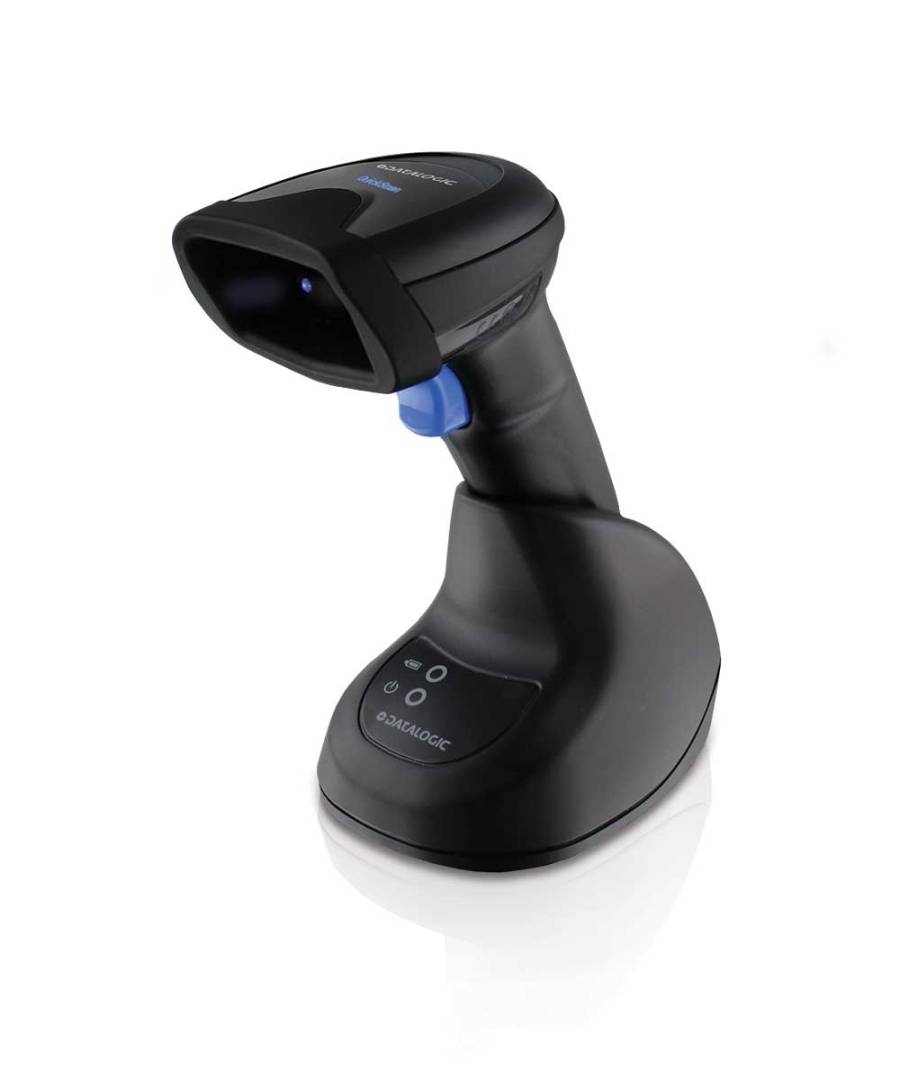

Datalogic QuickScan 2500 Series QM2500 - Kit - barcode scanner - handheld - 2D imager - decoded - RF(433 MHz) | QM2500-BK-433K1
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Features
- Versatile scanning capabilities
Equipped to handle a wide array of barcodes ranging from Australian Post to QR codes, and even specialized formats like Digimarc Barcode, the Datalogic QuickScan 2500 Series ensures comprehensive scanning solutions for diverse industry needs. - Advanced technology integration
Featuring Datalogic's exclusive Green Spot technology for good-read feedback, Motionix motion-sensing technology for seamless scanning mode transitions, and the robust STAR Cordless System for reliable wireless connectivity, this scanner is designed for efficiency and ease of use. - Durable design
Built to withstand the rigors of daily use, the scanner offers 16 kV ESD protection and a drop specification of 1.5 m to concrete, alongside an IP52 rating for dust and water resistance, ensuring long-term durability and reliability. - Optimal performance
With a maximum working distance of 51 cm and a minimum bar width detection of 3 mil, combined with a 1280 x 800 sensor resolution, the QM2500 delivers precise and efficient scanning performance in various operational conditions. - User-friendly features
The device enhances user experience with intuitive features like LED indicators and beepers for successful scans, and a comfortable handheld form factor, making it an ideal choice for extended use in retail, warehouse, and logistics environments.
Special Fetures
- Comprehensive barcode support including Aztec, Data Matrix, and QR codes
- Equipped with Datalogic's patented Green Spot and Motionix technologies
- Wireless connectivity with Datalogic STAR Cordless System
- Robust design with 16 kV ESD protection and a 1.5 m drop tolerance
- High-resolution 1280 x 800 2D imager for precise scanning
Product Specification
| Type | Barcode scanner - handheld |
| Colour | Black |
| Barcode | |
| Interface Type | RF(433 MHz) |
| Minimum Bar Width | 3 mil |
| Scan Element Type | 2D imager - Red LED |
| Sensor Resolution | 1280 x 800 |
| Light Source Wave Length | 617 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 51 cm |
| Skew (Degrees) | 65 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | EAN/JAN, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australian Post, British Post, China Post, Japanese Post, Kix (Netherlands) Post, MacroPDF417, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, UPC A Composite, UPC E Composite, DotCode, IMB, Digimarc Barcode |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| OK Notification | Beeper, LED indicator |
| Features | Green Spot technology, Datalogic STAR Cordless System, Datalogic Motionix technology, 16 kV ESD protection (air discharge) |
| Networking | |
| Wireless Connectivity | RF |
| Expansion / Connectivity | |
| Interfaces | 1 x USB |
| Miscellaneous | |
| Included Accessories | Cradle |
| Cables Included | 1 x USB cable - external |
| Compliant Standards | IP52, China RoHS, IEC 62471, EU RoHS |
| Power | |
| Electric Current Required | 400 mA (operating), 90 mA (standby) |
| Battery | 1 x Lithium Ion |
| Software | |
| Software Included | Datalogic Aladdin, OPOS/JavaPOS Drivers |
| Dimensions & Weight | |
| Width | 6.8 cm |
| Depth | 10.7 cm |
| Height | 15.9 cm |
| Weight | 206.5 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 1.5 m to concrete |
Χαρακτηριστικά
Product Code
07:137653
EAN Code
5715063258415
Manufacturer
Datalogic
