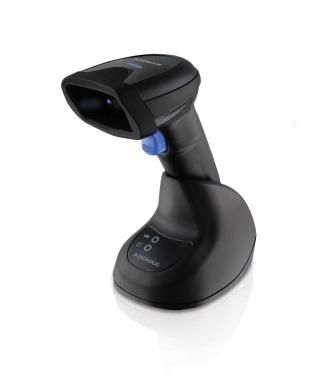

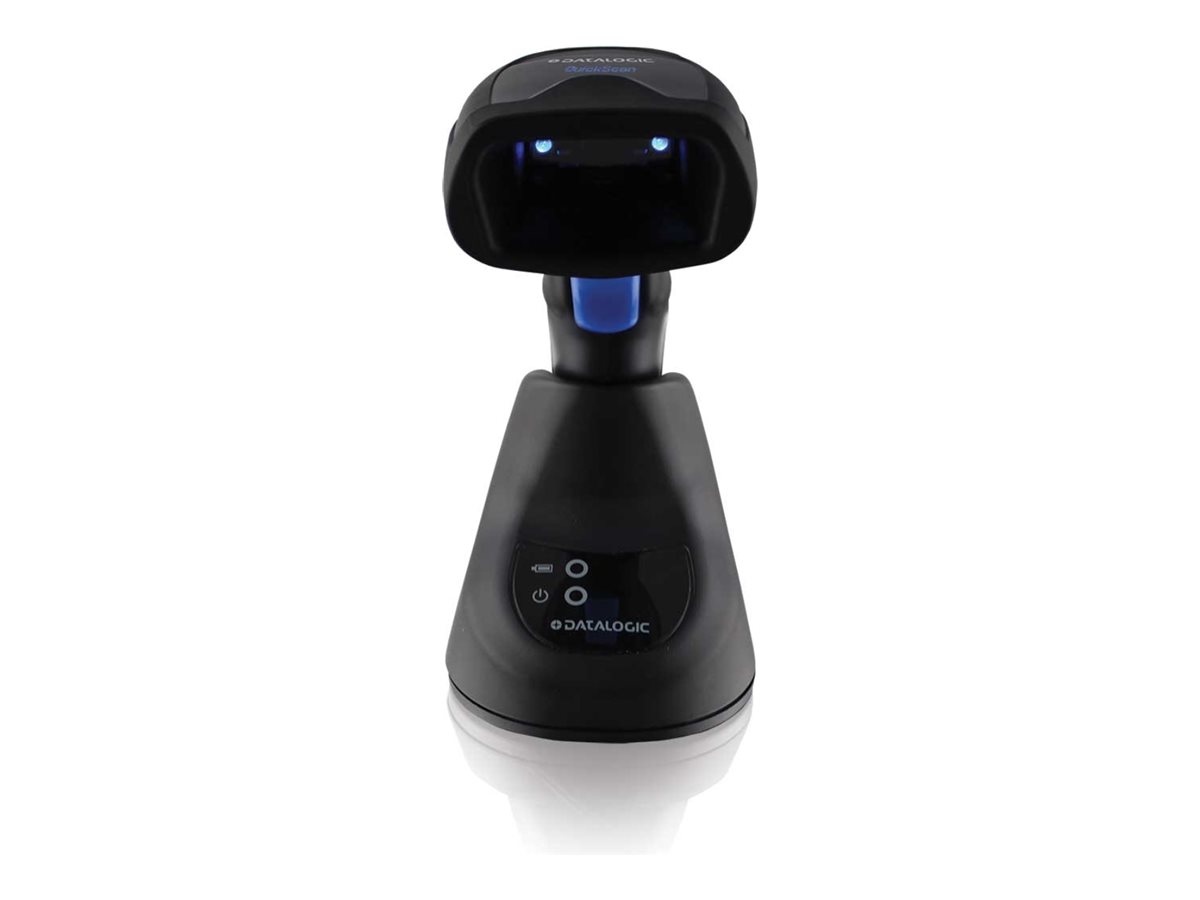

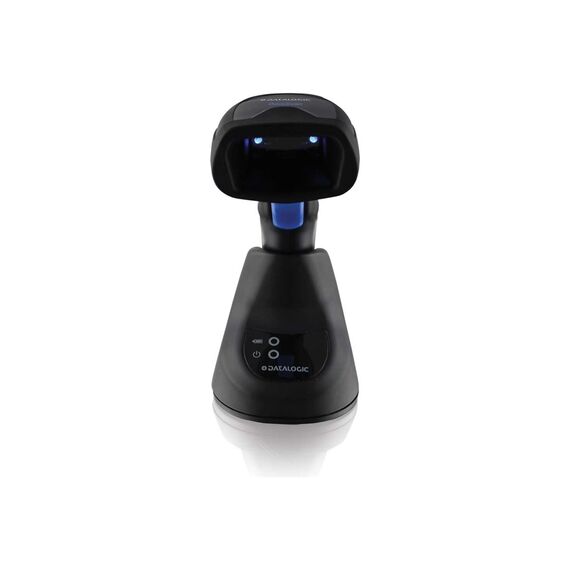

Datalogic QuickScan 2500 Series QM2500 - Kit - barcode scanner - handheld - 2D imager - decoded - RF(433 MHz) | QM2500-BK-433
Please sign in so that we can notify you about a reply
Product Specification
| Type | Barcode scanner - handheld |
| Colour | Black |
| Barcode | |
| Interface Type | RF(433 MHz) |
| Minimum Bar Width | 3 mil |
| Scan Element Type | 2D imager - Red LED |
| Sensor Resolution | 1280 x 800 |
| Light Source Wave Length | 617 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 51 cm |
| Skew (Degrees) | 65 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | EAN/JAN, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australian Post, British Post, China Post, Japanese Post, Kix (Netherlands) Post, MacroPDF417, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, UPC A Composite, UPC E Composite, DotCode, IMB, Digimarc Barcode |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| OK Notification | Beeper, LED indicator |
| Features | Green Spot technology, Datalogic STAR Cordless System, Datalogic Motionix technology, 16 kV ESD protection (air discharge) |
| Networking | |
| Wireless Connectivity | RF |
| Expansion / Connectivity | |
| Interfaces | 1 x USB |
| Miscellaneous | |
| Included Accessories | Cradle |
| Cables Included | 1 x USB cable - external |
| Compliant Standards | IP52, China RoHS, IEC 62471, EU RoHS |
| Power | |
| Electric Current Required | 400 mA (operating), 90 mA (standby) |
| Battery | 1 x Lithium Ion |
| Software | |
| Software Included | Datalogic Aladdin, OPOS/JavaPOS Drivers |
| Dimensions & Weight | |
| Width | 6.8 cm |
| Depth | 10.7 cm |
| Height | 15.9 cm |
| Weight | 206.5 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 1.5 m to concrete |
Features - Datalogic - QM2500-BK-433
More Details
Product Code
CF69197
EAN Code
-
Manufacturer
Datalogic
