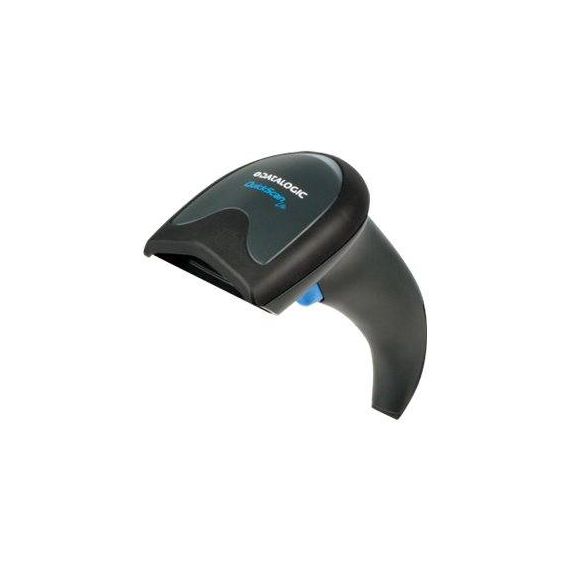

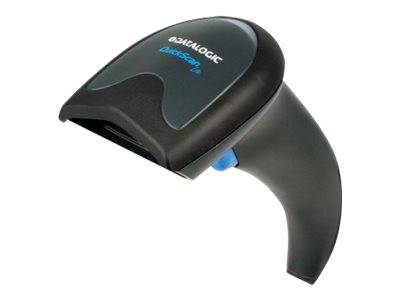

Datalogic QuickScan Lite QW2420 / Barcode scanner / handheld / 2D imager / decoded / USB / inc. Coiled USB Cable & Stand | QW2420-BKK1S
Datalogic QuickScan Lite QW2420 / Barcode scanner / handheld / 2D imager / decoded / USB / inc. Coiled USB Cable & Stand | QW2420-BKK1S
Description The QuickScan Lite QW2400 2D area imager is an entry-level scanner specifically designed for reading long and truncated 1D codes and larger 2D codes from close distance. The QW2400 imager has an extra-wide Field of View (FOV) which captures these challenging 1D and 2D codes at a nominal distance using different scan angles, meeting the scanning needs in retail, light manufacturing, document/bill processing and banking/finance. The QuickScan Lite 2D imager is the affordable area imager with excellent performance. Datalogic QuickScan Lite QW2420 / Barcode scanner | QW2420-BKK1SSpecial Features
Product features
|
Product Specification
Type | Barcode scanner - handheld |
Colour | Black |
Interface Type | USB |
Minimum Bar Width | 4 mil |
Scan Element Type | 2D imager |
Sensor Resolution | 640 x 480 |
Light Source Wave Length | 350-770 nm |
Max Working Distance | 30 cm |
Skew (Degrees) | 65 |
Pitch (Degrees) | 65 |
Print Contrast Signal (PCS) | 20% |
Decode Capability | EAN/JAN, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australian Post, British Post, Canadian Post, China Post, Japanese Post, Kix (Netherlands) Post, MacroPDF417, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, Intelligent Mail Barcode, UPC-A / E, Aztec Mesa |
TTL Decoding | Decoded |
Connectivity Technology | Wired |
OK Notification | Beeper, LED indicator |
Features | ESD (electrostatic discharge) safe, Green Spot technology |
Interfaces | 1 x USB |
Included Accessories | Stand |
Cables Included | 1 x USB cable - external |
Compliant Standards | RoHS, IP42, China RoHS |
Electric Current Required | 90 mA (standby), 170 mA (typical) |
Width | 7.1 cm |
Depth | 6.6 cm |
Height | 17.1 cm |
Weight | 120 g |
Service & Support | Limited warranty - 3 years |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 0 - 95% (non-condensing) |
Drop Specification | 1.5 m to concrete |
